7 User Interface Field Settings
7.1 Introduction
During installation, the Matrix Mono’s settings and parameters should be configured by the installer to suit the
installation configuration, climate conditions and end-user preferences. The relevant settings are accessible
and programmable through the FOR SERVICEMAN menu on the Matrix Mono’s user interface. The user interface
menus and settings can be navigated using the user interface’s touch-sensitive keys, as detailed in Table 3-7.1.

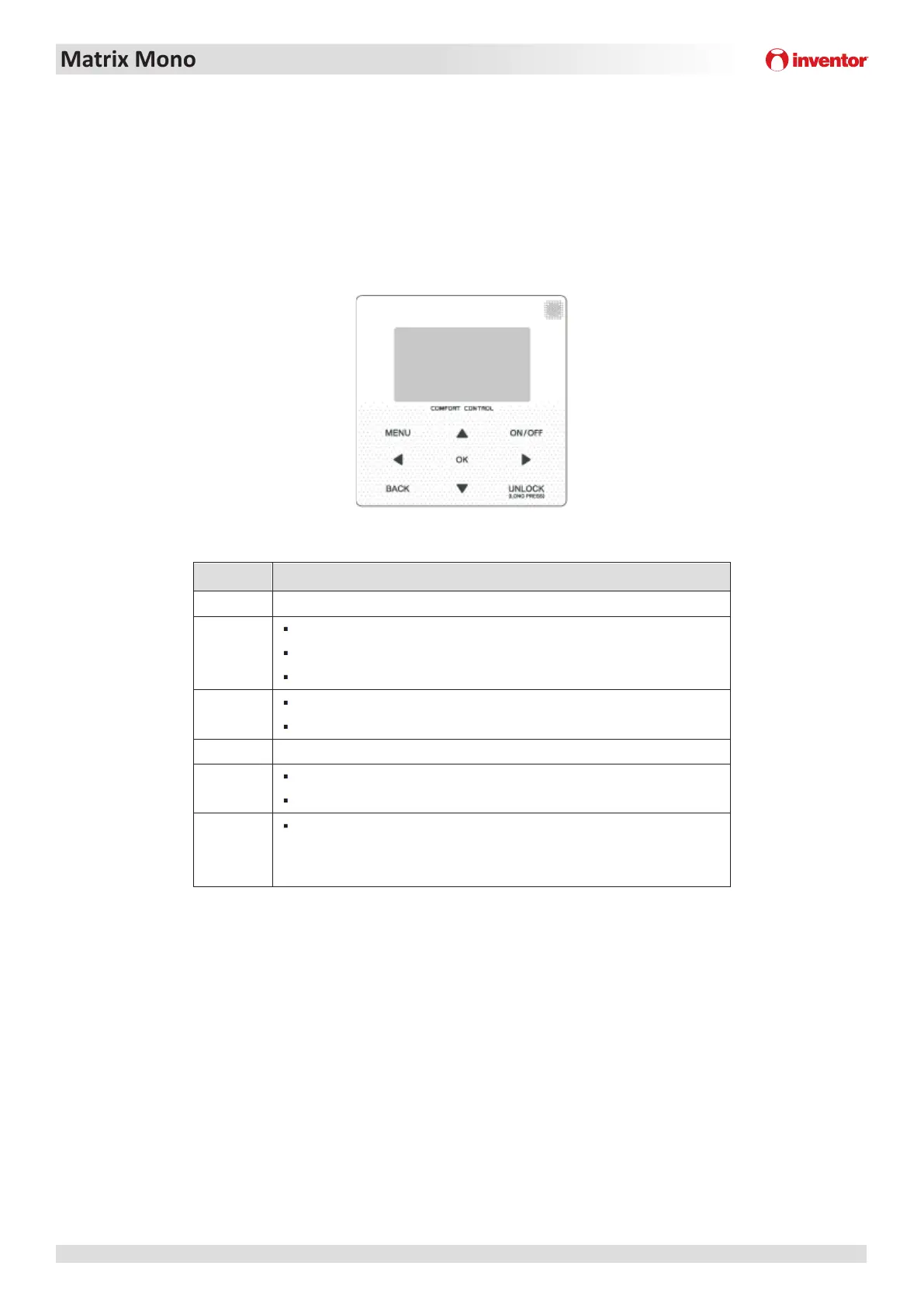

Figure 3-7.1: User interface
Table 3-7.1: User interface keys
Keys Function
MENU Go to the menu structure(on the home page)
◄► ▼ ▲
Navigate the cursor on the display
Navigate in the menu structure
Adjust settings
ON/OFF
Turn on/off the space heating/cooling operation or DHW mode
Turn on/off functions in the menu structure
BACK Come back to the up level
UNLOCK
Long press for unlock/lock the controller
Unlock /lock some functions such as “DHW temperature adjusting”
OK
Go to the next step when programming a schedule in the menu
structure and confirm a selection to enter in the submenu of the menu
structure.
To Next Page
