INVENTOR ATM10S3 User Manual

63
Matrix Mono
Part 3 - Installaon and Field Sengs
Matrix Mono
62
Inventor Matrix Mono Engineering Data Book
1 Preface to Part 3
1.1 Notes for Installers Boxes
The information contained in this Engineering Data Book may primarily be of use during the system design stage of
a Inventor Matrix Mono project. Additional important information which may primarily be of use during field installation
has been placed in boxes, such as the example below, titled “Notes for installers”.
1.2 Definitions
In this Engineering Data Book, the term “applicable legislation” refers to all national, local and other laws, standards, codes,
rules, regulations and other legislation that apply in a given situation.
1.3 Precautions
All system installation including installation of water piping and electrical works must only be carried out by competent
and suitably qualified, certified and accredited professionals and in accordance with all applicable legislation.
 Notes for installers boxes contain important information which may primarily be of use during field installation,
rather than during desk-based system design.
Notes for installers

Matrix Mono
63
Part 3 - Installation and Field Settings
2 Installation
2.1 Acceptance and Unpacking
2.2 Hoisting

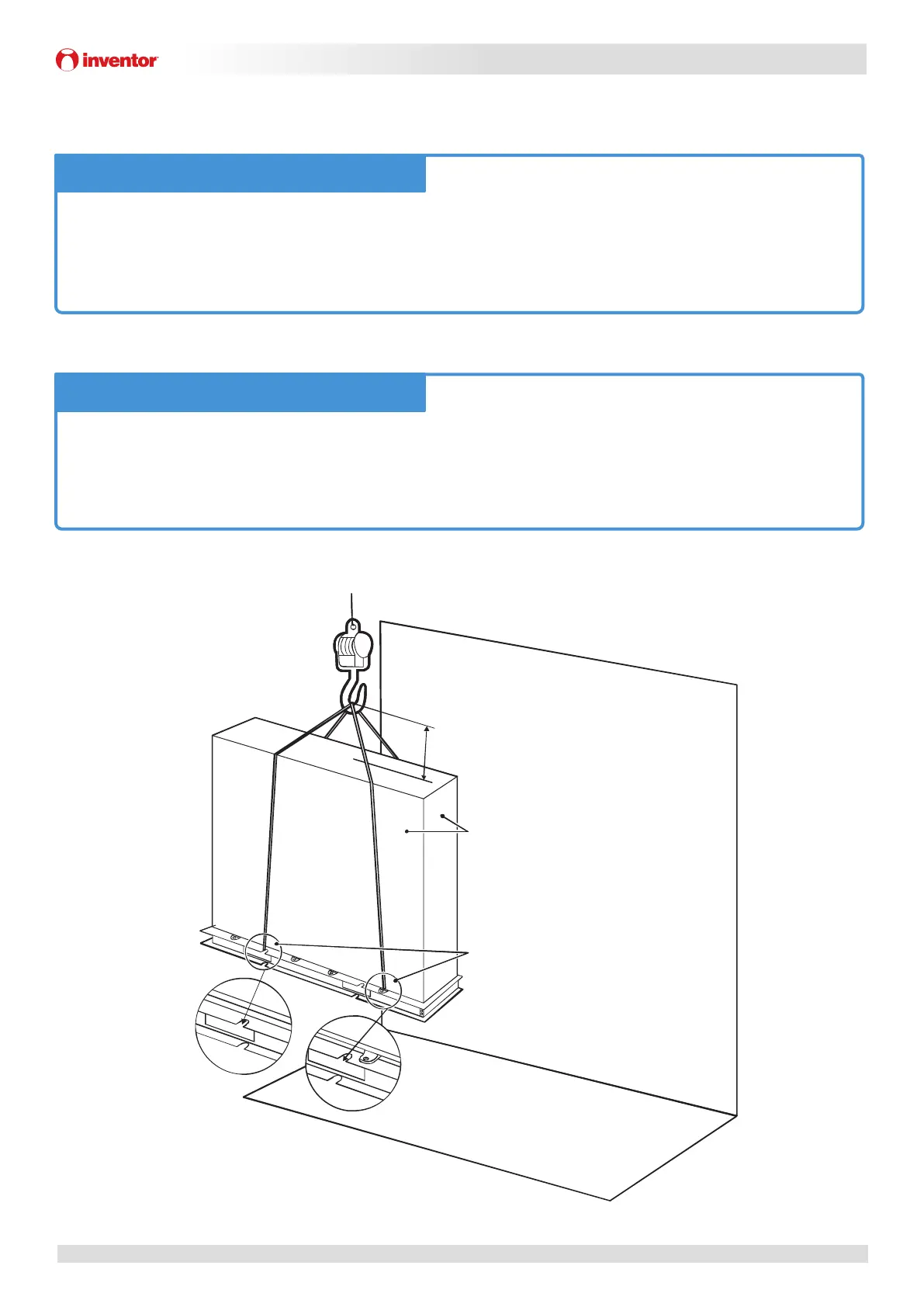

Figure 3-2.1: Hosting the unit
The hook and barycenter of
the unit should be on a line
in vertical direction to
prevent improper inclination
Make the rope go through
the lifting holes from both
the right and left sides in the
wooden collet
≥1000mm
 When units are delivered check whether any damage occurred during shipment. If there is damage to the
surface or outside of a unit, submit a written report to the shipping company.
 Check that the model, specifications and quantity of the units delivered are as ordered.
 Check that all accessories ordered have been included. Retain the Owner's Manual for future reference.
Notes for installers

 Do not remove any packaging before hoisting. If units are not packaged or if the packaging is damaged, use
suitable boards or packing material to protect the units.
 Hoist one unit at a time, using two ropes to ensure stability.
 Keep units upright during hoisting, ensuring that the angle to the vertical does not exceed 30°.
Notes for installers

