10 | Optidrive CoolVert User Guide | Version 1.00 www.invertekdrives.com
3
Installation

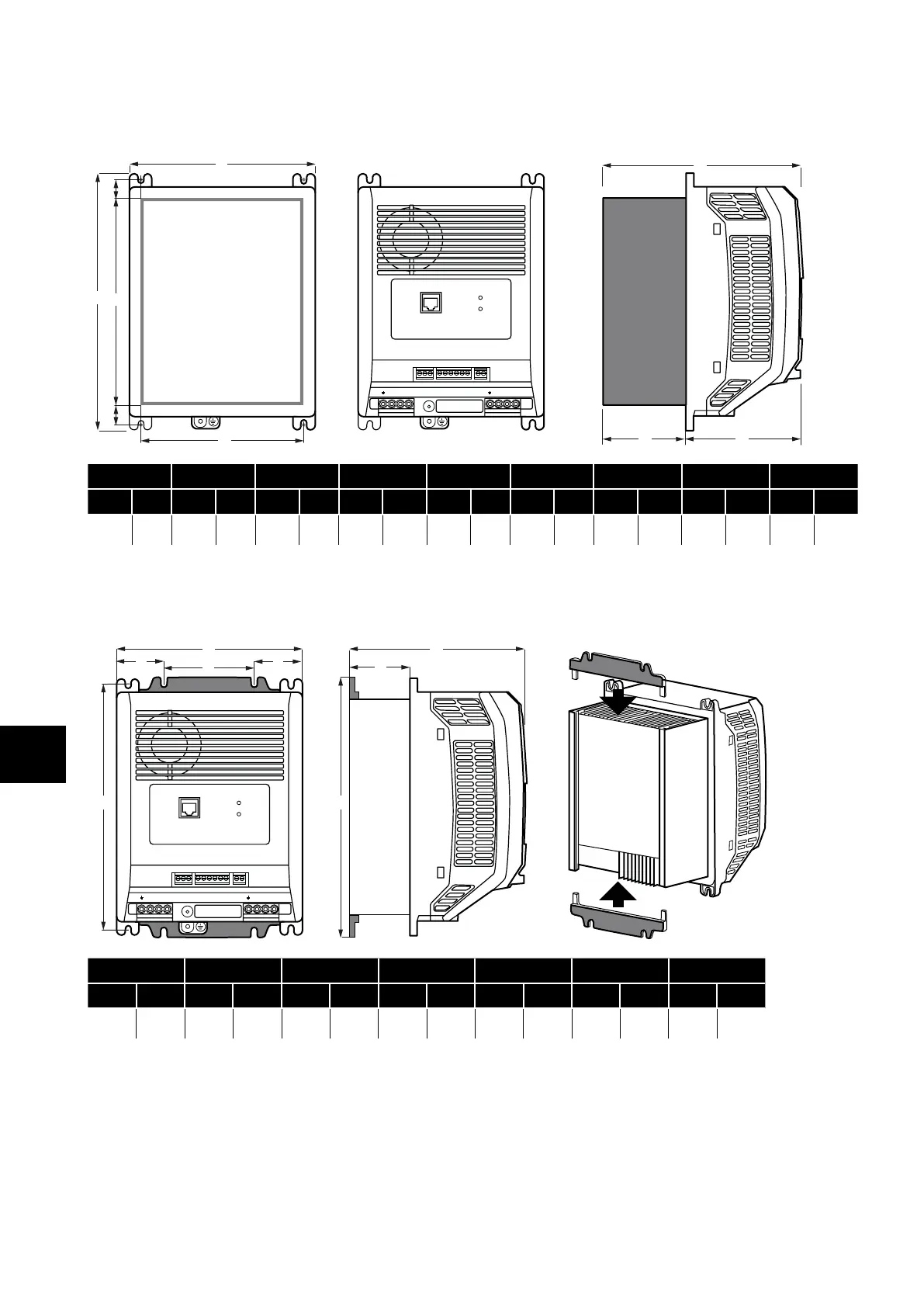

3.1.6. Through panel mounting
Through panel mounting is the most efficient installation in terms of both panel space and thermal management. With the heatsink
protruding through the back of the electrical panel, the heat generated by the drive will be exhausted outside of the electrical panel.
1 2 3 4 5 6 7 8 9 10 11
STAT US 1
STAT US 2
L1 L2 L3 U V WEMC
C
B
D
F
A
E
G
HJ
A B C D E F G H J
mm in mm in mm in mm in mm in mm in mm in mm in mm in
226.3 8.9 16.1 0.63 183 7. 2 16.1 0.63 165.3 6.5 14 5 5.7 176.2 6.9 72.7 2.9 103.5 4.1
3.1.7. Panel mounting (with the panel mounting kit)
If the installation does not lend itself to through panel mounting, the drive can be mounted to a back-plate of a panel using the
optional panel mounting kit.
FA
B
B
CE
1 2 3 4 5 6 7 8 9 10 11
STAT US 1
STAT US 2
L1 L2 L3 U V WEMC
D
G
A B C D E F G
mm in mm in mm in mm in mm in mm in mm in
216 8.5 42.6 1.67 80 3.15 165.3 6.5 73.7 2.9 228 8.98 176.2 6.9
