Installation

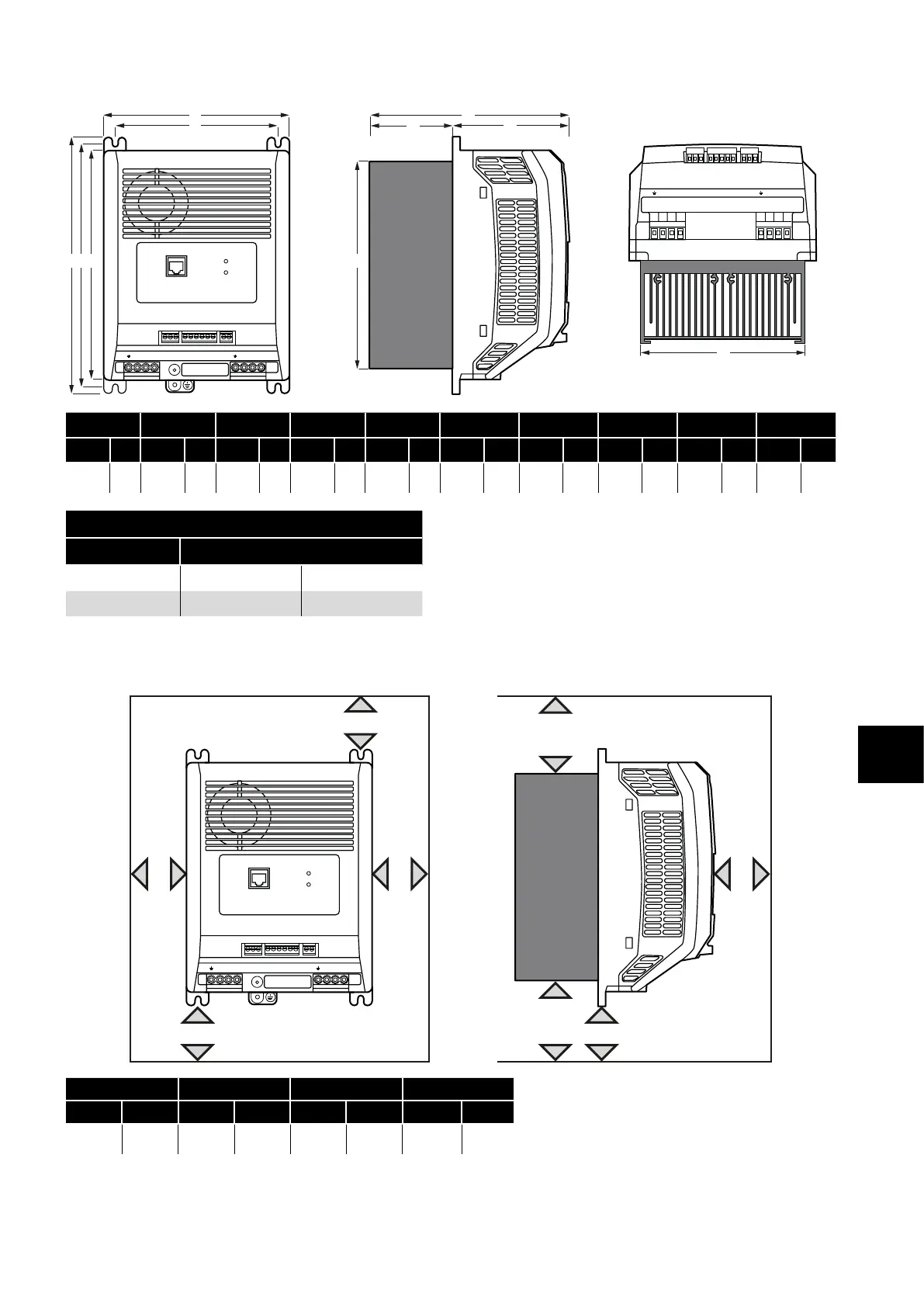

3.1.4. Drive Dimensions
L1 L2 L3 U V WEMC
+
+
+
+
ABC F
D
G
EH
J
K
1 2 3 4 5 6 7 8 9 10 11
STAT US 1
STAT US 2
L1 L2 L3 U V WEMC
A B C D E F G H J K
mm in mm in mm in mm in mm in mm in mm in mm in mm in mm in
226.3 8.9 215 . 2 8.5 201.4 7. 9 165.3 6.5 144.8 5.7 182 7. 2 176.2 6.9 72.7 2.9 103.5 4 .1 14 5 5.7
Tightening Torques
Required Torque
Control Terminals 0.5 Nm 4.5 lb-in
Power Terminals 1 Nm 9 lb-in
3.1.5. Ventilation and Clearance
In order for the drive to maintain t’s temperature, a minimum clearance is required around the drive as shown in the diagram below:
X
X X
Z
Z
W
W Y
1 2 3 4 5 6 7 8 9 10 11
STAT US 1
STAT US 2
L1 L2 L3 U V WEMC
W X Y Z*
mm in mm in mm in mm in
20 0.787 78 3.07 10 0.394 100 3.94
The losses generated by each drive are explained in section 3.1.9. Cold-plate Capacity Calculation.
NOTE Value 'Z' is not applicable to the coldplate variant. These dimensions are the absolute minimum recommended clearances to
allow sufficient air flow. The enclosure itself must be significantly wider or taller than the values given above in at least one direction.
