INSTALLATION
17
Pulsar extractor fan | Installation and operation instructions

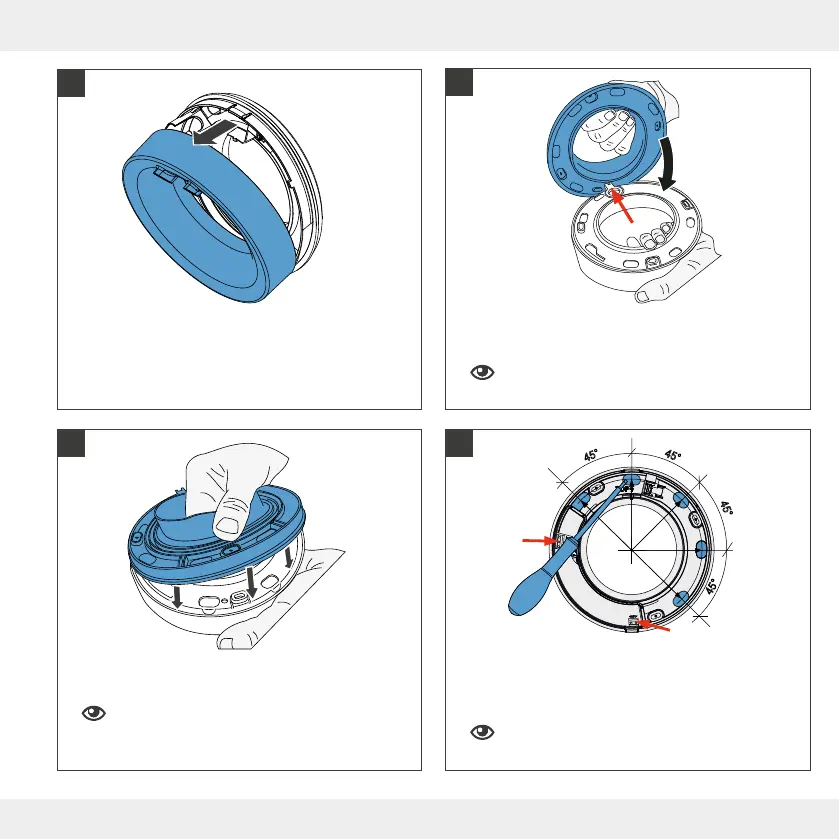

► Press the rubber seal rmly onto the base plate of the
fan housing.
Starting on the side of the integrated switch
pressing down on the opposite side.
► Attach the rubber seal (from the accessory pack) to
the back of the fan housing.
First carefully place the switch (red arrow) in the
opening provided.
► Lift the cover of the fan housing from the top to the
front.
► Create a cable gland for the connection cable in the
rubber seal at one of the 5 cable inlets with the aid of
a suitable tool.
Place the cable gland near the respective
terminal.
45°
45°
45°
45°
AC 230 V
DC 12 V
!
3
!
!
4
5 6
