INVT GD300-037G-4 User Manual

Goodrive300 Series VFD Basic operation instruction
154

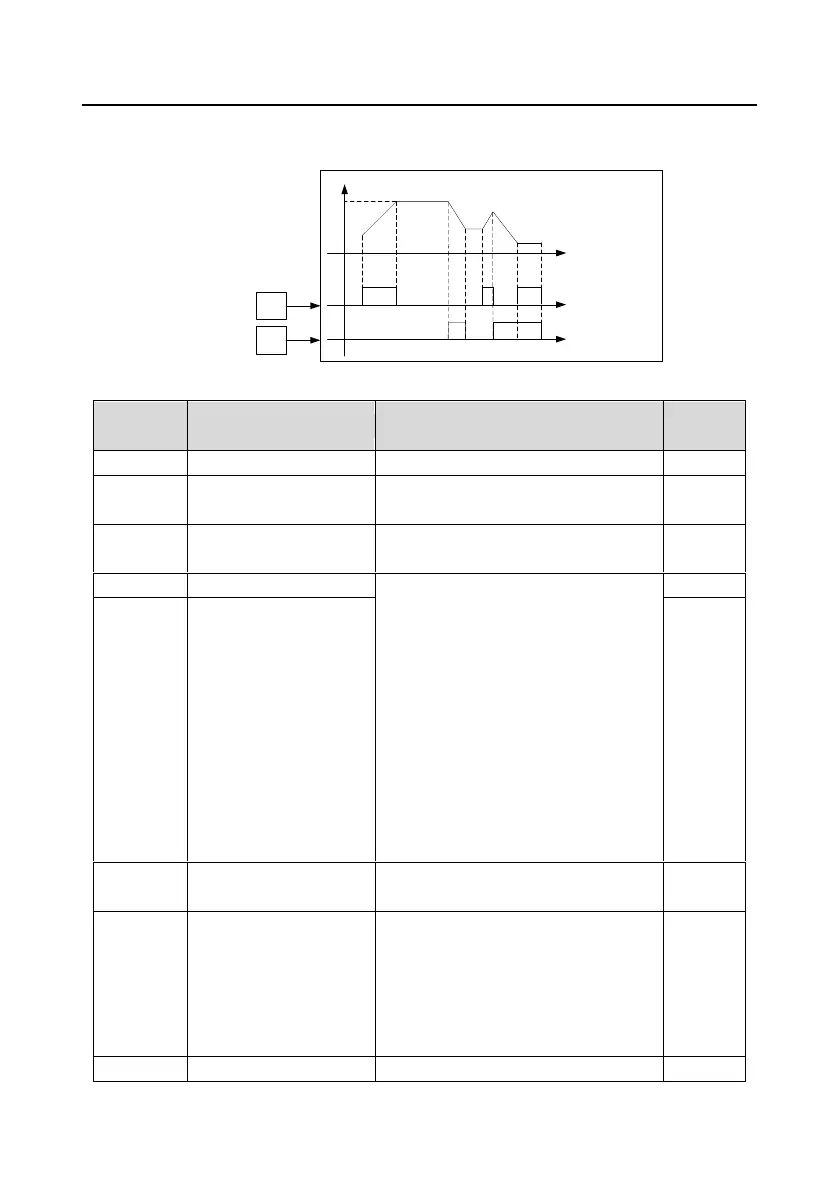

When select multi-function terminal UP (10) and DOWN (11) to set the internal assistant frequency,
P08.44 and P08.45 can be set to increase or decrease the set frequency quickly.
Sx
Sy
Up terminal function
selection=10
DOWN terminal
function selection=11
UP terminal state
DOWN terminal state
T
F
T
T
UP terminal frequency increasing integral rate P08.45
DOWN terminal frequency increasing integral rate
P08.46
Related parameters
Function
code
Name
Detailed instruction of parameters
Default
value
P00.03
Max. output frequency
P00.04–400.00Hz
50.00Hz
P00.04
Upper limit of the running
frequency
P00.05–P00.03
50.00Hz
P00.05
Lower limit of the running
frequency
0.00Hz–P00.04
0.00Hz
P00.06
A frequency command
0: Keypad
1: AI1
2: AI2
3: AI3
4: High-speed pulse HDI
5: Simple PLC program
6: Multi-step speed running
7: PID control
8: Modbus communication
9: PROFIBUS/CANopen communication
10: Ethernet communication
11: Reserved
0
P00.07
B frequency command
0
P00.08
B frequency command
reference
0: Max. output frequency
1: A frequency command
0
P00.09
Combination of setting
sources
0: A
1: B
2: (A+B) combination
3: (A-B) combination
4: Max(A,B) combination
5: Min(A,B) combination
0
P05.01–P0
Multi-function digital input
10: Increasing frequency setting (UP)
