INVT Goodrive 300-16

Goodrive300-16 special inverter for HVAC Appendix B
127

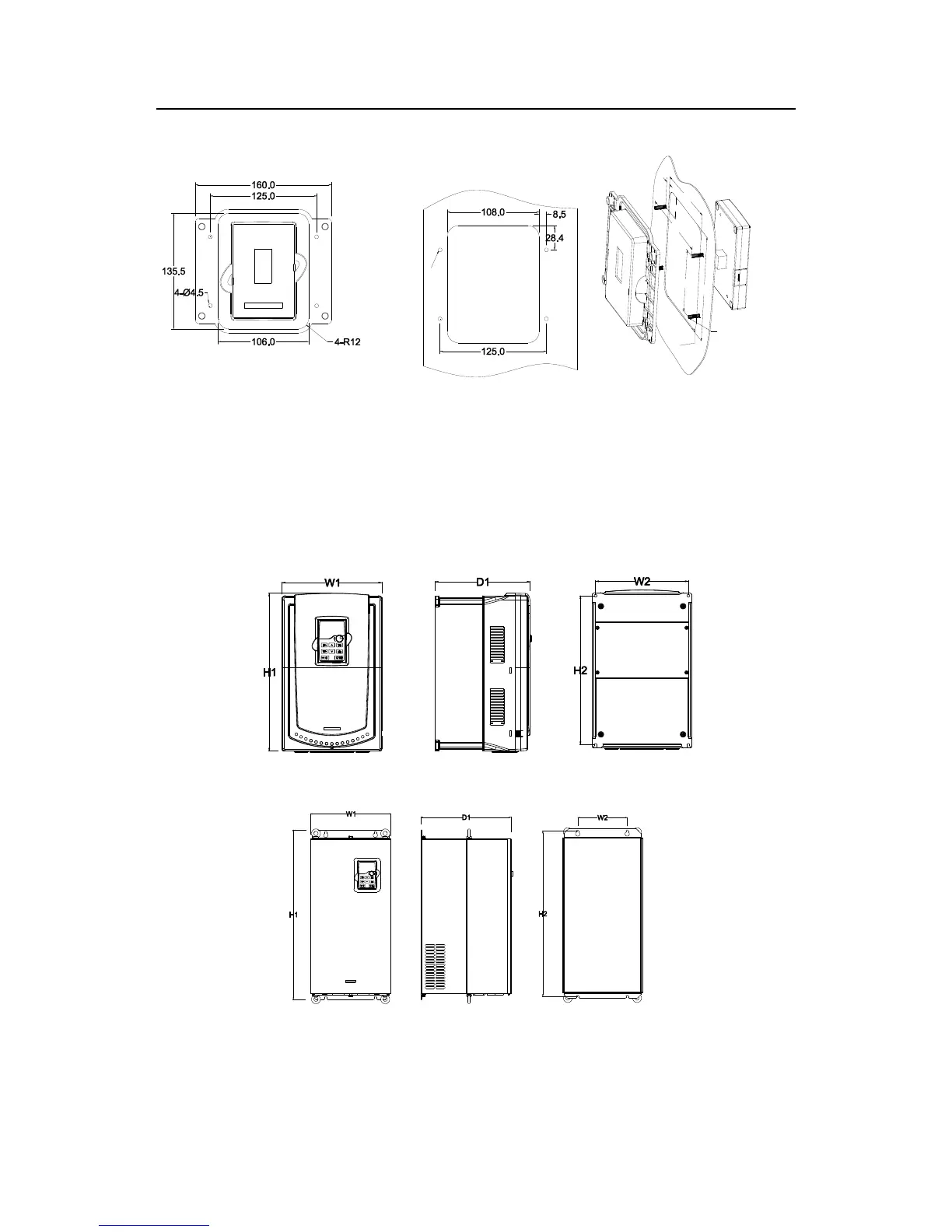

B.1.3 Installation bracket (optional)
4-M4x15(riveting screw)
125
81
108
137.5
4-R13
Installation bracket
Installation dimension
28.4
8.5
4-M4x15(riveting screw)
Note: It is necessary to use M3 screw or installation bracket to fix the external keypad. The
installation bracket for inverters of 380V 1.5~30kW and 500V 4~18.5kW is optional but it is
standard for the inverters of 380V 37~500kW, 500V 22~500kW and 660V.
B.2 Dimensions for wall installation
Wall installation of 380V 4~30kW inverters
Wall installation of 380V 37~110kW inverters
