Goodrive300-16 special inverter for HVAC Appendix C
132

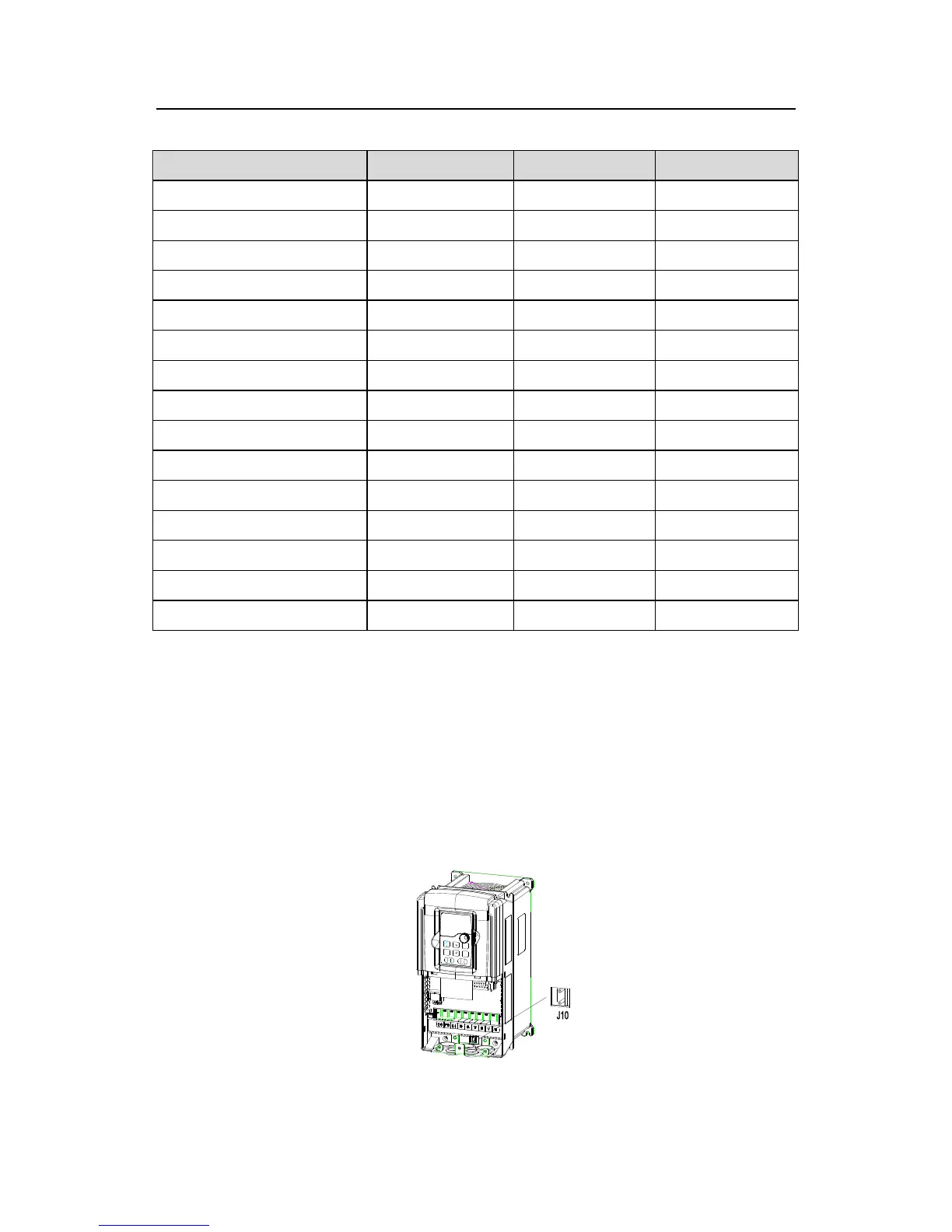

C.2.1 Reactor selection
Model
Input reactor
DC reactor
Output reactor
GD300-16-004G/5R5P-4
ACL2-004-4
/
OCL2-004-4
GD300-16-5R5G/7R5P-4
ACL2-5R5-4
/
OCL2-5R5-4
GD300-16-7R5G/011P-4
ACL2-7R5-4
/
OCL2-7R5-4
GD300-16-011G/015P-4
ACL2-011-4
/
OCL2-011-4
GD300-16-015G/018P-4
ACL2-015-4
/
OCL2-015-4
GD300-16-018G/022P-4
ACL2-018-4
/
OCL2-018-4
GD300-16-022G/030P-4
ACL2-022-4
/
OCL2-022-4
GD300-16-030G/037P-4
ACL2-030-4
/
OCL2-030-4
GD300-16-037G/045P-4
ACL2-037-4
DCL2-037-4
OCL2-037-4
GD300-16-045G/055P-4
ACL2-045-4
DCL2-045-4
OCL2-045-4
GD300-16-055G/075P-4
ACL2-055-4
DCL2-055-4
OCL2-055-4
GD300-16-075G/090P-4
ACL2-075-4
DCL2-075-4
OCL2-075-4
GD300-16-090G/110P-4
ACL2-090-4
DCL2-090-4
OCL2-090-4
GD300-16-110G/132P-4
ACL2-110-4
DCL2-110-4
OCL2-110-4
GD300-16-132G/160P-4
ACL2-132-4
DCL2-132-4
OCL2-132-4
Note:
1. The rated derate voltage of the input reactor is 2%±15%.
2. The power factor of the input side is above 90% after installing DC reactor.
3. The rated derate voltage of the output reactor is 1%±15%.
4. Above options are external, the customer should indicate when purchasing.
C.3 Filter (optional)
Goodrive300-16 series inverters have embedded C3 filters which can be connected by J10.
Note: Do not connect C3 filters in IT power system.
