Goodrive300-16 special inverter for HVAC Commissioning guidelines
12
Terminal
Terminal name
Function
≤75kW
≥90kW
unit terminal 1
PB and (+) are connected with the terminals of
braking resistor.
(-)
/
Braking unit
terminal 2
PB
Braking
resistor 2
/
PE
380V: the grounding resistor is
less than 10Ω
Protective grounding terminals, every machine
is provided 2 PE terminals as the standard
configuration. These terminals should be
grounded with proper techniques.
3.2 Terminals of control circuit

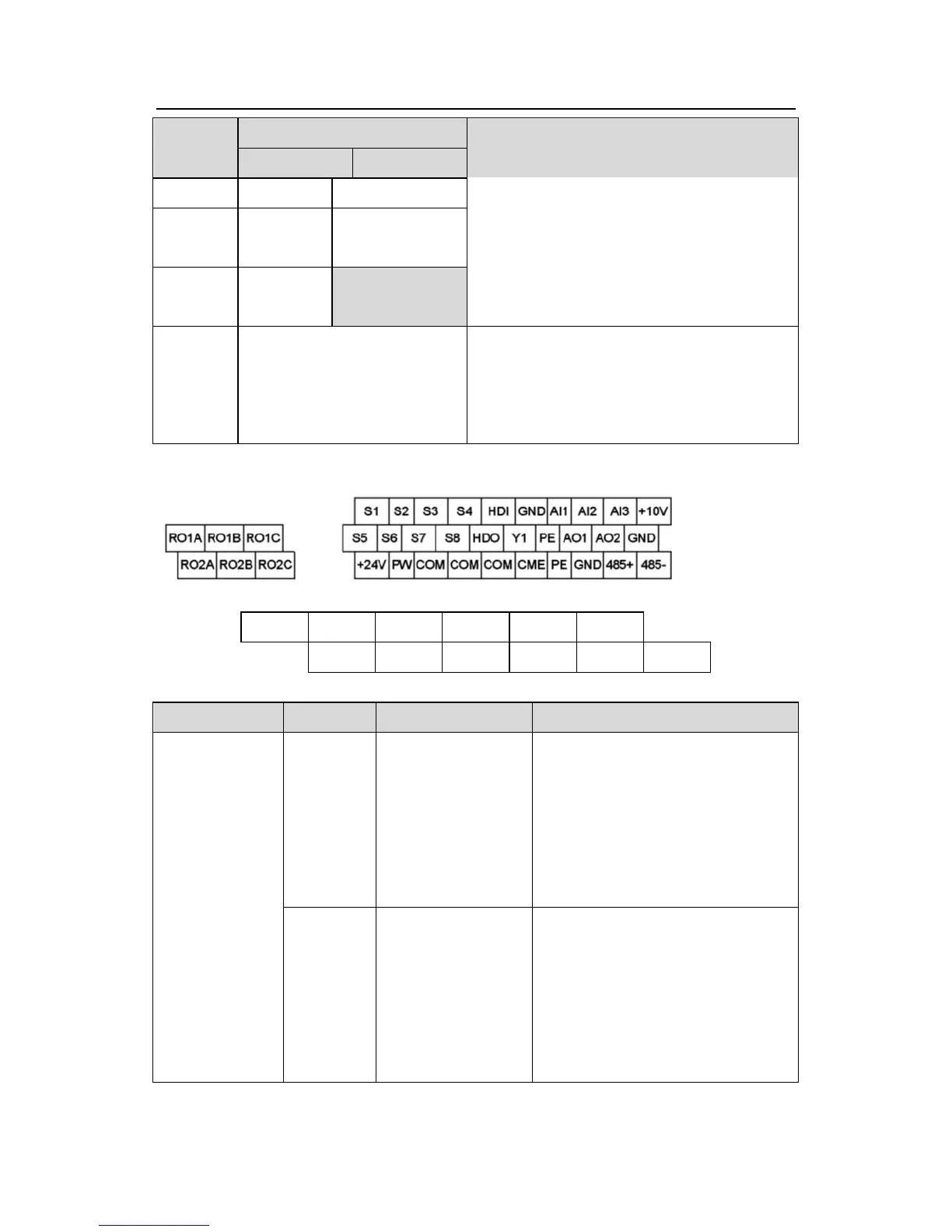

Fig 3-2 Terminals of control circuit
R03A
R03C
R04A
R04C
R05A
R05C
R06A
R06C
R07A
R07C
R08A
R08C
Fig 3-3 Relay extension board
Type
Code
Terminal name
Description
Power supply
+10V
10V reference
power supply
The inverter provides 10V
reference power supply with a
maximum output current of 50mA.
Generally as the power supply of
the external potentiometer with
resistance above 5kΩ
+24V
24V power supply
The inverter provides 24V±10%
power supply with a maximum
output current of 200mA.
Generally as the working power
supply of switch input and output or
the external sensor
