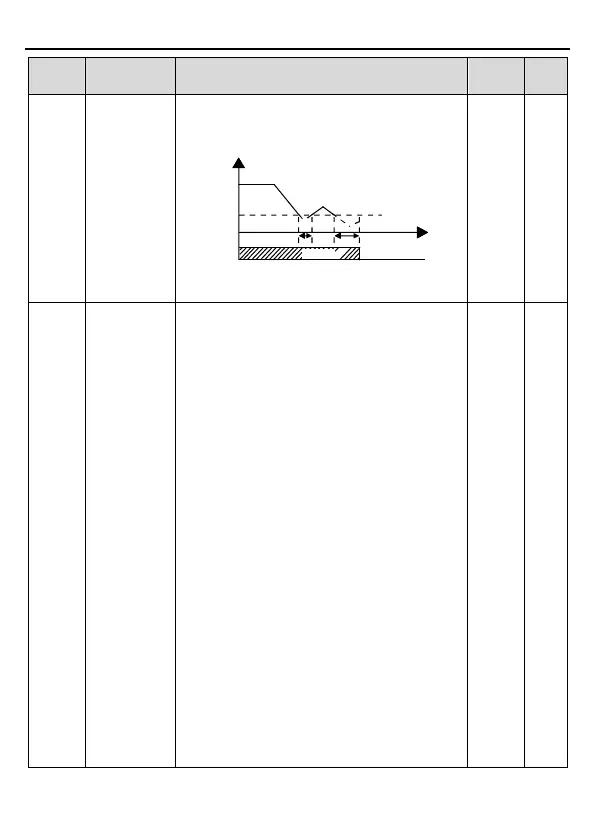

INVT Goodrive20-EU VFD Series User Manual

Goodrive20-EU series VFD Function parameters
86
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
P09.12
Feedback
offline
detection time
lasting time exceeds the set value in P09.12, the
VFD will report "PID feedback offline fault" and
the keypad will display PIDE.
T
Output frequency
t1
t2
P09.11
In running
Fault output PIDE
PIDE
Setting range of P09.11: 0.0 – 100.0%
Setting range of P09.12: 0.0 – 3600.0s
1.0s
○
P09.13
PID adjustment
selection
0x00 – 0x11
LED ones:
0: Keep on integral adjustment when the
frequency achieves the upper/lower limit; the
integration shows the change between the
reference and the feedback unless it reaches the
internal integral limit. When the trend between
the reference and the feedback changes, it
needs more time to offset the impact of
continuous working and the integration will
change with the trend.
1: Stop integral adjustment when the frequency
reaches the upper/lower limit. If the integration
keeps stable, and the trend between the
reference and the feedback changes, the
integration will change with the trend quickly.
LED tens:
0: The same with the main reference direction; if
the output of PID adjustment is different from the
current running direction, the internal will output
0 forcedly.
1: Opposite to the main reference direction
LED hundreds:
0: Limit as per the maximum frequency
1: Limit as per A frequency
LED thousands:
0: A+B frequency, main reference A frequency
source buffering acceleration/deceleration is
invalid;
0x0001
○
