INVT Goodrive350-19 Series User Manual

Goodrive350-19 series VFD Installing
- 22 -
Note:
 When the flange mounting method is used, the (optional part) flange mounting plate is required
for the 380V 1.5–75kW VFD models but not required for the 380V 90–200kW and 660V
22–220kW VFD models.
 The 380V 220–315kW and 660V 250–355kW VFD models support the (optional part) installation
base, which can house an input AC reactor (or DC reactor) and an output AC reactor.
4.2.4 Installing one VFD
Hot air
C
C
A
B
A
B
Cold air

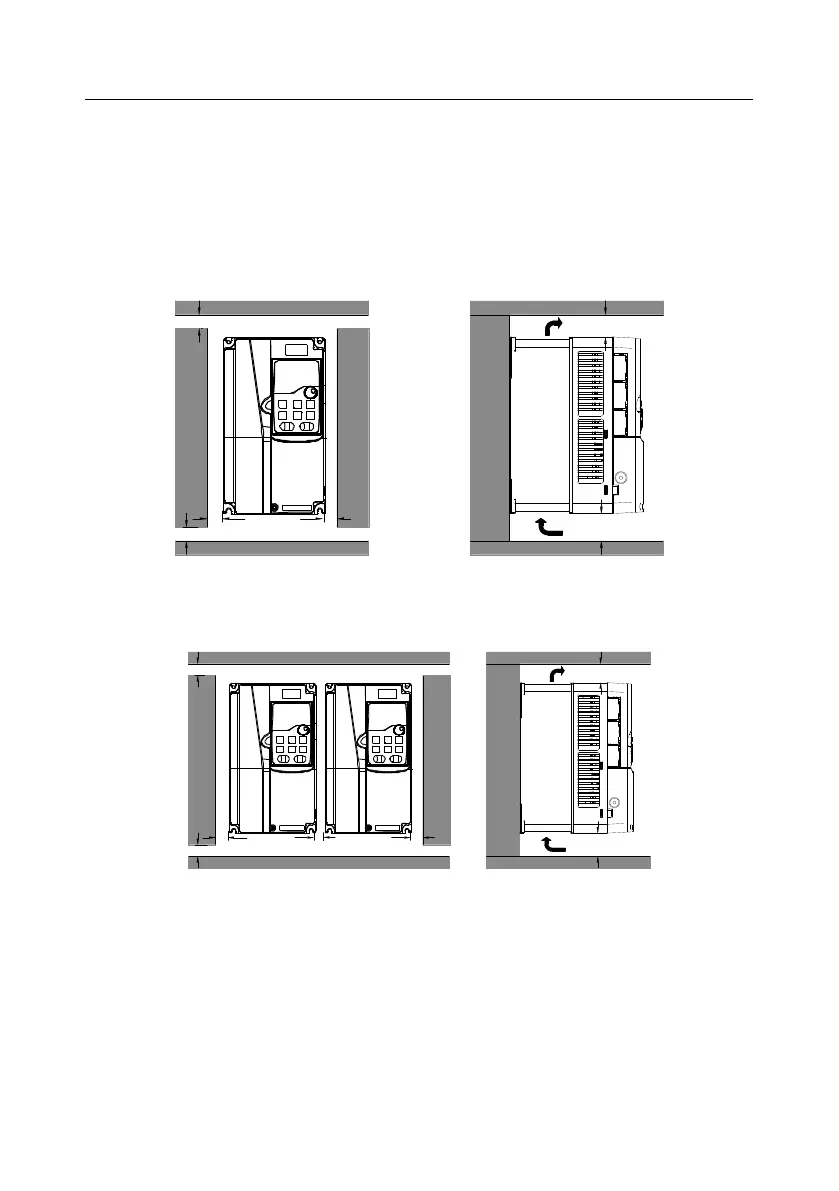

Figure 4.3 Installing one VFD
Note: For clearances B and C, each must be 100mm at least.
4.2.5 Installing multiple VFDs
Hot air
C
C
A
A
B B
D
Cold air
Figure 4.4 Installing multiple VFDs side by side
Note:
 If the VFDs are in different sizes, align the top of the VFDs for installation, which facilitates
maintenance.
 For clearances B, D, and C, each must be 100mm at least.
