Goodrive350-19 series VFD Dimensional drawings
-496-
W1
H1
D1
W2 W2
6- ø11.0
H2

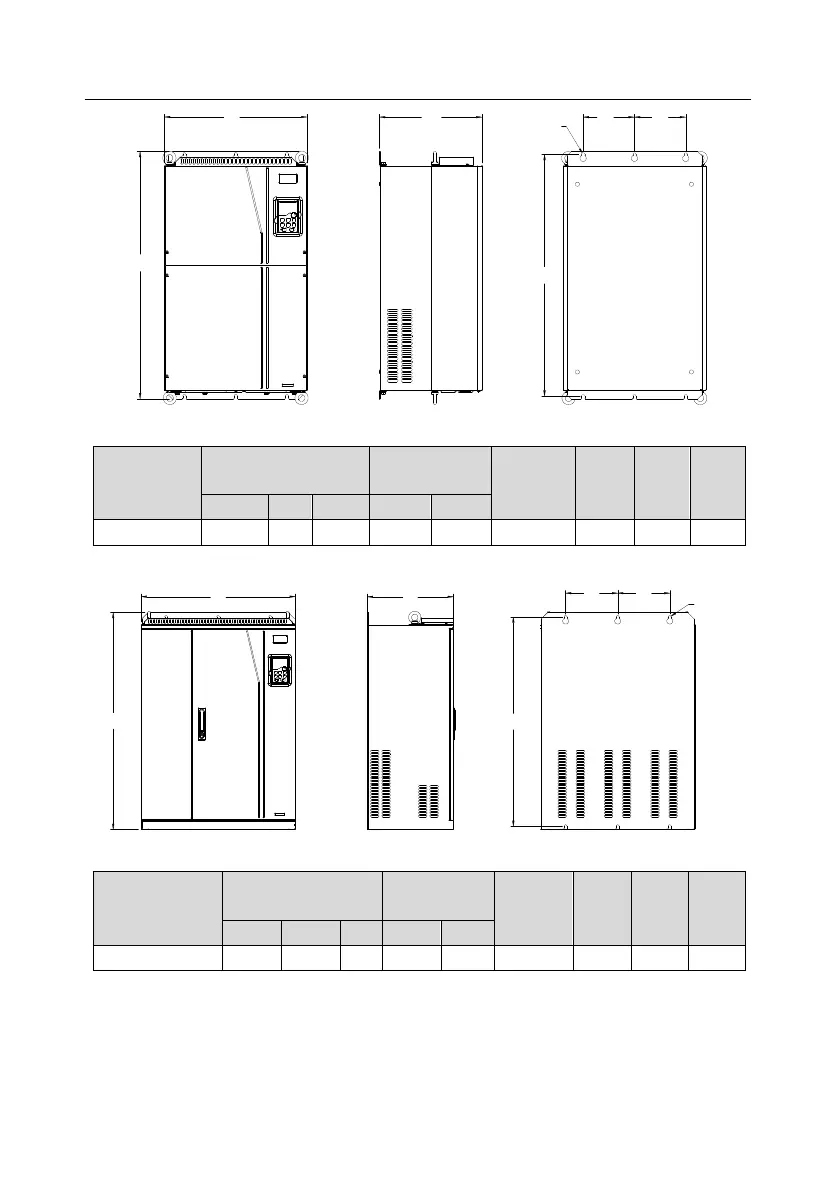

Figure C.9 380V 132–200kW VFD wall mounting diagram
VFD model
Outline dimensions
(mm)
Hole distance
(mm)
Hole
diameter
(mm)
Screw
Net
weight
(kg)
Gross
weight
(kg)
W1
H1
D1
W2
H2
132kW–200kW
500
870
360
180
850
11
M10
85
110
W1
W2
D1
H1 H2
6- ø13.0
W2
Figure C.10 380V 220–315kW VFD wall mounting diagram
VFD model
Outline dimensions
(mm)
Hole distance
(mm)
Hole
diameter
(mm)
Screw
Net
weight
(kg)
Gross
weight
(kg)
W1
H1
D1
W2
H2
220kW–315kW
680
960
380
230
926
13
M12
135
165
