2.2 Product appearance
2.2.1 Key component description

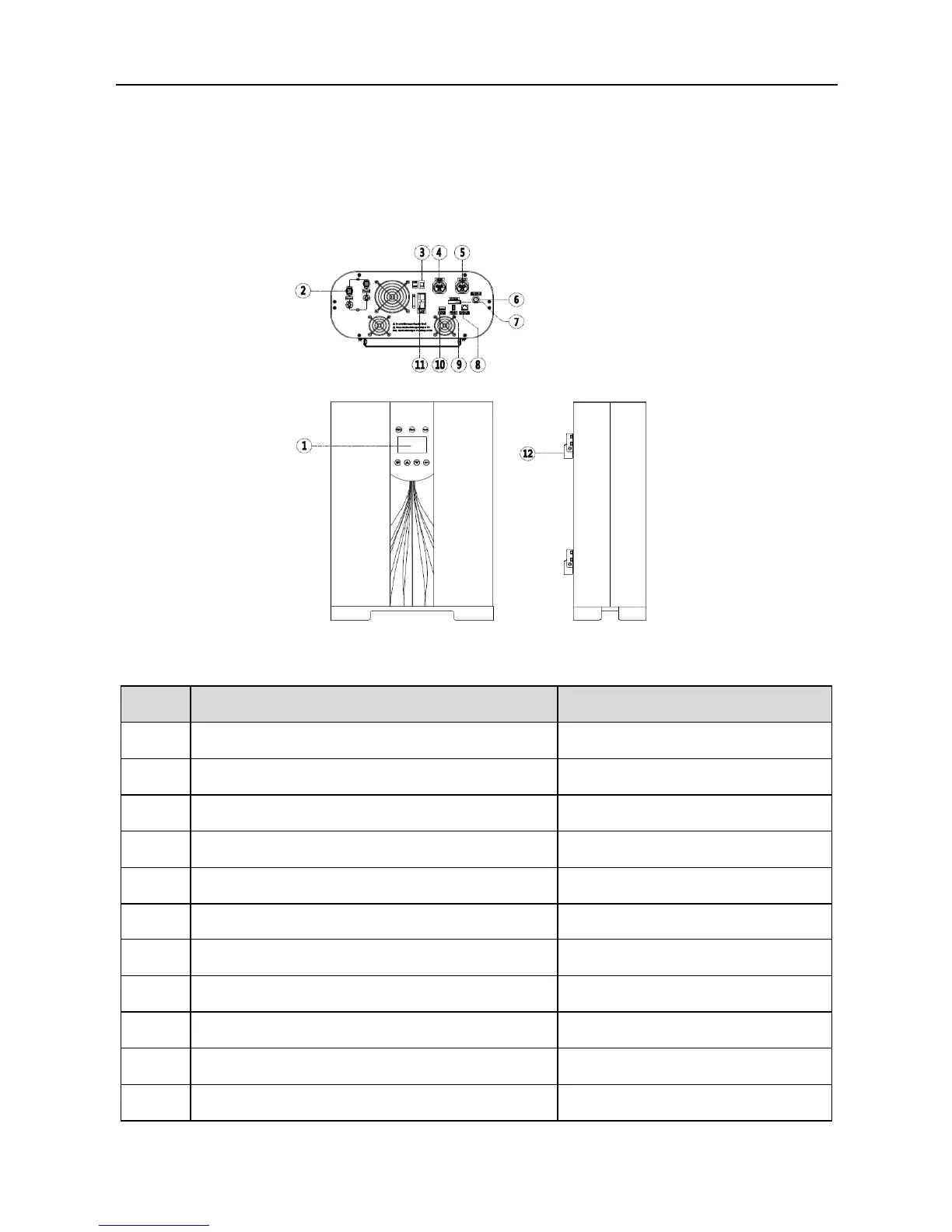

Figure 2.2.1 Appearance diagram of 3~5kW energy storage inverter
No.
Name
Silk screen
1
Operation display panel
/
2
PV input terminal
TrackA、TrackB
3
E-stop switch
ON/OFF
4
AC terminal
GRID
5
Load terminal
LOAD
6
RS485 communication interface
RS485-2/1
7
Communication interface
COMM/ DRM Communication port
8
RS485 communication interface
RS485-3
9
USB interface
USB
10
Lithium battery CAN communication interface
CAN
11
Battery terminal
BAT
