INVT iMars Series User Manual

iMars series PV energy storage inverter Installation
23
Installation spacing
Minimum spacing
Side spacing
200mm
Top spacing
450mm
Bottom spacing
450mm

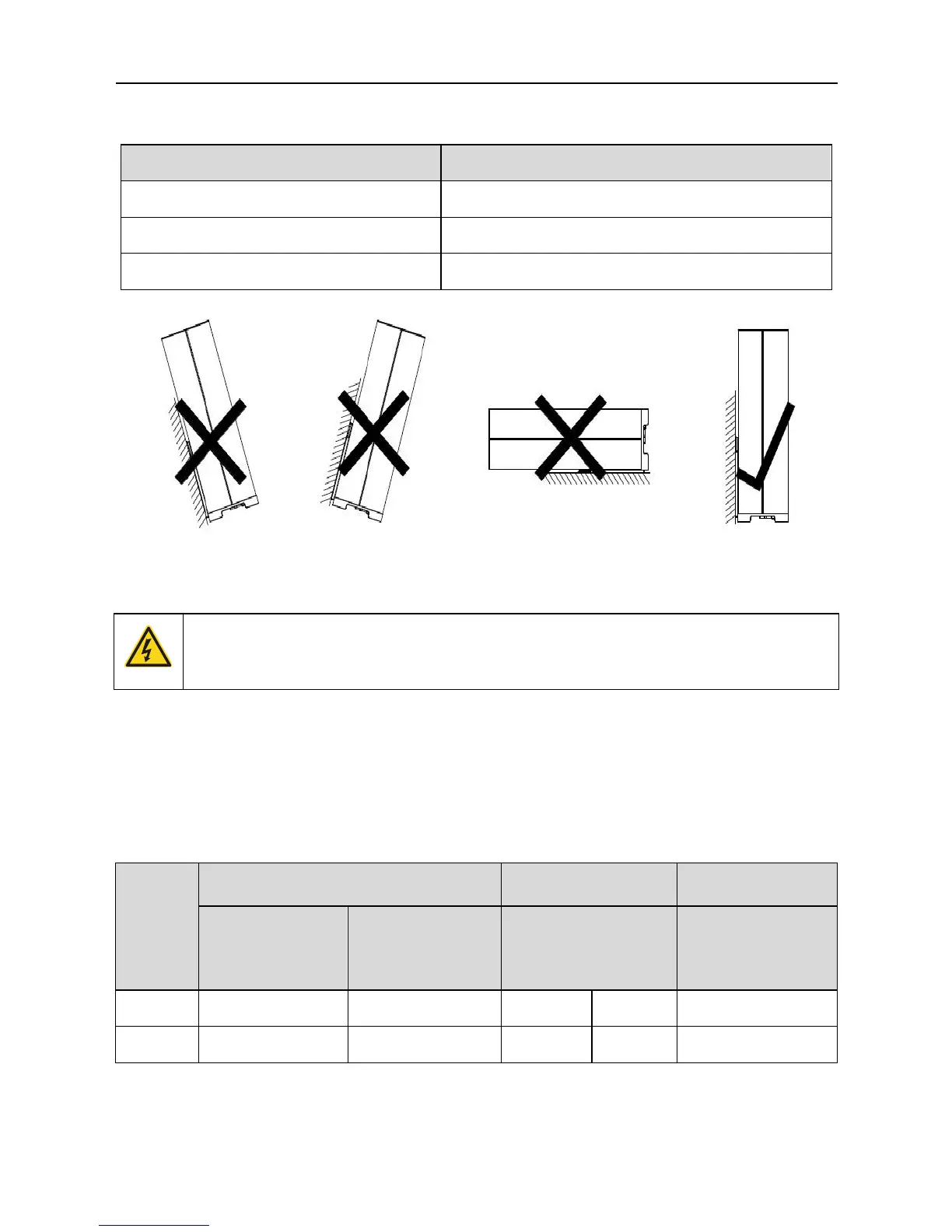

Figure 4.2.2 Inverter installation position
 Do not open the surface cover of the inverter or replace any part as incomplete
inverter may cause electric shock and damage the device during operation.
4.2.2 Specification of cable
In order to regulate and compatible with the inverter AC/DC connector or wiring terminal
specifications, below requirements on the AC/DC cable connected to corresponding inverter
models should be fulfilled:
Inverter
model
PV side
AC and load side
Battery side
Min
cross-section
areamm²
(length≤50m)
Min cross
section area
mm²
(Length>50m)
Min cross-section
area
mm²(length≤50m)
Min
cross-section
area
mm²(length≤50m)
3kW
4
6
6
4
16-25
5kW
4
6
8
4
25-35
