iMars series PV energy storage inverter LCD operation instructions
39
power generation eg energy flow outputted by PV battery panel and grid-connected energy flow;
red arrow indicates the consumed energy flow eg battery discharge and energy flow consumed by
load.

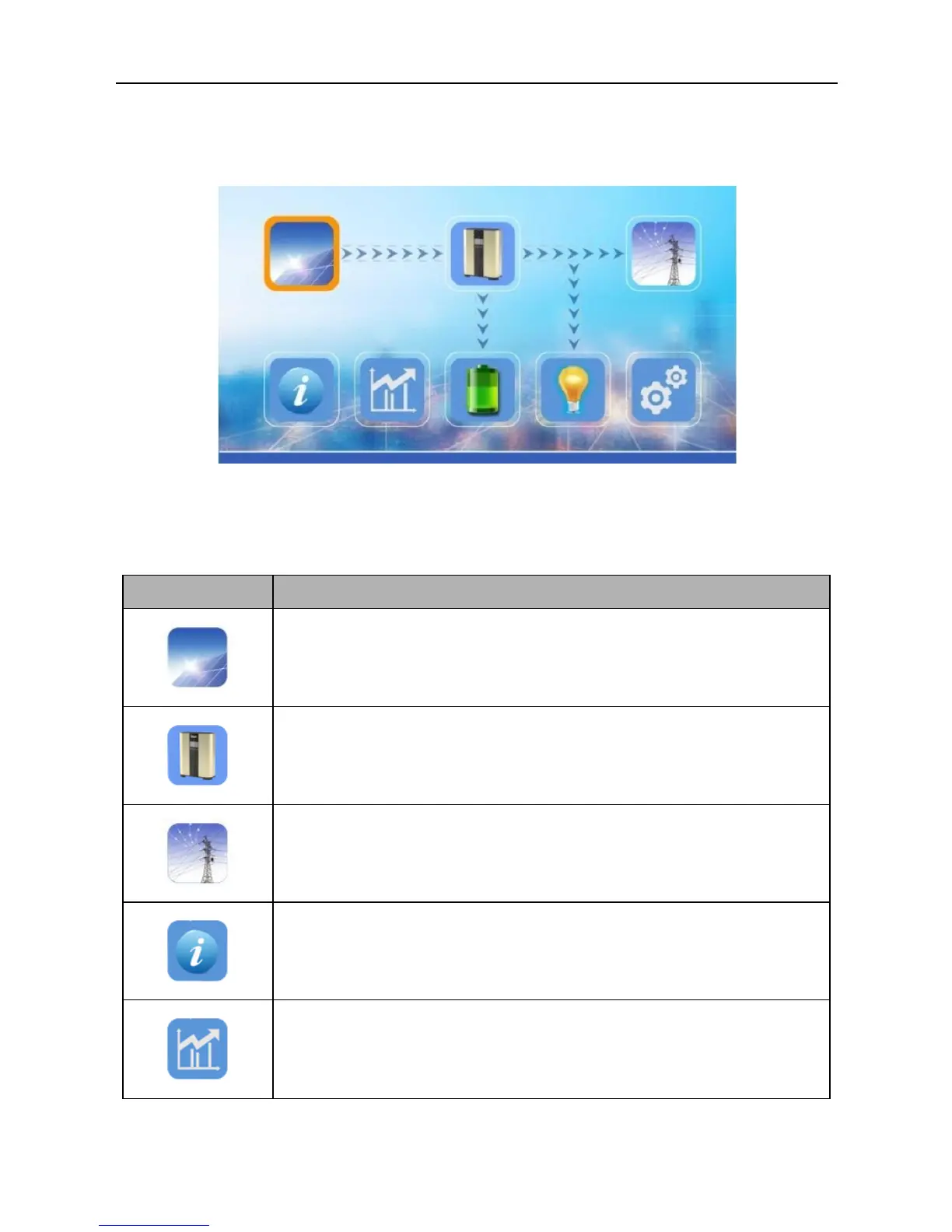

Figure 6.2.2 Main interface of LCD display
6.2.3 Icon instruction
Icon
Instruction
PV information, display parameters related to battery panel, switch pages
via UP/DOWN key.
Inverter information, display inverter working state
Grid information, display parameters related to the grid, switch pages via
UP/DOWN key
Fault information, display current fault and history fault, switch current
fault page and history fault page via UP/DOWN key.
Power curve, display PV power curve, grid power curve and battery
power curve.
