5 Electrical connection
This section presents the detailed contents and safety precautions related to electrical connection.

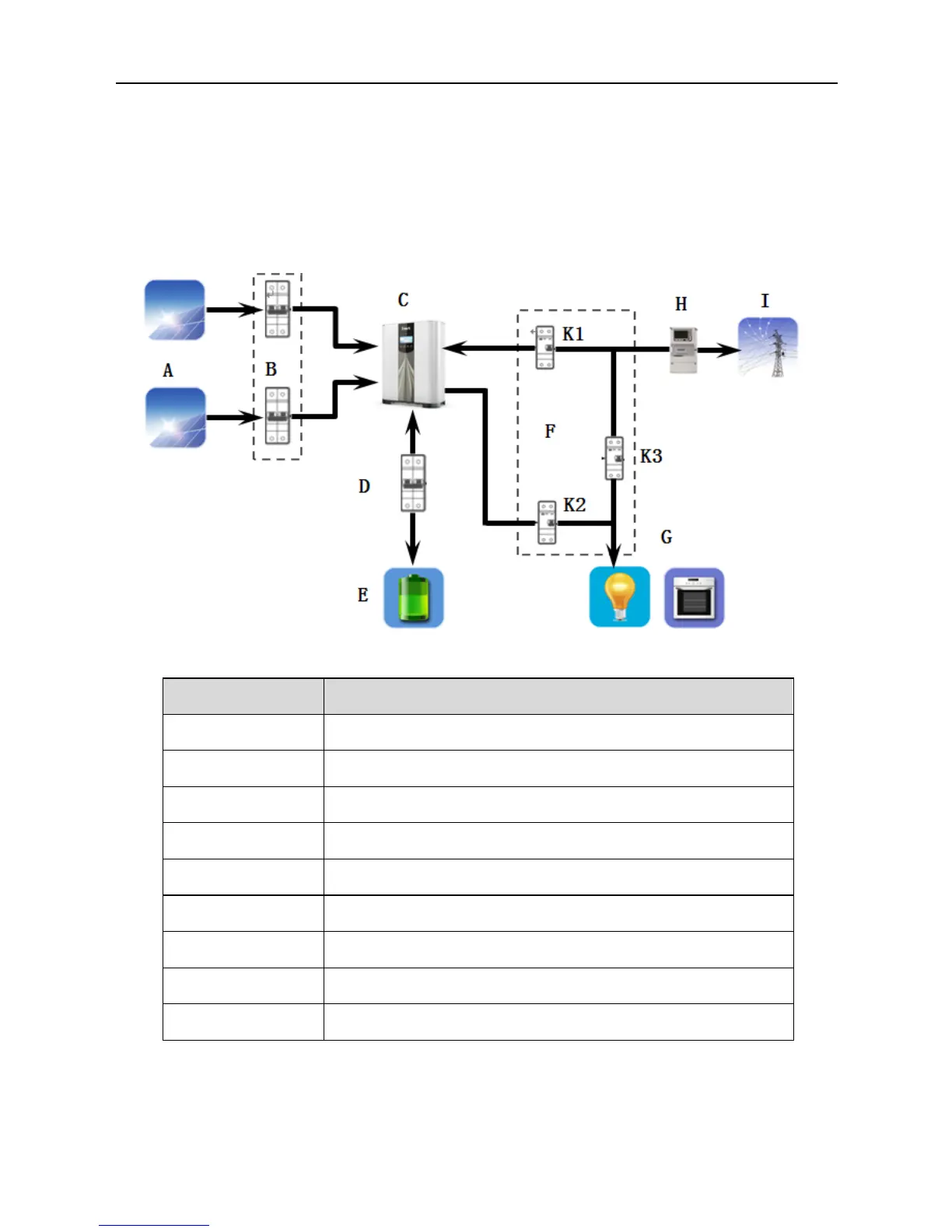

Fig 5.1 Connection diagram for energy storage system.
No.
Name
A
PV string
B
PV side DC switch
C
Energy storage inverter
D
Battery side DC switch
E
Battery
F
AC switch
G
Load
H
Digital meter
I
Public grid
