INVT iMars Series User Manual

iMars series PV energy storage inverter Electrical connection
28
 It is forbidden to connect the PE wire (ground wire) to the positive and negative poles of the
PV strings, otherwise it will cause damage to the energy storage inverter.
 Ensure that the PV string polarity matches the PV connector, otherwise the energy storage
inverter will be damaged.
 The insulation resistance of the PV panel to the ground should be greater than the safety
regulation, otherwise there will be electrical hazards.
5.1.1 Procedures of PV connection

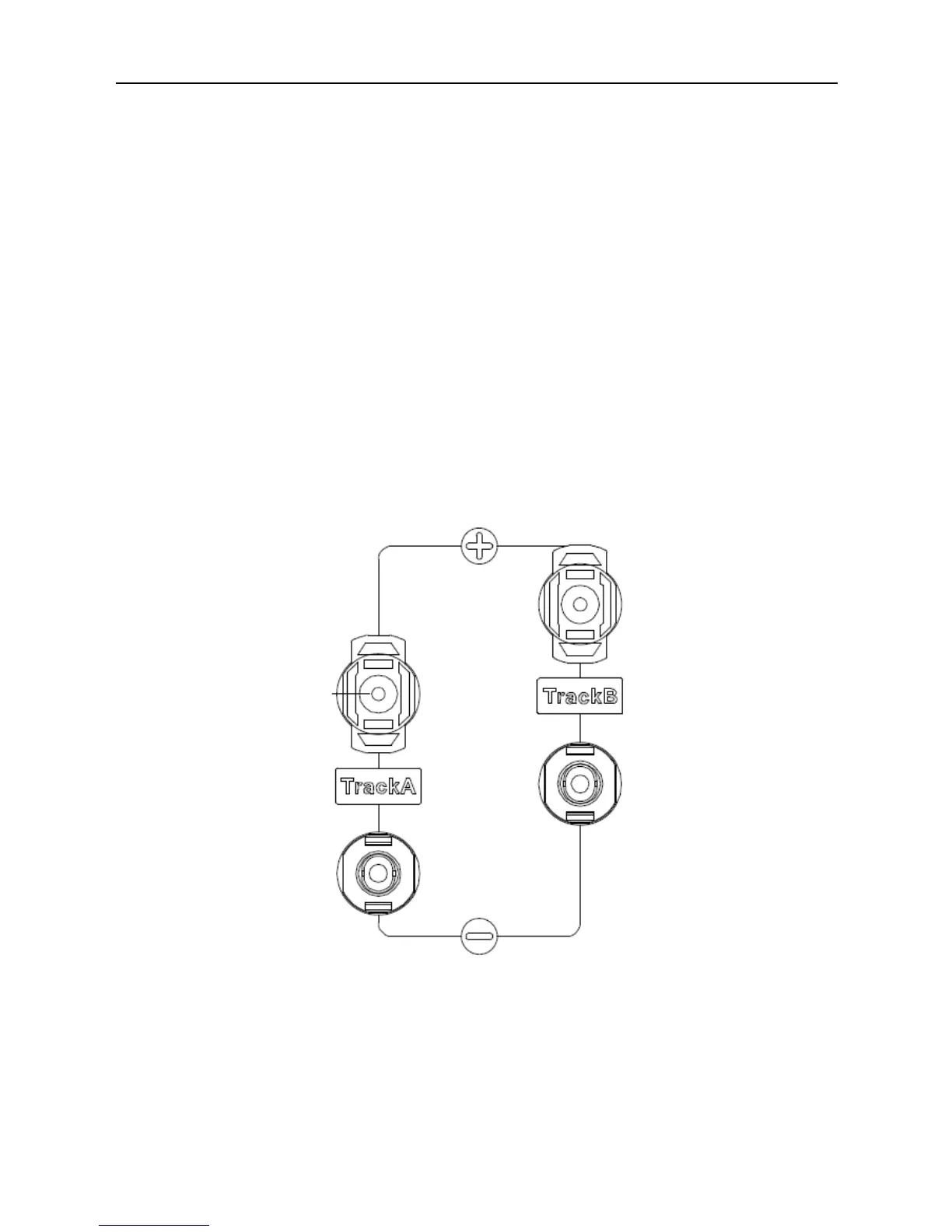

Figure 5.1.1 Inverter DC side input terminal
