iMars series PV energy storage inverter Electrical connection
29
Steps
(1) Assemble the positive and negative connectors.

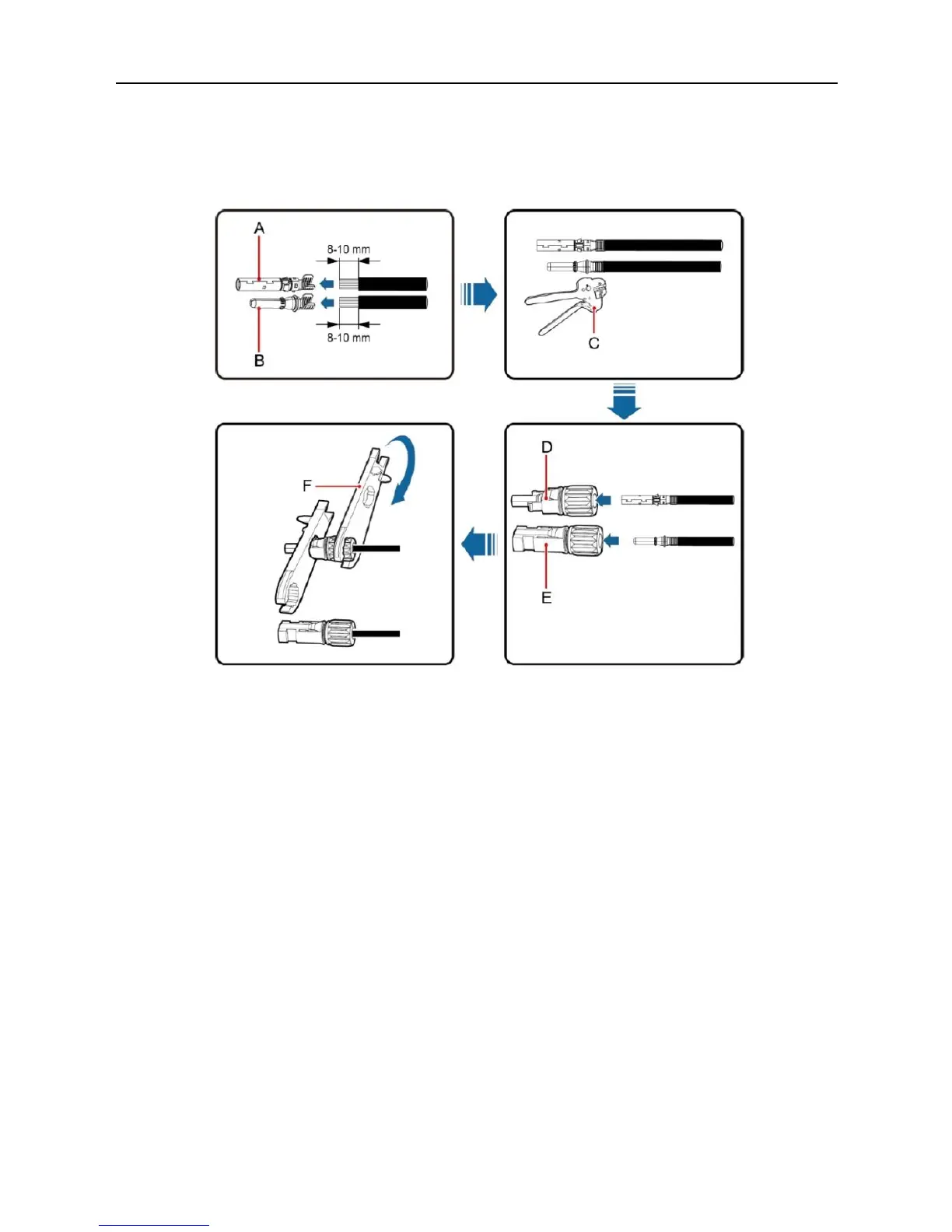

Figure 5.1.2 Crimp PV Connector
(A) Positive metal terminal (B) Negative metal terminal
(C) Crimping Tool (D) Positive connector
(E) Negative connector (F) Open end wrench
(2) Use a multimeter to measure the voltage of the DC input string, verify the polarity of the DC
input cable, and ensure that the voltage of each string is within the allowable range of the inverter
