7.2.6 Install the sensors on the machinery
Note: if the sensor is installed on parts that vibrate and objects are present in the field of vision, the sensor could generate false
alarms.

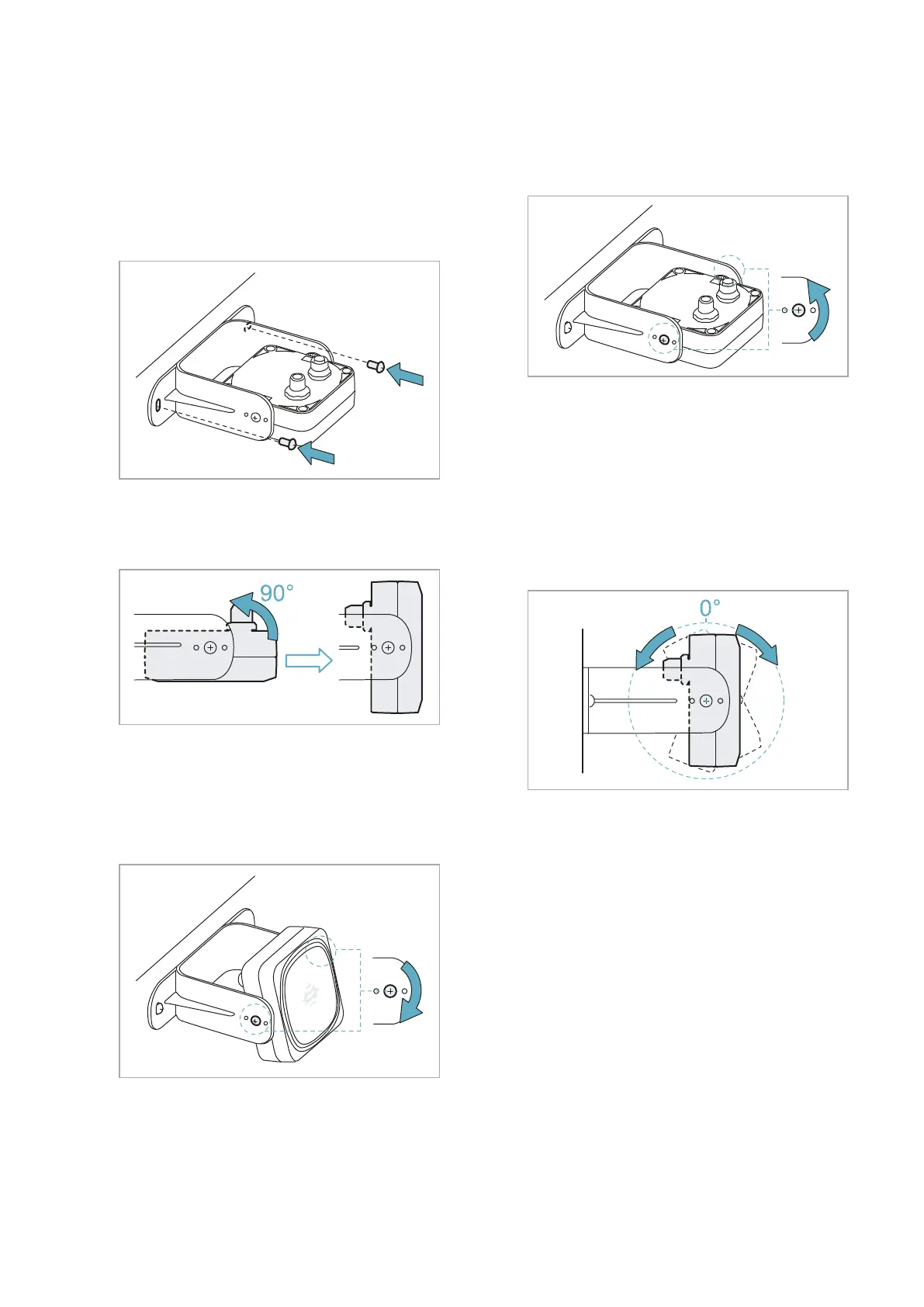

1. Position the sensor as indicated in the
configuration report and fasten the bracket
with two screws to a machinery support. To
select installation height, see "Sensor position"
on page25.
2. Loosen the side screws.
3. Position the sensor parallel to the machinery
support.
4. Direct the sensor up to the desired inclination,
see "Sensor position" on page25.
Note: a notch is equal to 10° of inclination.
5. Tighten the screws.
7. Installation and use procedures
LBK System| Instruction manual v1.3 SEP 2019 |LBK-System_instructions_en v1.3|© 2018-2019 Inxpect SpA
47
