nanoLTE S60 AP Hardware Installation nanoLTE S60 AP Hardware Installation
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 9
3.3 Mount the nanoLTE S60 AP on its Stand
1) Fit the S60 AP onto its stand. It should click into place when the unit is oriented
correctly on the stand.
2) Position the S60 AP in a suitable location, within reach of a power supply point and
an Ethernet connection. When it is on its stand, the AP must be on a stable flat
surface.

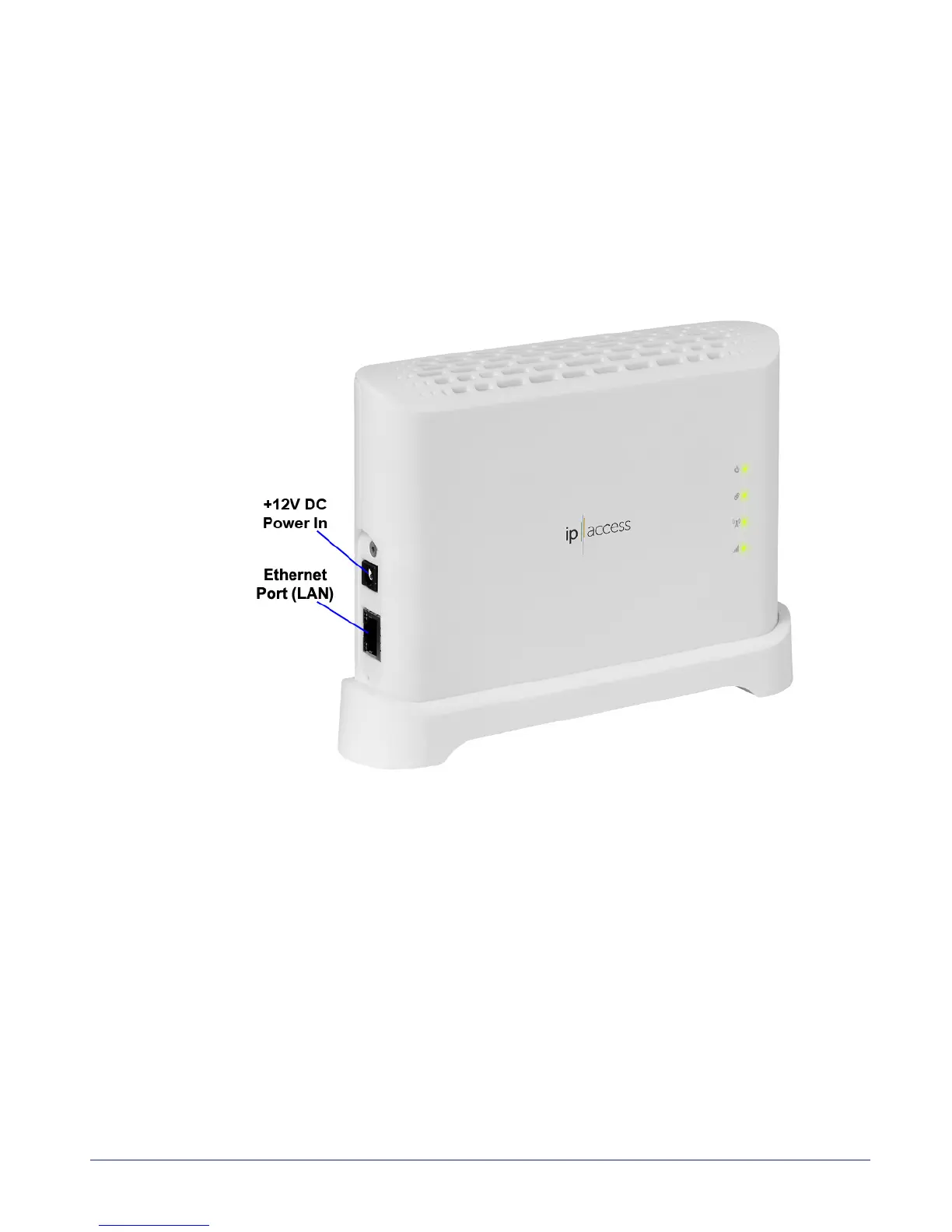

3) Plug in the required cables. Plug an Ethernet cable from a switch/gateway into
LAN and the included power supply into the +12V DC input:
Route the cables safely. Do not create a tripping hazard with the cables.
