3.4 Mount the S60 AP on a Wall
Note: The S60 AP should be installed in a position so that it is at least 2m away from the area
where handsets are normally used.
The S60 AP must be mounted vertically to ensure air circulation around the unit.
The location of each S60 AP should be shown on an installation floor plan produced at the
network planning stage. For example, it must take into account that all APs must be at least
2m from any mobile equipment. Any additional network wiring must be complete before the
S60 AP can be installed. When it is wall mounted, position the S60 AP at or above head
height.

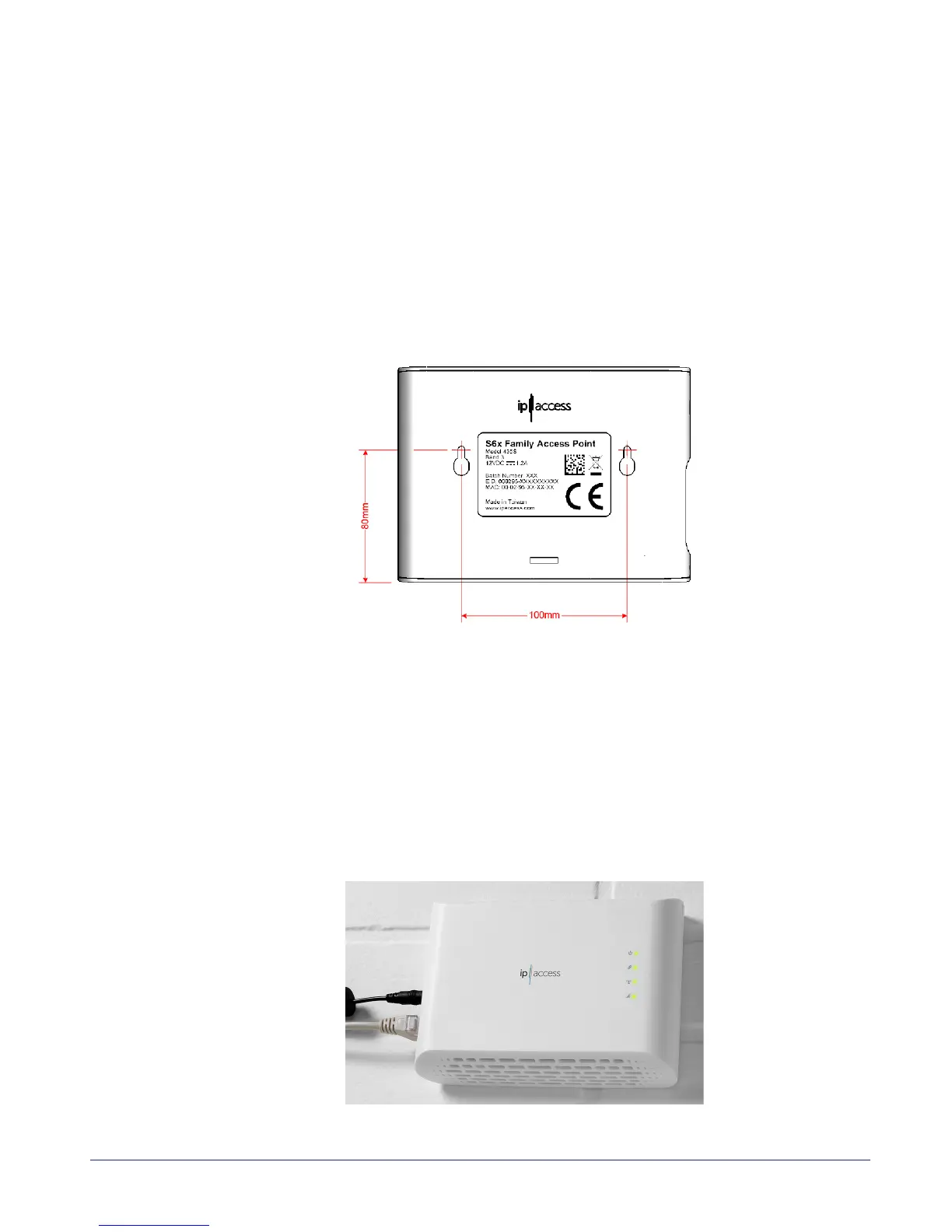

1) Mark the position of the two screw holes on a flat area of wall, 100mm apart
horizontally to match the mounting holes on the back of the unit:
To ensure adequate ventilation, allow at least 200mm around the holes to the
nearest obstructions, typically to a corner in the walls and the ceiling.
2) Drill the two holes in the positions marked previously and insert wall plugs (if
required) and fix the screws in place, leaving enough of each screw protruding
from the wall so it is easy to hang the S60 on the screws.
3) Slide the S60 AP onto the two screws.
4) Plug in the required cables. Plug an Ethernet cable from a switch/gateway into
LAN and the power supply into the +12V DC input:
Note: Route the cables safely.
