Ip.Access nanoLTE S60 User Manual

nanoLTE S60 AP Hardware Installation Installation Overview and Requirements
NANO_INST_43315 v200_0.5 for N4G_2.0 © ip.access Limited 2017 Page 6

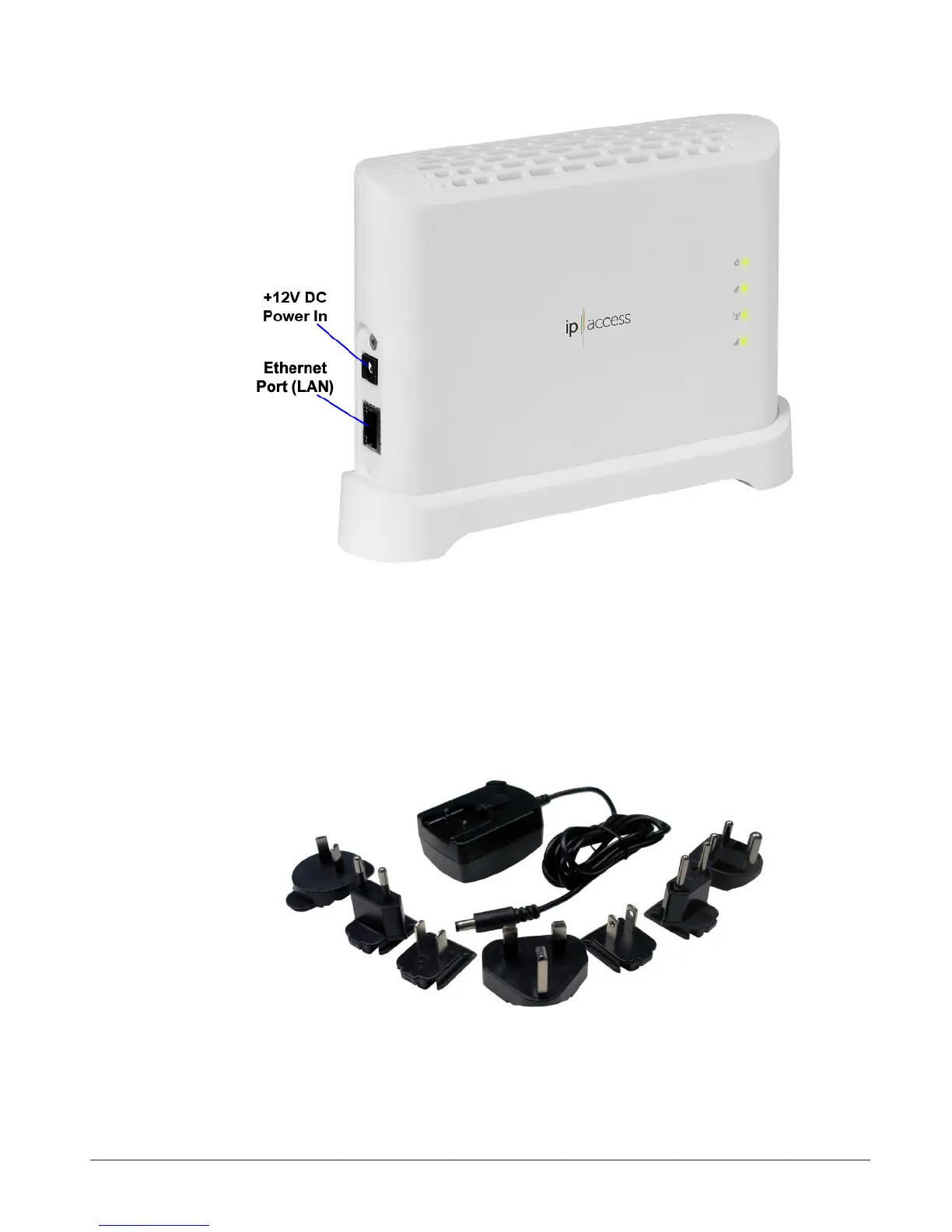

2.3.4 nanoLTE S60 AP Power Requirements
Maximum expected power consumption:
• 15 Watts (Rated +12V on the DC input)
The S60 AP only uses power from a suitable DC source (+12V, 1.67A rated centre positive
2.1mm jack). Use the supplied mains adaptor only.
PSU
The following 12V PSU, rated up to 20W, is included in the box with the S60 AP:
There must be a suitable mains power supply point for plugging in the power adapter. The
lead on the PSU is 1.5m long, hence the power supply point must be within 1.5m of the AP.
The S60 AP does not use PoE or PoE+. The S60 AP can use an Ethernet connection
carrying PoE or PoE+, but will not power up from the cable.

Ip.Access nanoLTE S60 Specifications

General

Brand	Ip.Access
Model	nanoLTE S60
Category	Wireless Access Point
Language	English
