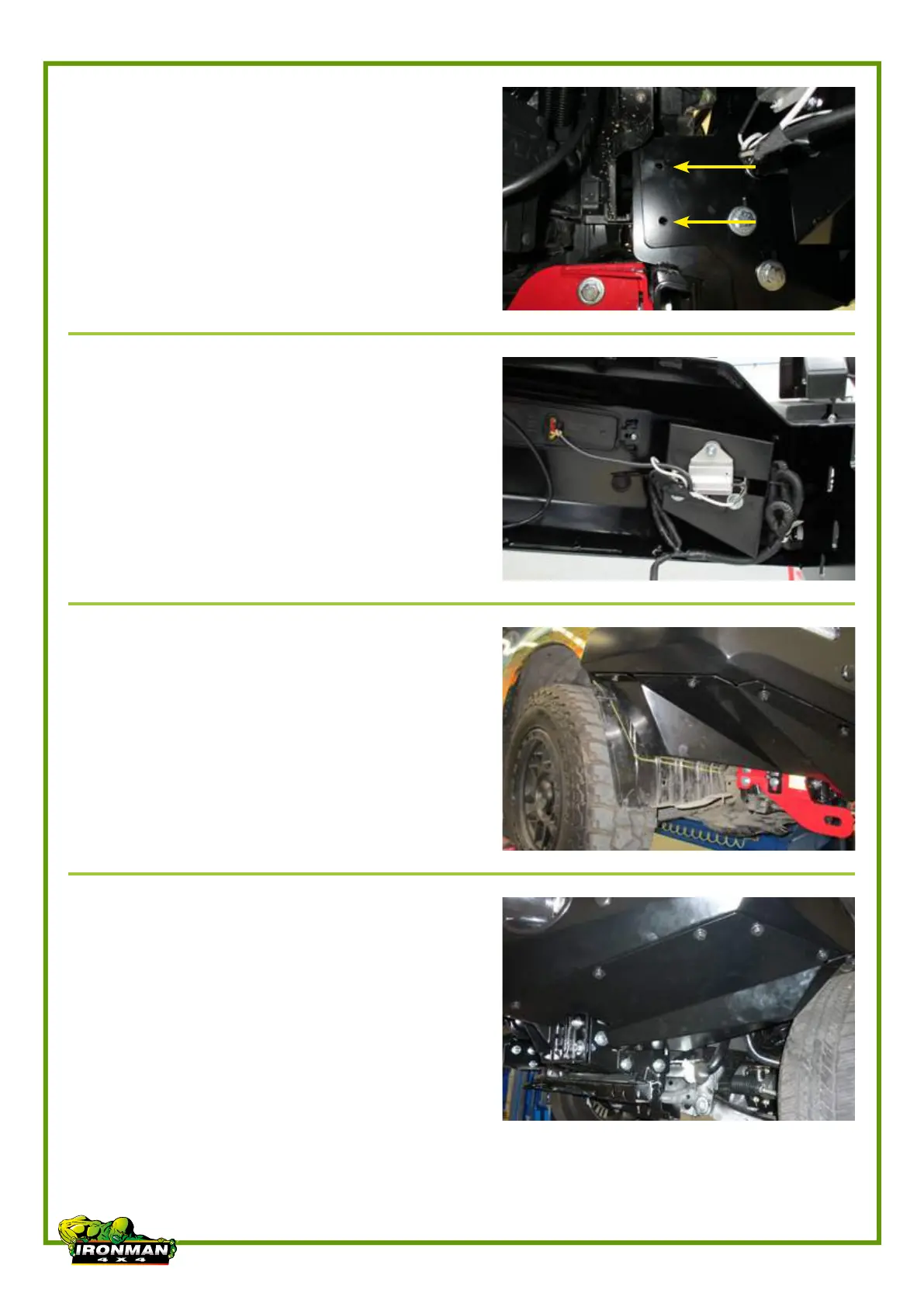

16. Once bullbar is aligned, drill
4 x 10mm holes through pinning
points as shown and secure in
position using 4 x M10 x 40mm
bolts, 8 x flat washers, 4 x spring
washers and 4 x M12 nuts.
17. Connect lights as per wiring
diagram on page 10.
NOTE:
Supplied 21W resistor must be
connected to indicator wiring to
ensure correct function.
18. Mark and trim guard liners as shown.
19. Install side protection plates
using 5 x black M8 bolts, spring
washers, flat washers and
2 x black M8 bolts, 4 x flat
washers, 2 x spring washers and
2 x M8 nuts at the two rearmost
mounting points.
