BBC/BBCD080Installation Guide
©Copyright 2024 Ironman 4x4 Pty Ltd. No part of this publication may be reproduced or replicated without the prior written consent of Ironman 4x4 Pty Ltd
Document Number: BBC_BBCD080/300424

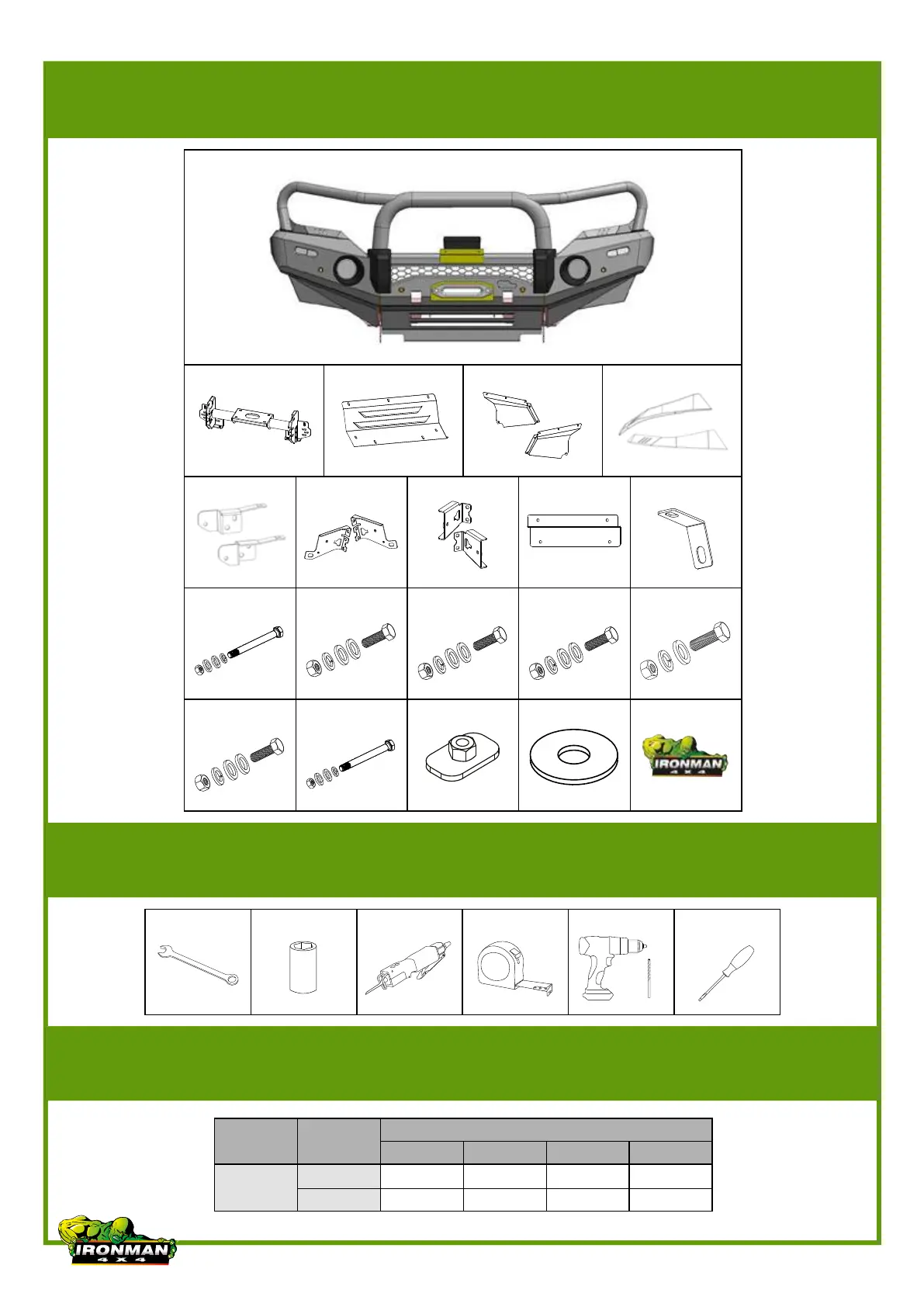

Bull Bar Parts List
Tools Required
Metric spanner set Metric socket set
Air hacksaw
Tape measure Drill and drill bits
Screwdriver set
Bolt Tension Chart
Property Class TORQUE ma
NOMINAL DIAMETER - FINE THREAD
M6 x 1 M8 x 1.25 M10 x 1.25 M12 x 1.25
8.8
Nm 10.5 25 49 88
ft/lb 7.7 18 36 64
1. Bull Bar
QTY-1
2. Mounting Cradle
QTY-1
3. Centre Protection Plate
QTY-1
4. Side Protection Plates
QTY-2
5. Infill Panels
QTY-2
6. Headlight Brackets
QTY-1
6. Outer Support Brackets
QTY-2
7. Inner Support Brackets
QTY-2
8. License Plate Bracket
QTY-2
9. Side Protection Plate
Brackets
QTY-2
10. Bolt, nut, spring/
flat washers
M12x1.25x90mm
QTY-4
11. Bolt, nut, spring/
flat washers
M10x1.25x40mm
QTY-4
12. Bolt, nut, spring/
flat washers
M12x1.25x40mm
QTY-16
13. Bolt, nut, spring/flat
washers M6x1.0x25mm
QTY-2
14. Bolt, nut, spring/flat
washers M8x1.25x25mm
QTY-13
15. Bolt, nut, spring/flat
washers M8x1.25x25mm
QTY-4
16. Bolt, nut, spring/
flat washers
M10x1.25x120mm
QTY-4
17. Bolt M8x1.25x25mm
QTY-2
18. M10 Washer
QTY-4
19. Logo
QTY-1
