BBC/BBCD080Installation Guide
©Copyright 2024 Ironman 4x4 Pty Ltd. No part of this publication may be reproduced or replicated without the prior written consent of Ironman 4x4 Pty Ltd
Document Number: BBC_BBCD080/300424

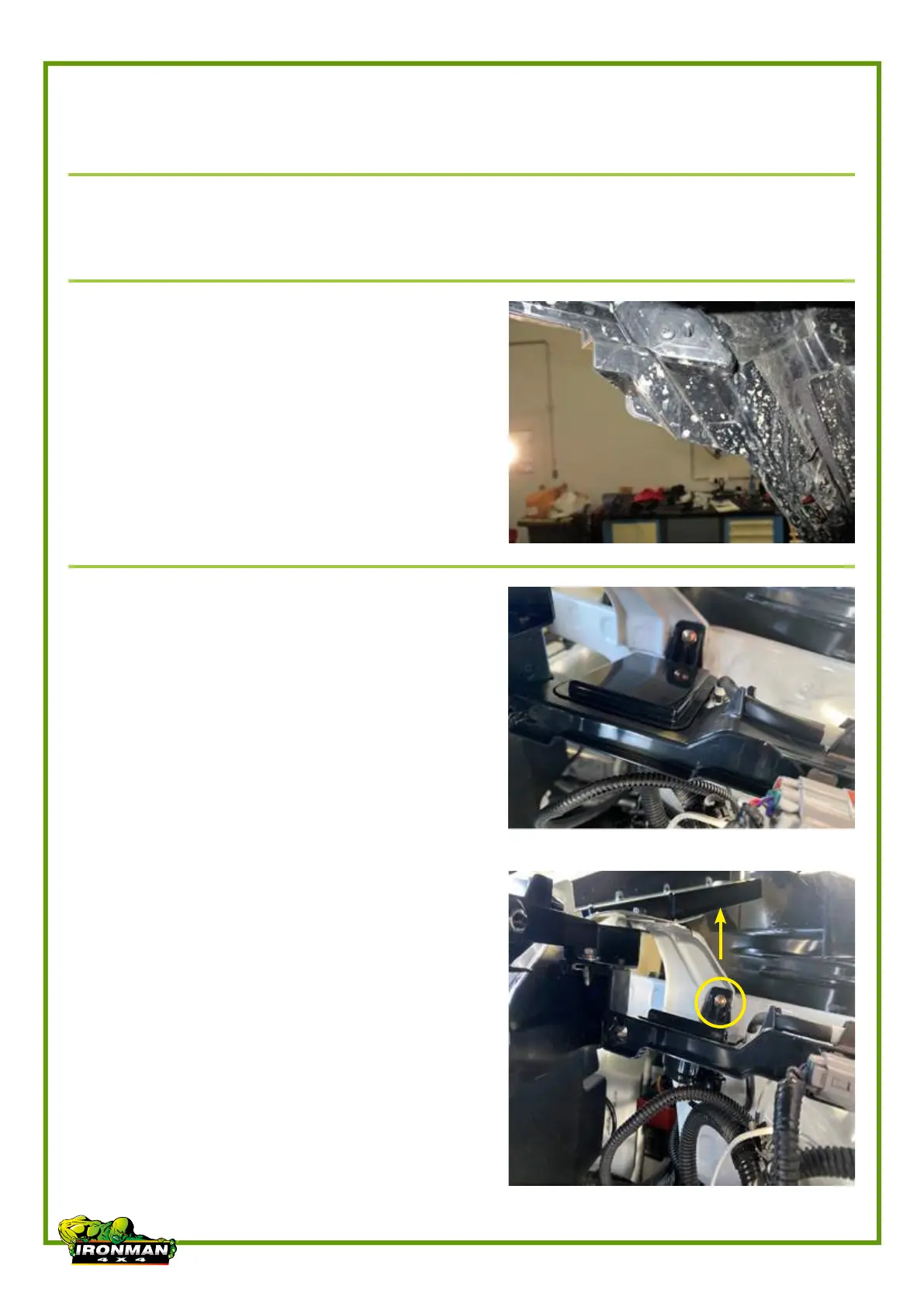

1. Confirm bull bar application is
suitable for your vehicle make,
model and year.
2. Unwrap the bull bar and ensure
the overriders and light assemblies
are tight before installation.
3. Remove clips from inner guard
liner. Remove bumper retaining
screw behind headlight before
unclipping bumper from vehicle.
4a. Disconnect factory bumper bar wiring
for indicators, fog lights, and parking
sensors (if fitted) from the bumper.
NOTE: If vehicle is fitted with parking
sensors, mark their orientation and
position. i.e., right, middle, etc. For
XT models remove the right and left
DRL modules in the lower bumper
and retain.
4b. XT models require the DRL module to
be relocated to under each headlight.
Each module will be mounted to
under the corresponding headlight.
With the flat face surface facing
forward, find a position under the
headlight on the metal support.
Mark and drill a small pilot hole,
then screw the module into position.
Repeat on the opposite side.
