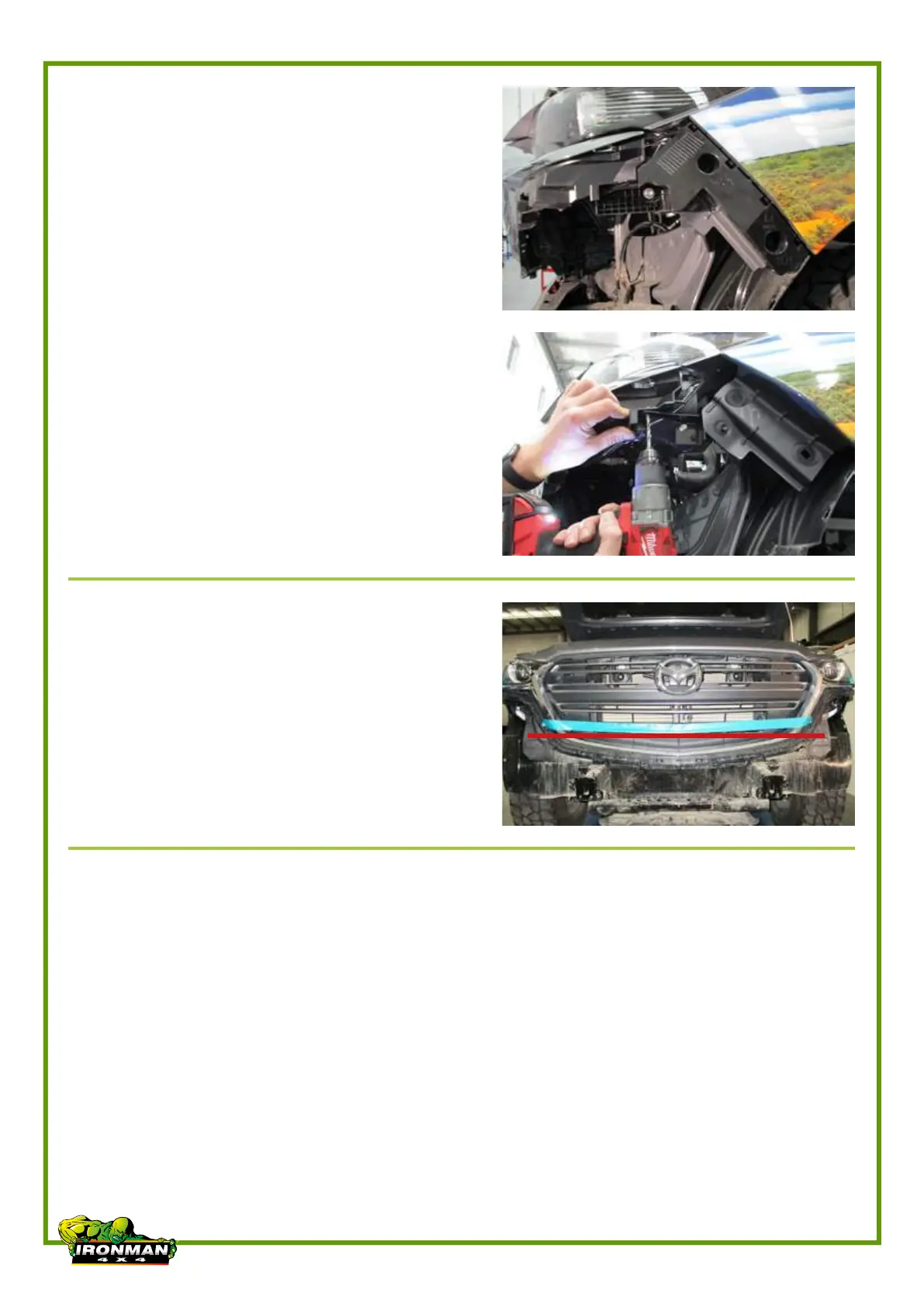

5a. Remove OE bumper retaining clip
and retain OE bolt.
5b. Fit supplied grille support bracket
using OE bolt. Drill 6mm hole
through plastic grille and bolt using
supplied M6 hardware.
7. Remove bumper bar reinforcement
and retain mounting hardware for
re-fitment later.
6. Mark grille as shown in the picture,
cut across grille opening below the
tape line. (eg: red line). Remove
lower section of bumper from
vehicle.
To Next Page
