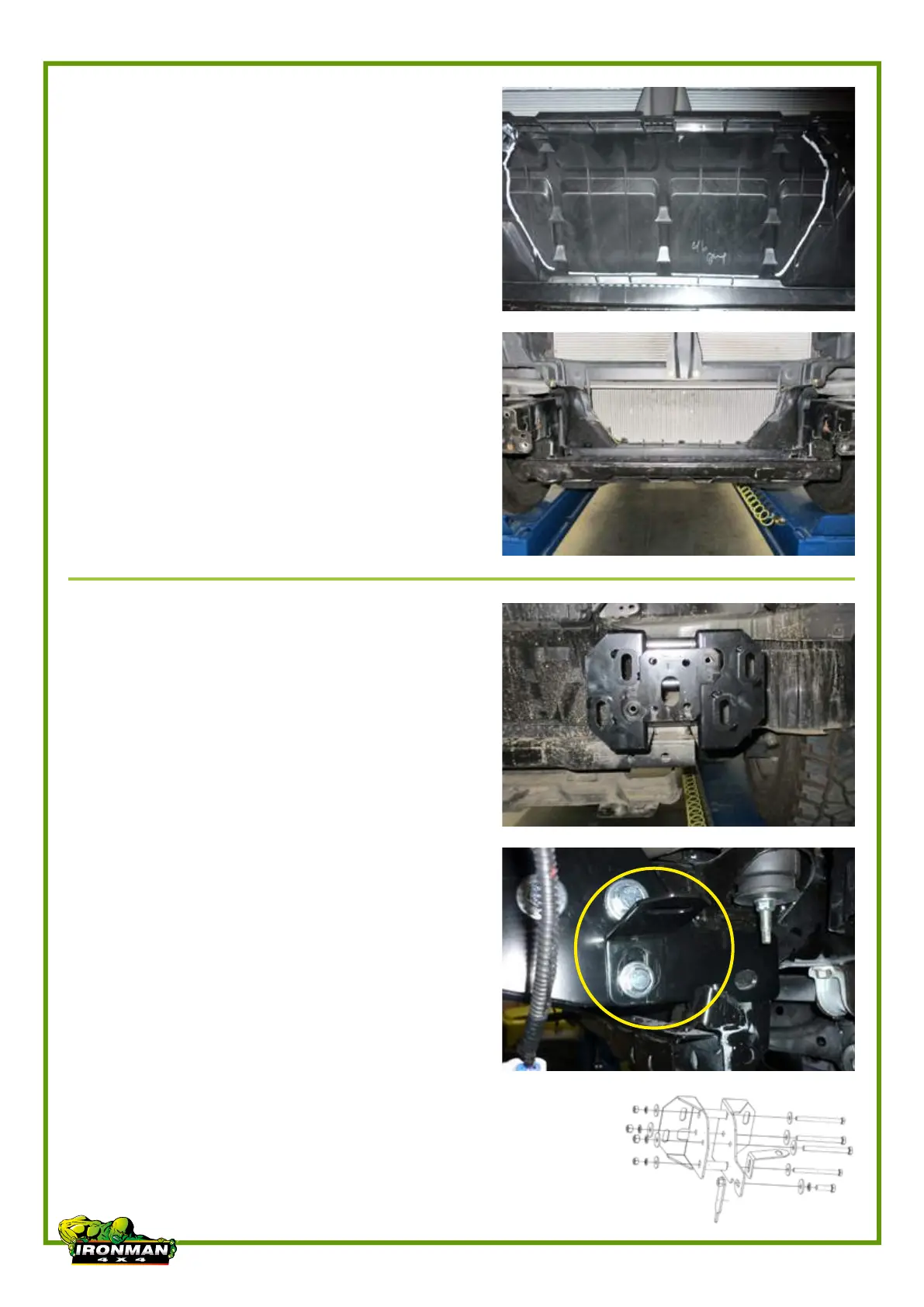

8. Mark centre air dam as shown,
remove section marked with an air
hacksaw or similar.
9. Install inner and outer chassis
support brackets to the chassis
using the following per side:
Secure protection plate mounting
bracket to outside chassis support
bracket using the lower M10 bolts
as shown and tighten.
• 2 x M12 120mm Bolts
• 4 x M12 Flat Washers
• 2 x M12 Spring Washer
• 2 x M12 Nuts
• 2 x M10 120mm Bolts
• 4 x M10 Flat Washers
• 2 x M10 Spring Washer
• 2 x M10 Nuts
• 2 x M10 Crush Tubes
To Next Page
