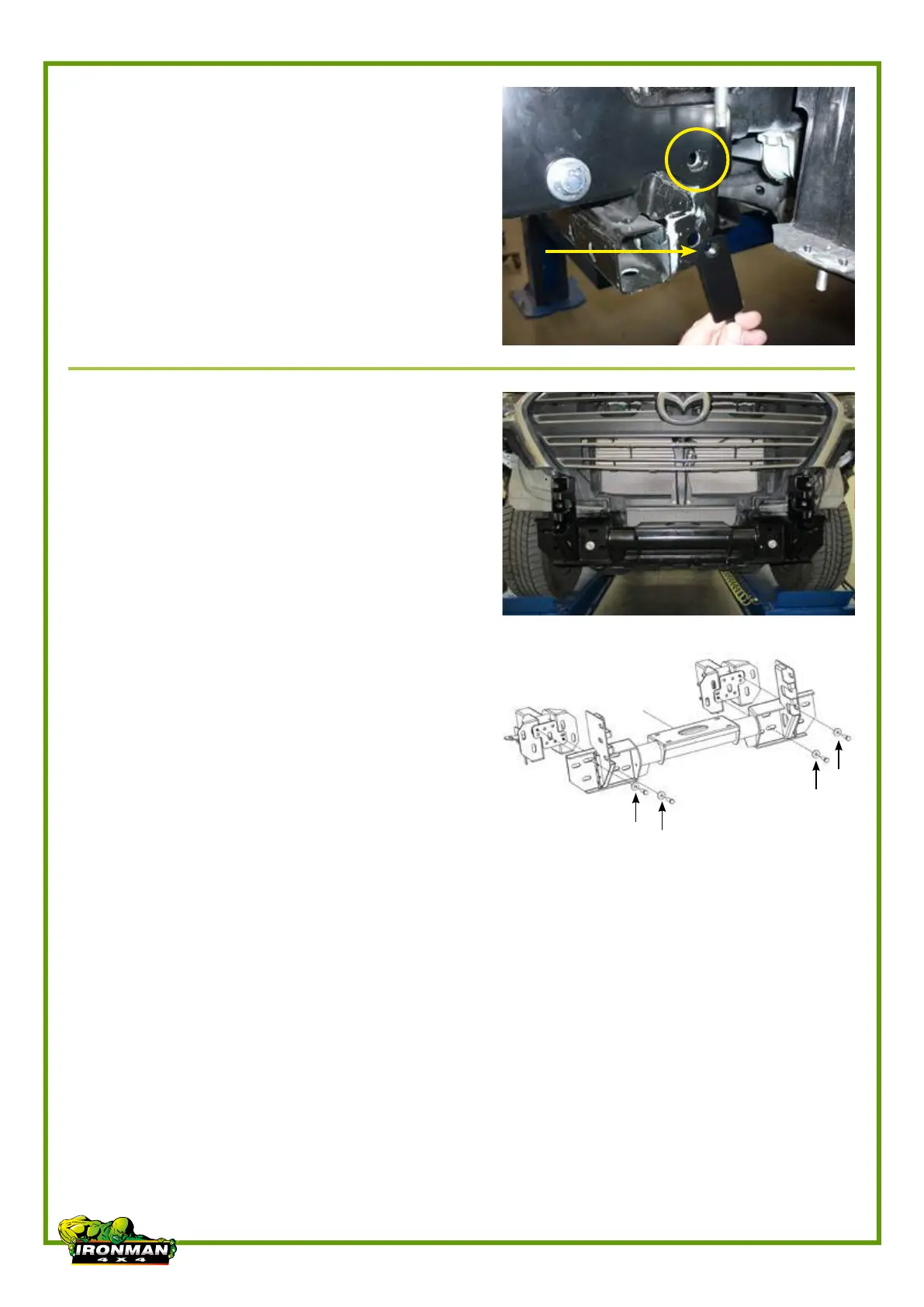

10. Using rear hole in outer support
brackets as a guide drill 1 x 12mm
hole per side, insert nut plate and
secure with M12 x 40mm bolt,
spring washer and flat washer.
Leave bolts loose.
11. Fit mounting cradle to chassis
using 4 x original M10 bolts and
supplied M10 washers removed
from vehicle. Centralise bracket to
vehicle body and tighten bolts.
