End switch bar
OPERATION
Trolley adjustment
- Gun:
Adjust the gun as indicated by the gun instructions.
- Assembling the trolley to the hosereel:
- With IRCO:
- With hydraulic and manual trolley lifting device:
With the help of the crank provided with the hosereel, raise
the anti-return pawl (fig.27) and loosen
the PET tube. (Fig.15) Pull
on the tube to bring it closer to the flange of the
trolley. (fig.17) Lower the anti-return pawl.
Power take off
Power take off crank
Put the winding/unwinding lever
in the unwinding position. (fig.16) and raise the anti-
return pawl (fig.27)
Pull on the hose by hand or with the help of a rope
to bring the flange closer to the trolley. (fig.17)
Lower the anti-return pawl.
- With B600:
IRCO gearbox
B600 gearbox
Winding/Unwinding lever
Gasket
Assemble the 2 flanges (do not forget the gasket.) (fig.17)
Install the end switch bar (fig.18)

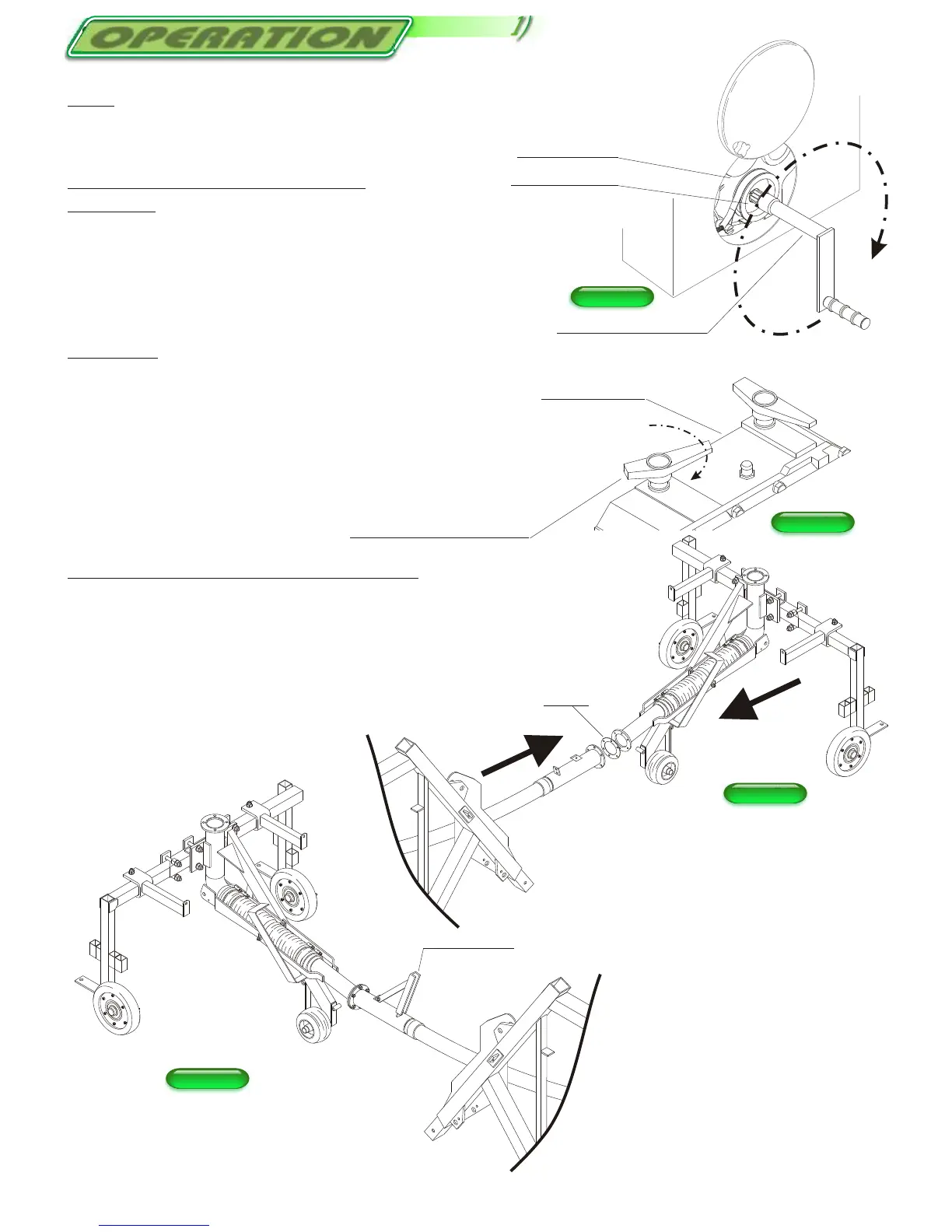

Fig. 15Fig. 15
Fig. 16Fig. 16
Fig. 17Fig. 17
Fig. 18Fig. 18
