- With automatic trolley lifting device:
Assemble the 2 flanges (do not forget the gasket.) (fig.17)
For the automatic trolley lifting device, there isn’t an end switch bar
OPERATION
Position & set up

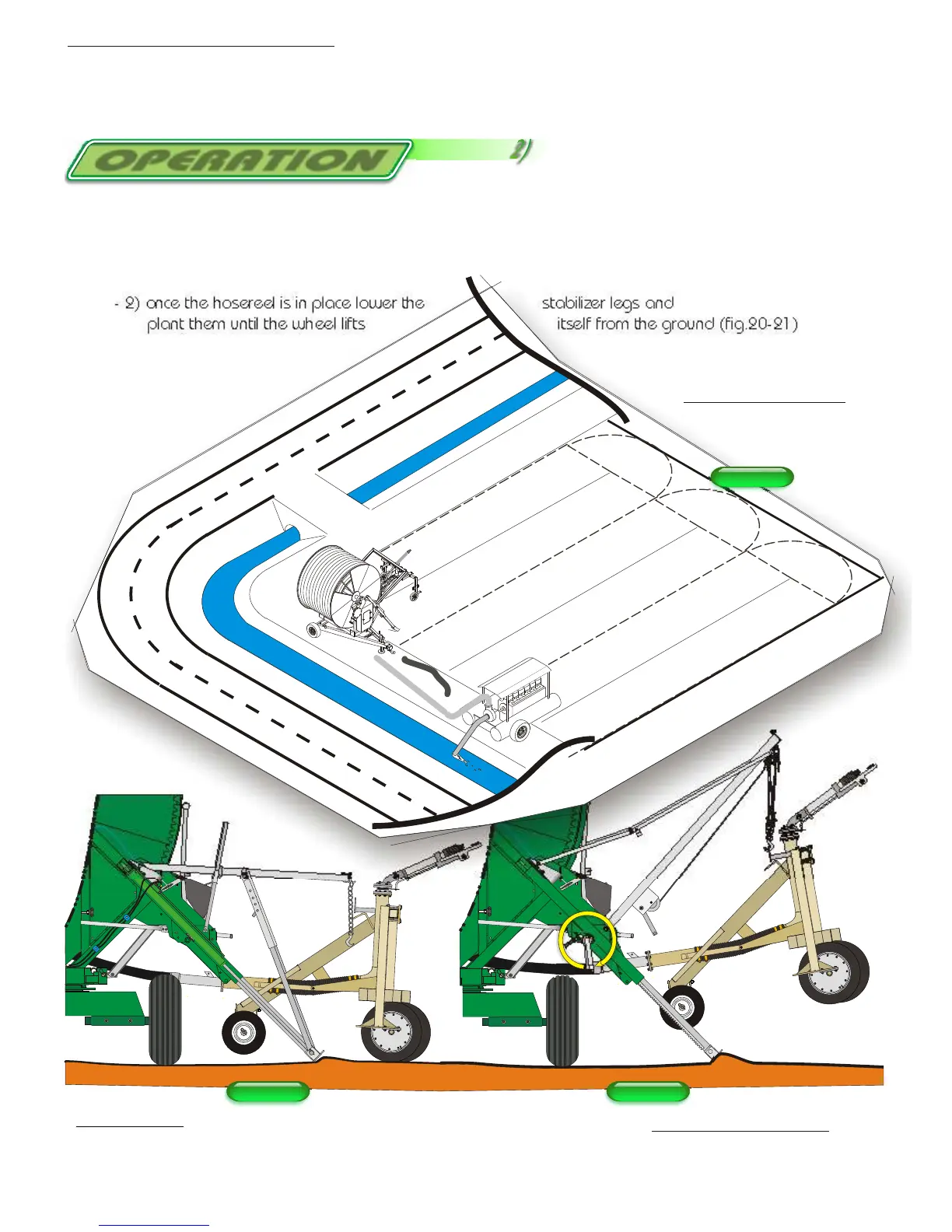

- 1) place the hosereel on the side of the land that you want to irrigate. Revolve the turret until the
trolley is in the direction of the row that you want to irrigate. Attention, makes sure that the drum is
aligned with the trolley and the row to irrigate. (fig.19)
Fig. 21Fig. 21
- 2) once the hosereel is in place lower the stabilizer legs and
plant them until the wheel lifts itself from the ground (fig.20-21)
hydraulic type:
- With hydraulic lever
Manual/automatic type:
- With cranks
Fig. 20Fig. 20
Fig. 19Fig. 19
Hosereel position
Page 18
