Irrimec ST4 - Maintenance; Lubrication Points and Schedule

MAINTENANCE
Lubrication
1)1)

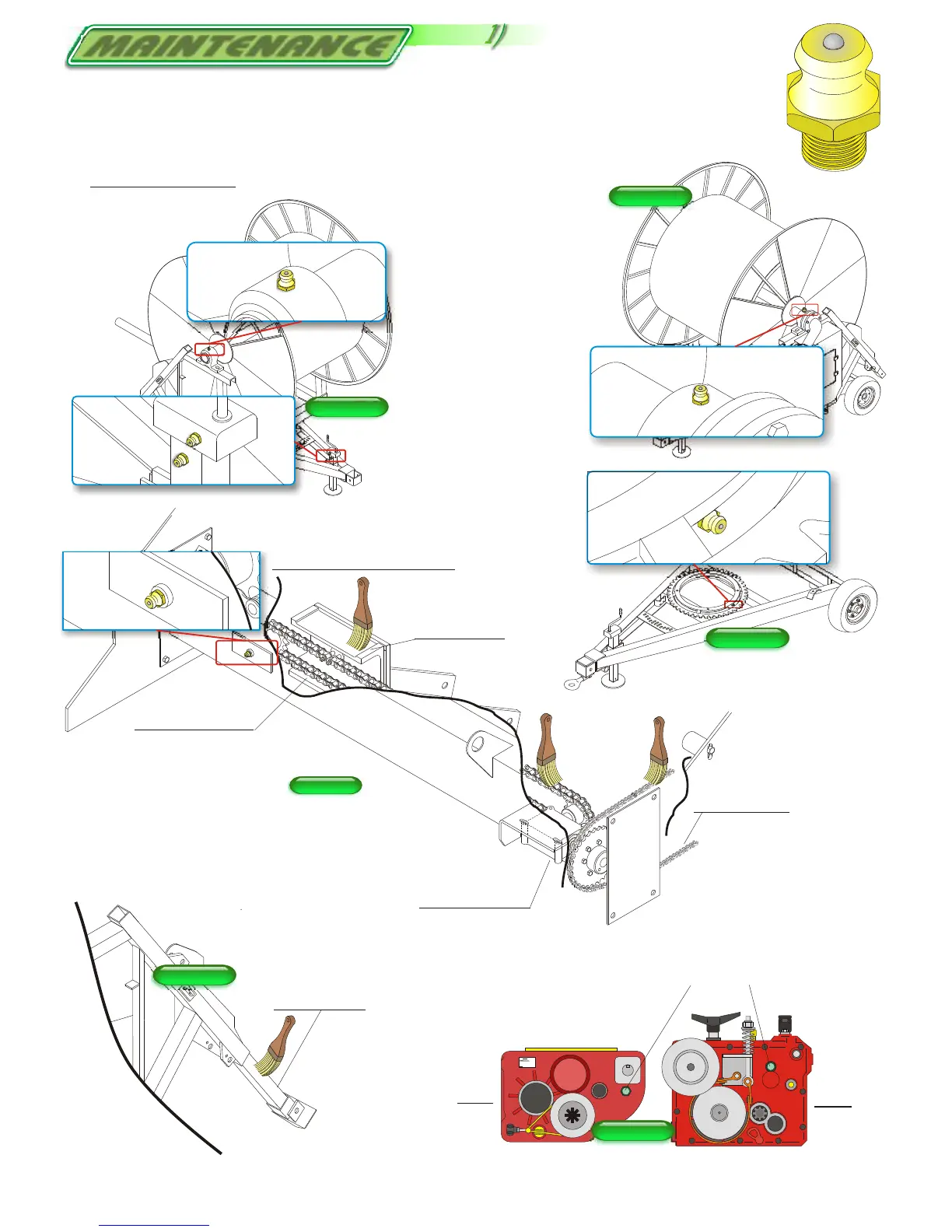

- Lubrication points:
Fig. 55Fig. 55
Fig. 571Fig. 571
Fig. 56Fig. 56
- Drum support
(fig.55-56)
- Jack (fig.56)
- Fifth wheel (fig.57)
Bevel gear pair
Secondary chain
Primary chain
Fig. 58Fig. 58
- Hoseguide mechanism: (fig.58)
- Primary chain
- Secondary chain
- Bevel gear pair
- Fork support
Fork support
Stabilizer leg
Fig. 59Fig. 59
- Stabilizer legs. (fig.59)
Fig. 60Fig. 60
- Gearbox, maintain full (to oil level sight gauge)
with oil SAE 90 (fig.60)
IRCO
B600
Page 31
- To keep your hosereel working efficiently, it important to lubricate with water-resistant
grease periodically each 500 hours.
