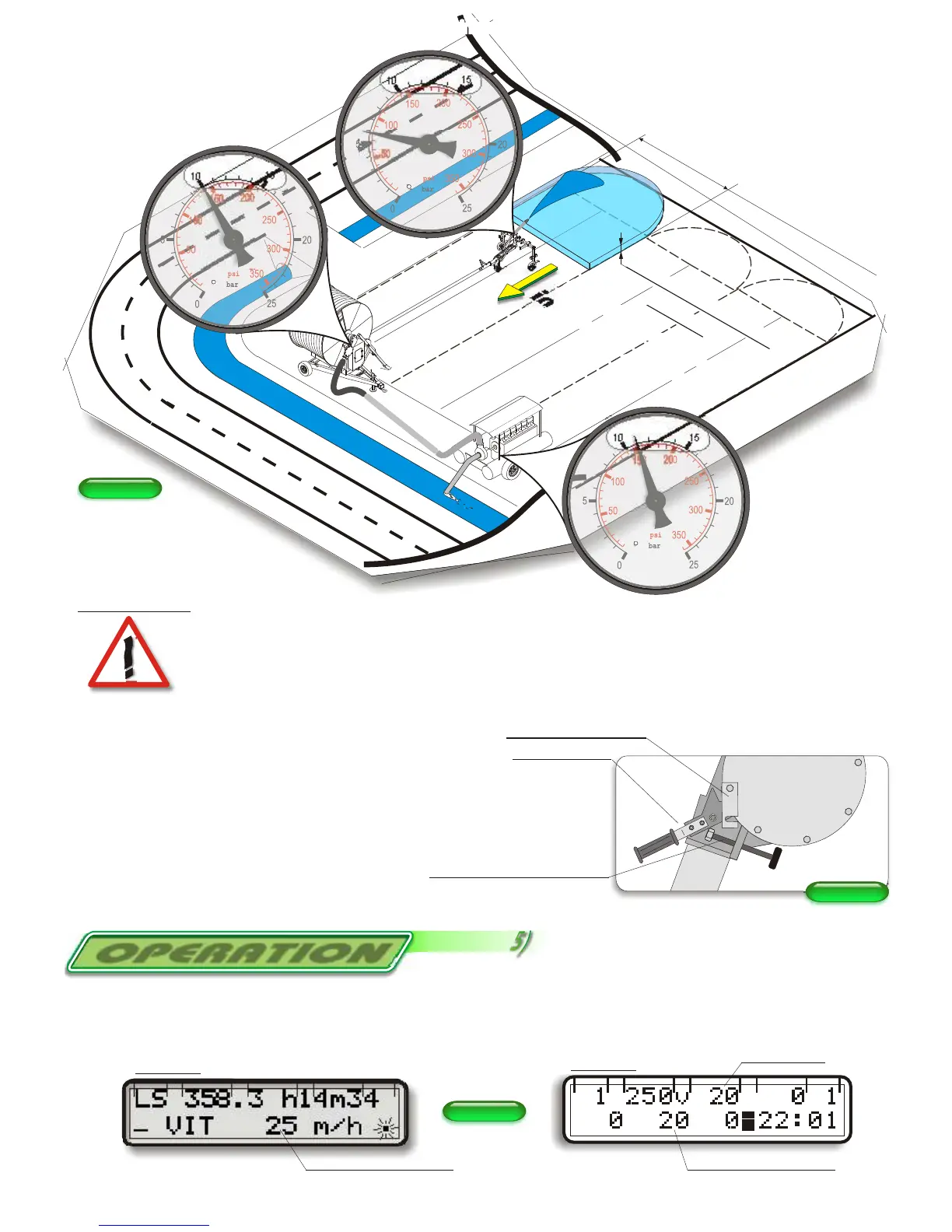

- After all the air is purged from the system and the sprinkler is operating smoothly, you can start the drive system.
- IMPORTANT: For turbine drives, allow the water to go through
the system for several minutes to carry out any trash or debris that
may have been in the mainline pipe. After the system is thoroughly
flushed, start the drive system.To guarantee the reel will function for an entry pressure
not exceeding 10 bars, take into account the pressure loss of the hose, turbine and
layer change. (fig.38)
Fig. 39Fig. 39
By-pass lever
- 5) To close the by-pass progressively with the help of the adjusting
screw, it is necessary for it to clear the stop by-pass plate.
(fig.39) For the versions with electronic speed regulation:
see the respective “DOSIDIS” or “EASYDIS”manuals.
Stop by-pass plate
Adjustment speed screw
0
5
10
20
15
25
50
100
150
200
250
300
350
bar
psi
0
5
10
20
15
25
50
100
150
200
250
300
350
bar
psi
0
5
10
20
15
25
50
100
150
200
250
300
350
bar
psi
OPERATION
Choosing the winding speed
- Now that the hosereel is on, it is necessary to adjust the winding speed. For the versions with
“DOSIDIS” or “EASYDIS” see display (fig.40). For the versions without electronic regulator, read
the tachometer. (fig.41).
Programming speed
Real speed
M
DOSIDIS
EASYDIS
Programming speed
Fig. 40Fig. 40
