1) Spool perpendicular to the wheels and parallel to the furrow.
2) Plant the stabilizer legs, and lower the trolley.
3) Put the gearbox in the unwinding position .
4) Raise the anti-return pawl.
5) Block the turbine by-pass in the maximum open position.
6) Attach the trolley to the tractor and unwind the first 60
meters aligned to the hose reel it. 5Km/h maximum speed without surges.
7) Stop when the white painted part appears on the spool. Allow at least one wrap of tube to remain.
8) Put down the anti-return pawl.
Unwinding Summary
- 2) it is necessary to prepare the hosereel for winding:

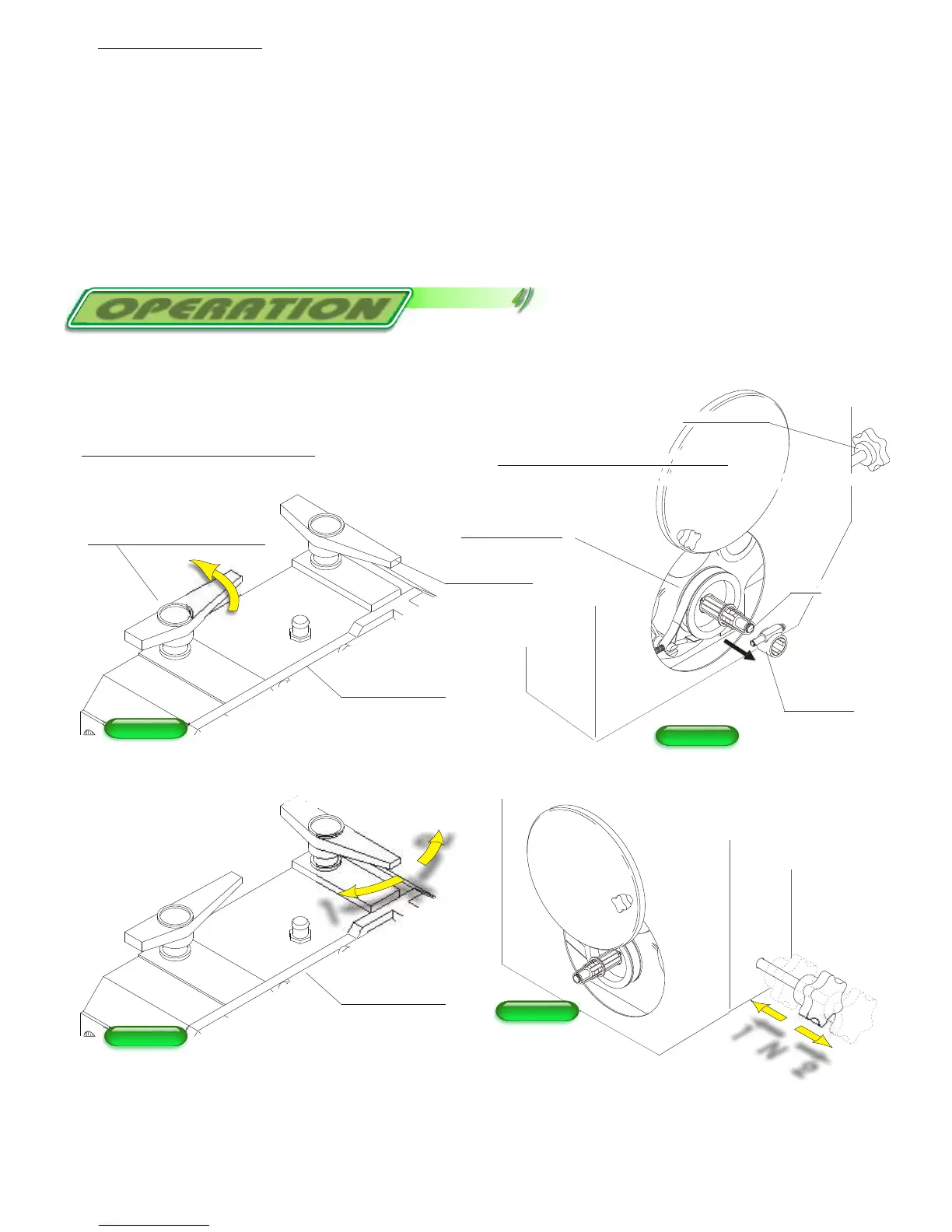

- a) With B600 gearbox (fig.34)
- Put the winding/unwinding lever in winding
position.
Clutch join
IRCO gearbox
Fig. 35Fig. 35
B600 gearbox
Speed lever
Winding/unwinding lever
OPERATION
Winding & start up
Fig. 34Fig. 34
- b) With IRCO gearbox (fig.35)
- Remove the clutch actuator from the power take off.
PTO
N
2
1
Speed lever
N
2
1
Fig. 36Fig. 36
Fig. 37Fig. 37
- To choose the speed. (fig. 36 - 37)
(for the different speeds of winding, see page 24 - 25)
- 1) after unwinding the hose, put down the anti-return pawl. (fig.26)
- 3) it is necessary to connect the hosereel to the pumps. (fig. 38)
- 4) Open and lock the by-pass lever. (fig. 28)
- 5) Start the pumps (according to the pump instructions.)
B600 gearbox
Page 22
4)4)
