Irrimec ST4 - Page 20

For the hydraulic version, when you plant the stabilizer legs you lower the trolley. (fig. 20)
For the manual version, manipulate the winch. (fig. 21)
For the automatic version proceed as follows:
Anti-return pawl
Power take off wheel
Stop lever

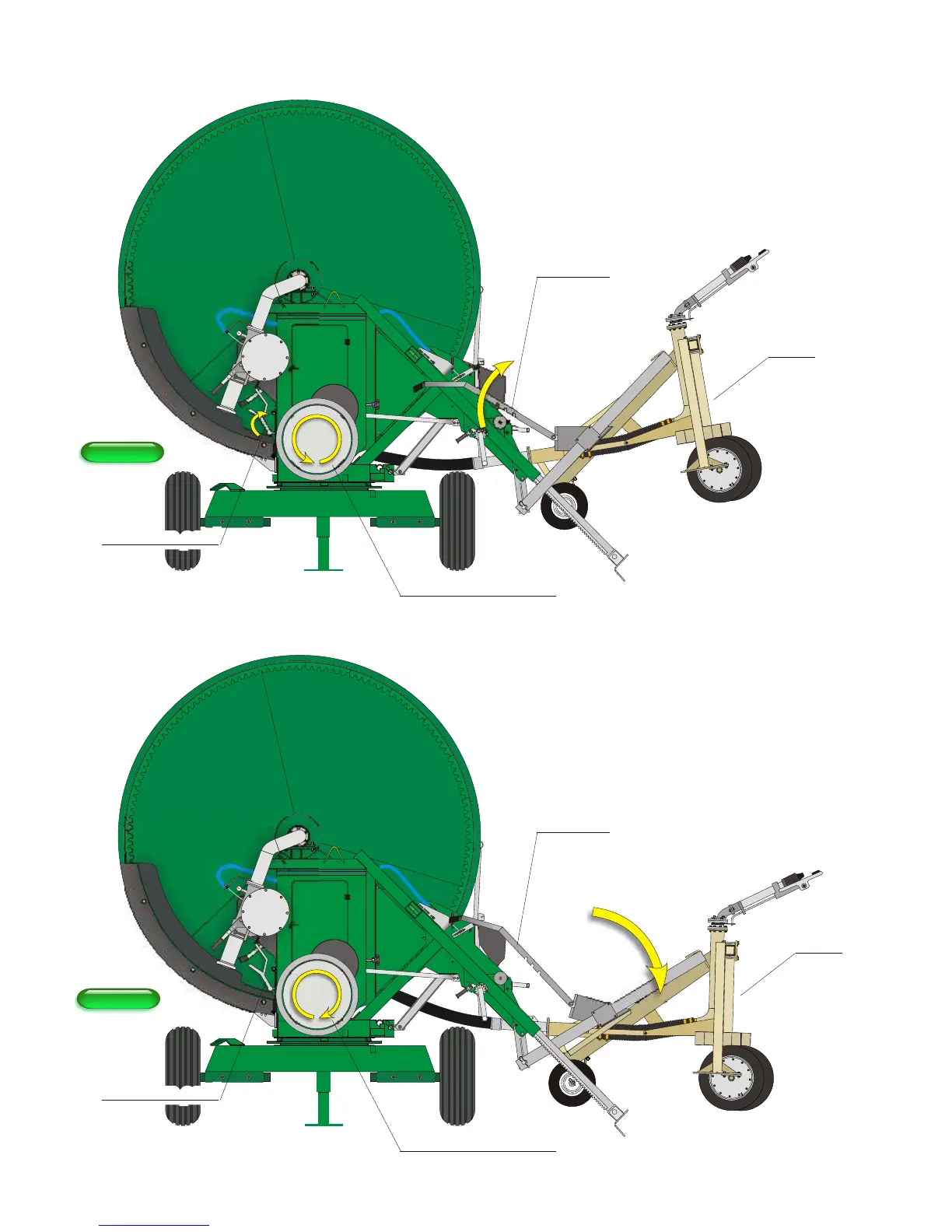

- a) Place the “Power take off wheel” on the power
take off. (fig. 22)
- b) A light counterclockwise rotation will release
the anti-return pawl and the
stop lever. (fig. 22)
Anti-return pawl
Power take off wheel
Stop lever
Fig. 23Fig. 23
Trolley
Trolley
- c) Let the wheel spin while braking it to lower
the trolley. (fig.23)
Fig. 22Fig. 22
