Rolling up with power take off
8)8)
OPERATION
- All the Irrimec hose reel models are provided with a power take off (pto) shaft to allow manual rolling up.
This operation must be carried out only in the event of extreme need: for
a normal operation of the Hosereel, it is absolutely discouraged
to roll the tube up completely from the start.
- In case the turbine or the motor fails or, in the case of a
problem on the computer, or in case of a relaxation
of the tube or a trancanage failure, it is possible to roll up
the tube to move the reel.

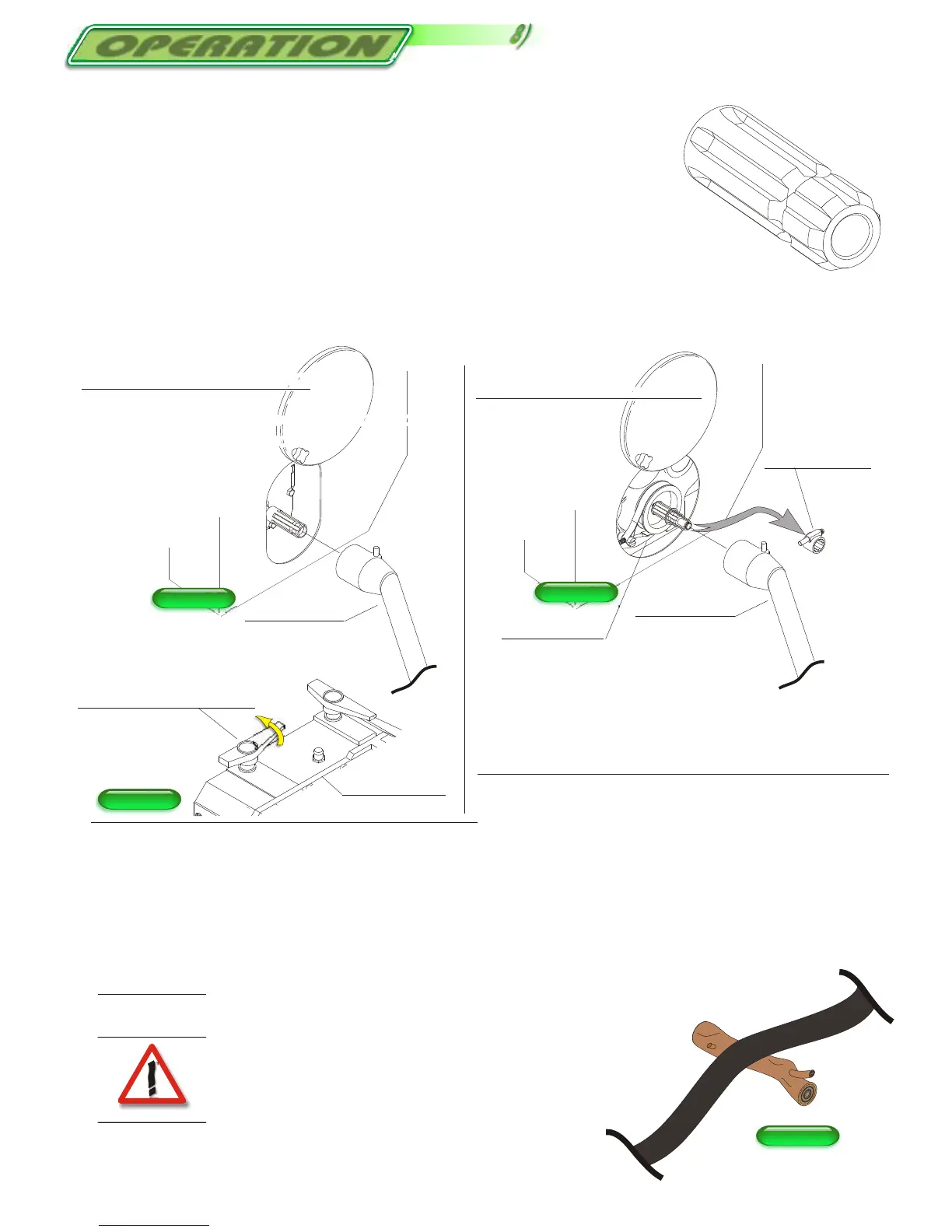

- a) With B600 gearbox(fig.42)
1) Insert the crank, the wheel, or the universal joint
to the power take off shaft.
- b) With IRCO gearbox(fig.43)
1) Remove the clutch actuator from the power take off shaft.
2) Insert the crank, the wheel, or the universal joint
to the power take off shaft.
Clutch actuator
Universal joint
Universal joint
Fig. 45Fig. 45
2) Insert the winding/unwinding lever in
winding position. (fig.44)
B600 gearbox
Winding/unwinding lever
IRCO gearbox
3) Start the winding with a constant speed.
4) Make sure the wraps are tight to one another. And that the hose guide mechanism is not in advance or
late in comparison with the hose.
5) At one meter from the end of the tube, stop the tractor and use the crank to finish rolling up the last
meter with the hand wheel.
- ATTENTION: The hose retention bar in this case does not stop the Hosereel. It is up to the
user to stop the tractor in time.
- ATTENTION: If the hose remained unwound for a long time unrolled or if it
rained sticking the hose on the ground, before winding with
the PTO, raise the hose by putting pieces of wood at regular
intervals under the hose.
- ATTENTION: Never roll up the tube with the PTO if the hose
is not under pressure.
Fig. 42Fig. 42
Fig. 43Fig. 43
Fig. 44Fig. 44
Page 26
- To carry out the winding operation with the power take off, follow these instructions:
