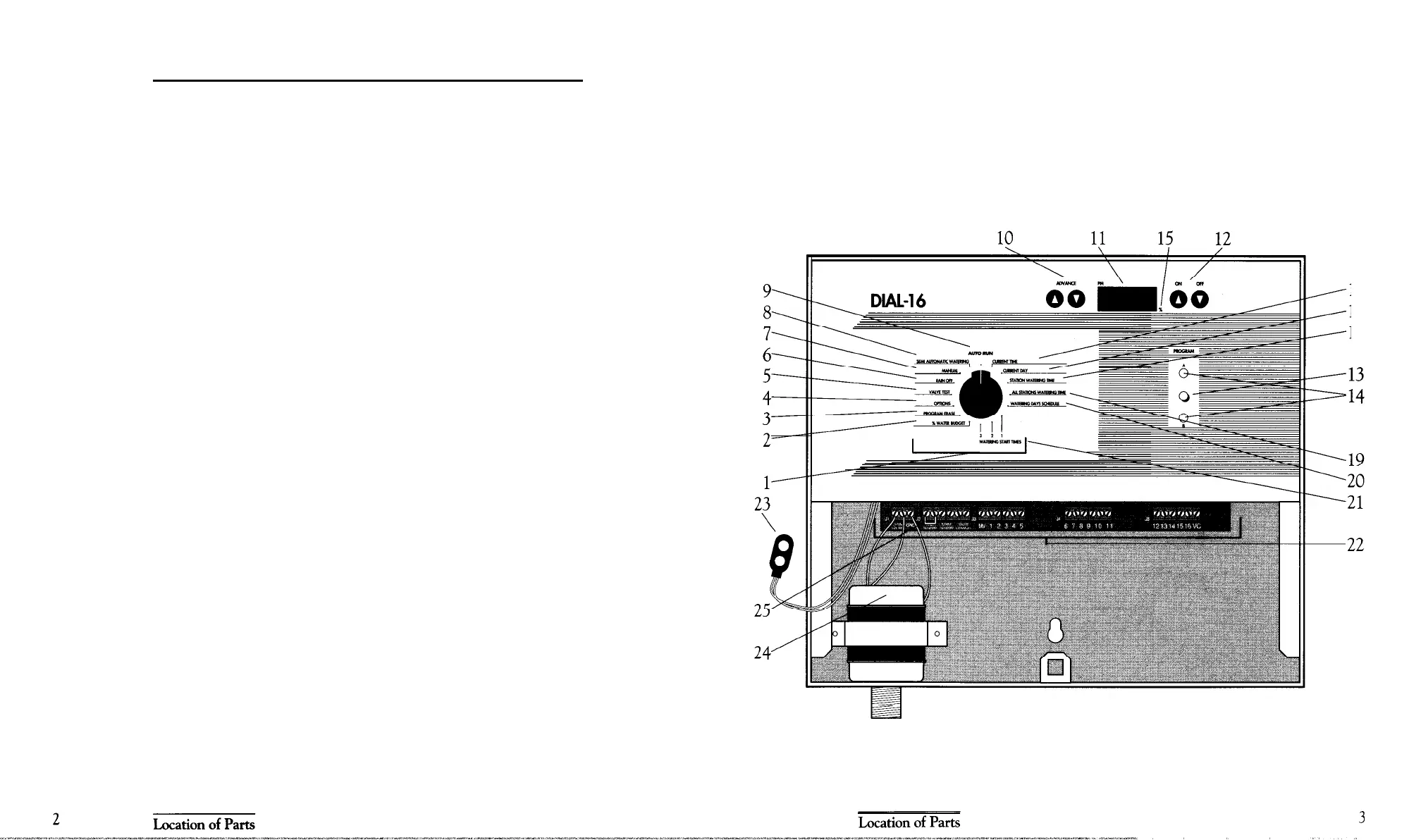

LOCATION OF
PARTS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
Function Dial:
For selecting programming and operating functions
Water Budget:
For single-entry increase or decrease of watering times for all
stations within a program by a selected percentage (does not alter program)
Program Erase: For erasing programmed information
Options: For selecting additional features, 6-day watering schedule, seconds,
loop and/or hours
Valve Test: For running a valve test for all stations from 1 to 9 minutes
Rain
Off: For turning off output to all stations manually or programmable to
7 days off
Manual: For true manual operation
Semi-Automatic Watering: For activating a manual watering cycle that uses
the programmed station watering times
Auto Run: Position for automatic operation
Advance Buttons: For programming and operating functions
Digital Display: For viewing time and program information
On/Off Buttons: For programming and operating functions
Program Select Switch: For program selection
Program LEDs: To indicate what program is currently operating
Water Budget Indicator:
Shows whether water budgeting for the program
selected is other than 100%
Current Time: For setting current time
Current Day: For setting calendar day
Station Watering Time: For setting individual watering time for each station
All Station Watering Time: For setting watering-time for all stations with
one entry
Watering Day Schedule: For setting which days to water
Watering Start Times: For setting the times each watering cycle will start
Terminal Strip: For hook-up of transformer, valve wires, common wire,
pump start and sensors
Battery Snap: For hookup of 9V alkaline battery to keep time during
power failures
12OV/24V transformer
Short Wire:
Must be installed if sensor is not used
16
17
18

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Irritrol Dial Series and is the answer not in the manual?

Irritrol Dial Series Specifications

General IconGeneral
Start Times3 start times per program
EnclosureIndoor/Outdoor
Rain Sensor CompatibleYes
Master Valve/Pump StartYes
Cycle and SoakYes
Manual OperationYes
Enclosure RatingNEMA 3R
Zones4, 6, 12
Programs3 independent programs
Watering Schedule7-day calendar
Power SourceAC power
Backup Battery9V battery
MountingWall mount
ProgrammingDial
Water Budget10% to 200%
Watering Duration1 minute to 6 hours per zone
Backup MemoryNon-volatile memory
