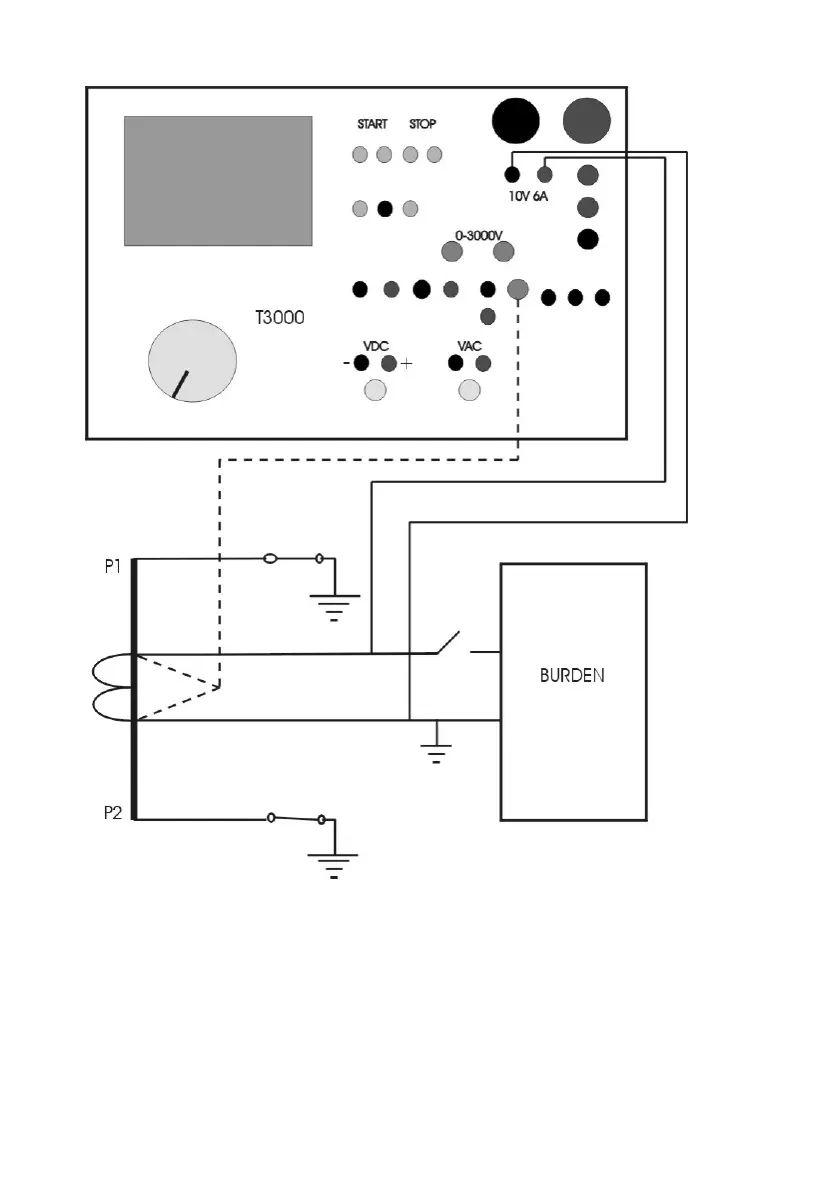

The CT secondary is disconnected, and the DC current output is
connected to the winding (as shown) or to the burden. If the test
is on the primary resistance, both ends of the primary should
be grounded: this nulls the effect of the primary inductance.
For the connection, use the following cables:
A) Output connection:
- N. 2 Low current connection cables, 10 sq. mm, 4 m long.
Terminated on one side with the current clamp.
