ISA T 2000 - 5: VT Tests: Secondary Over-Current Protection

DOC. MIE11110 Rev. 5
Page
66
of
110
1.2.5: VT tests: secondary over-current protection

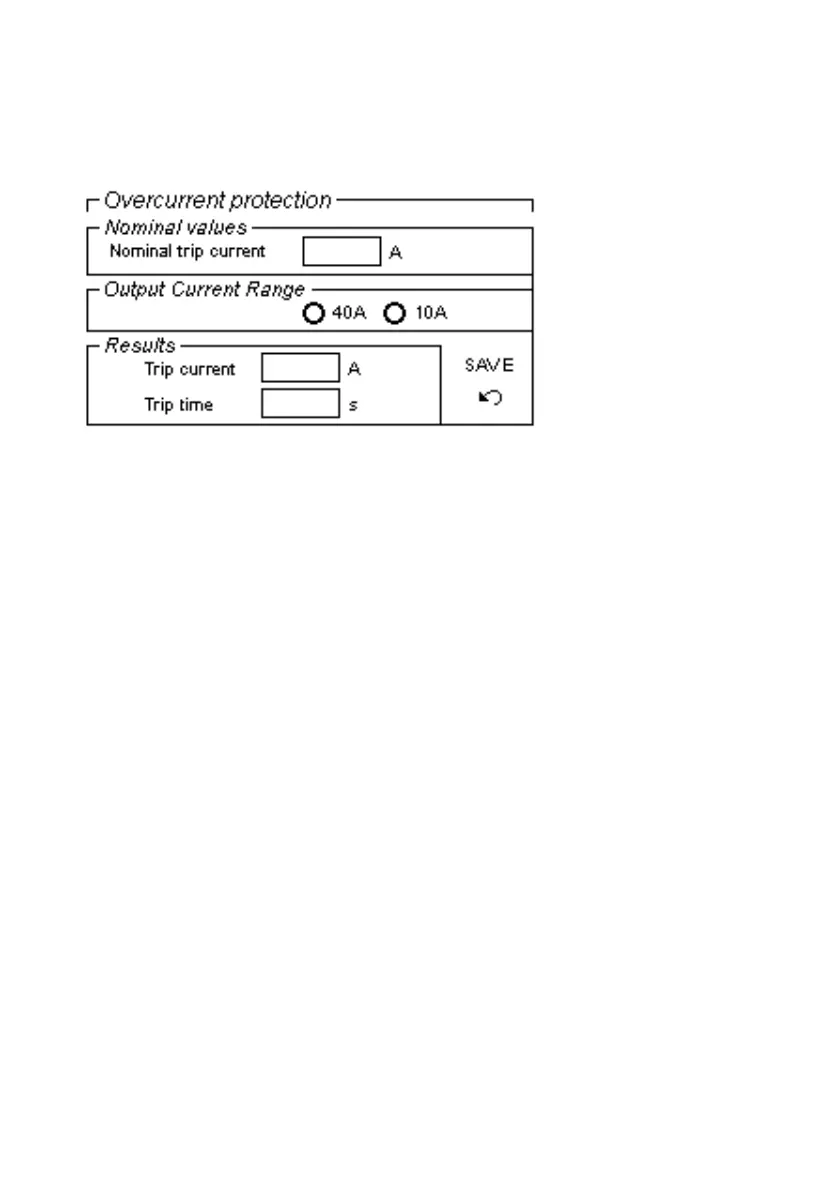

When this test is selected, the following menu is displayed.
Purpose of the test is to verify the setting and the trip timing of
the overcurrent protection that protects each phase of the TV
secondary.
The test parameter is the nominal trip current of the protection.
The connection diagram is the following.
