4 Delivery status from the factory (quality safety)
To test the machine accuracy of the CNC machine the circular form measuring system
Renishaw QC10 is used.
With this system will be the accuracy of axles all produced CNC machinery / CNC base
machinery checked before delivery.
Circular form measuring system QC10
The assembly of the QC10 is possible at each machine, and takes only a few minutes to
complete. The measuring is controlled via a simple, standard CNC program.
The data are obtained and evaluated in the diagnostic software and the errors with their
size and the corresponding impact on the overall accuracy are shown in graphical / tabular
form.
The form of recognized circles (in all three interpolation planes XY / XZ / YZ) provides
guidance on any existing machine error:
tracking error / position tolerance
straightness error / perpendicularity
measure error / backlash
quadrant transitional / circular form tolerance
The measurements are made depending on the size of the measured axis with a radius of
50mm, 100mm, 150mm and 300mm. It is always the shortest axis considered.
The delivery of any CNC machine made only when all parameters are within the prescribed
limit. The results of the measurements are machine-or order-saved and archived.

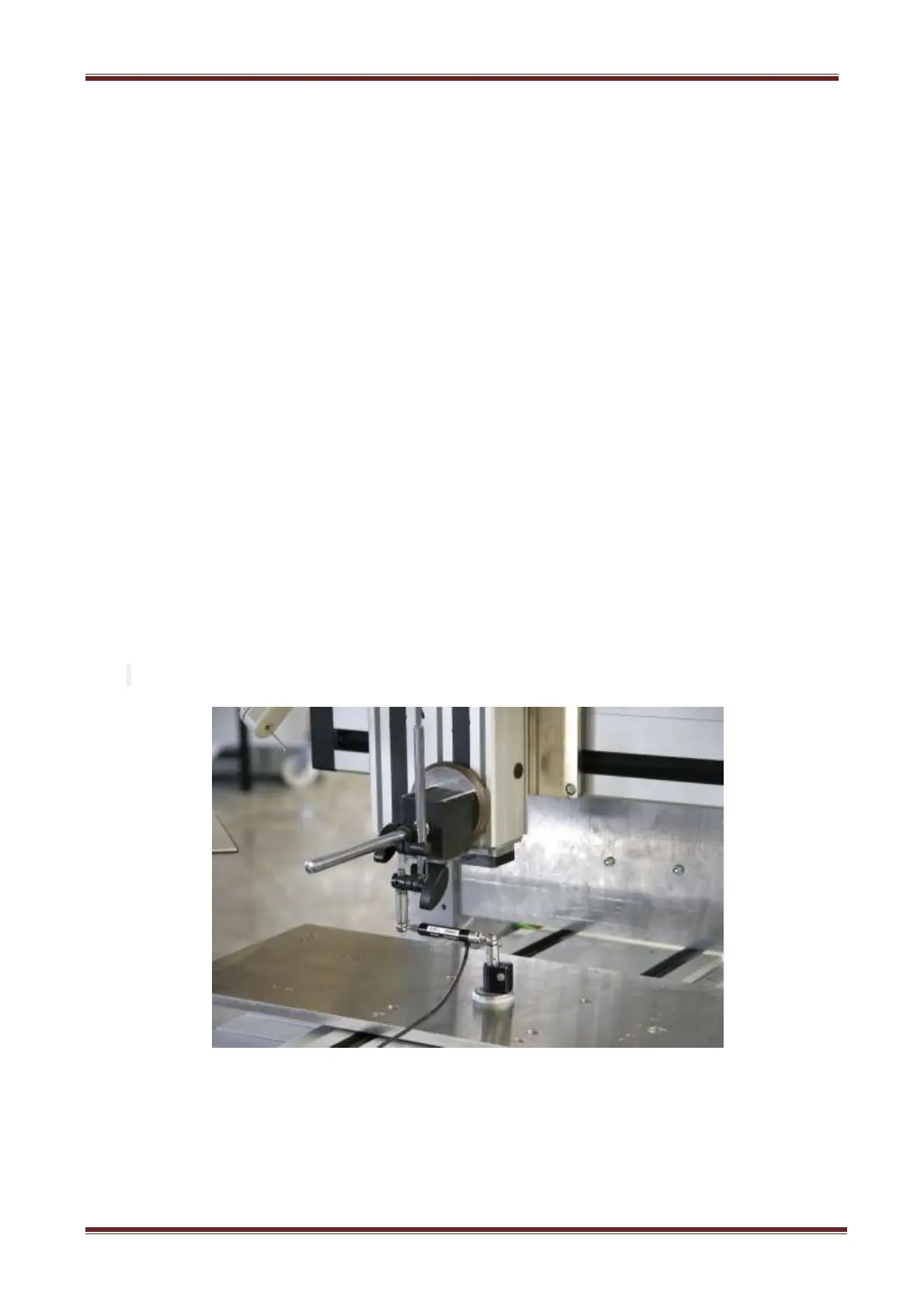

Picture: circular form measure with Renishaw QC10
