ICP 3020 / ICP 4030 iMC-P Operating instruction
page 12
5.2 Transport of the CNC machine
Remove the transport lock from the frame feeds. Use only appropriate lifting equipment
(fork lift, trucks, see picture). Lift the machine only from below and do not pull up on the
cover. In case of a later transfer, please make sure that the net and connection cables are
not damaged.
Unplug the power supply cable before each transport.
Take care during transport that the machine is not suspended to heavy
vibrations.
Keep the triangular wrench always outside of the machine during
transportation.
5.3 Installation of the CNC machine
The clamping / processing area of the CNC machine and all axes are aligned precisely at
right angles from the factory.
Never loosen the fastenings of the axles or the mounting bracket, in
which the transverse axis (X-fitted axis). Otherwise, the machine must
be re-measured by a technician from manufacturer isel Germany AG.

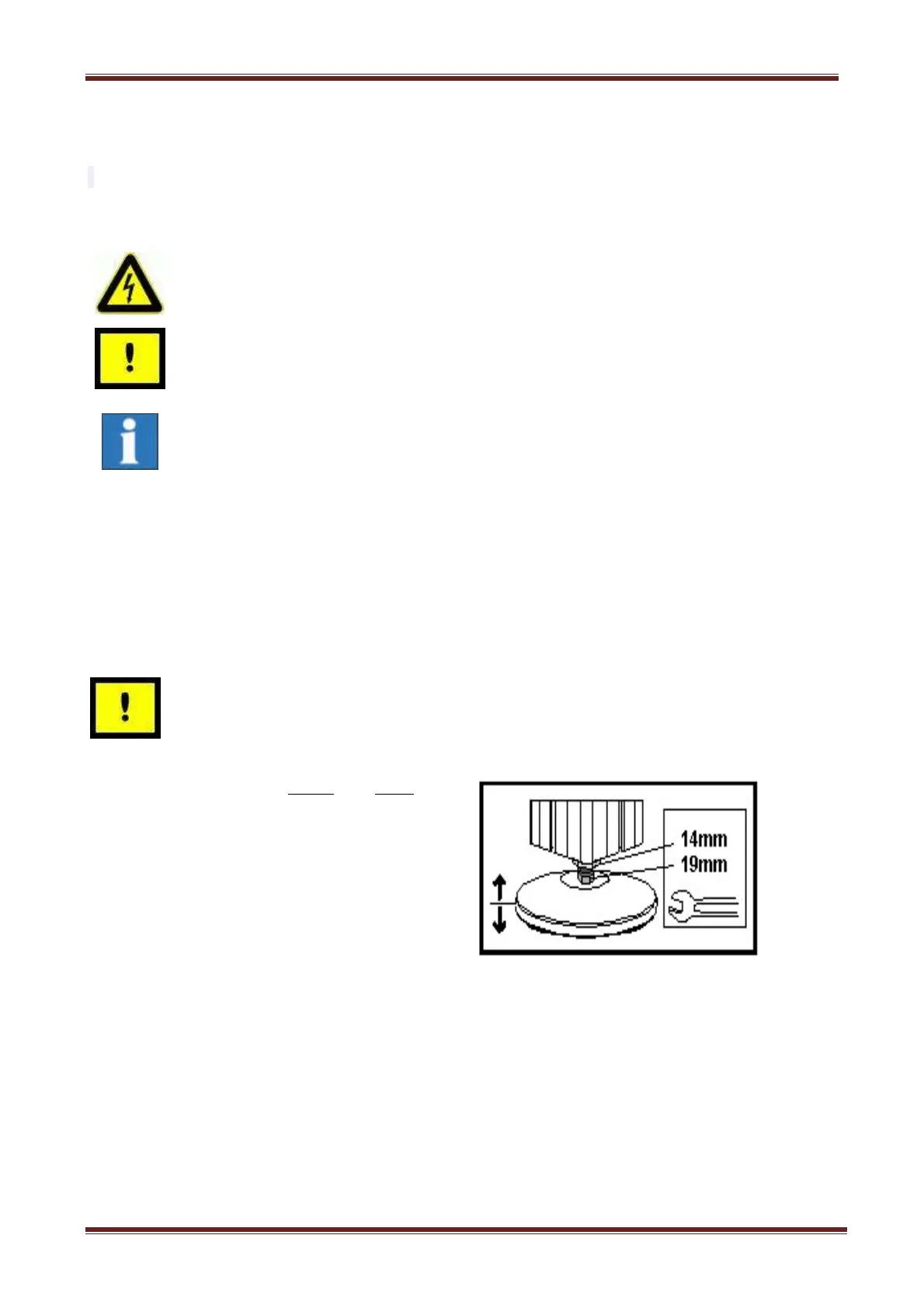

Place the machine on a plane and solid
area. You can compensate the
unevenness of the floor / table with the
adjustable feet. For precise alignment
of the machine you need a spirit level
with an accuracy of at least 0.1 mm/m.
Save the height of the machine feet
with the lock nut.
