ICP 3020 / ICP 4030 iMC-P Operating instruction
page 36

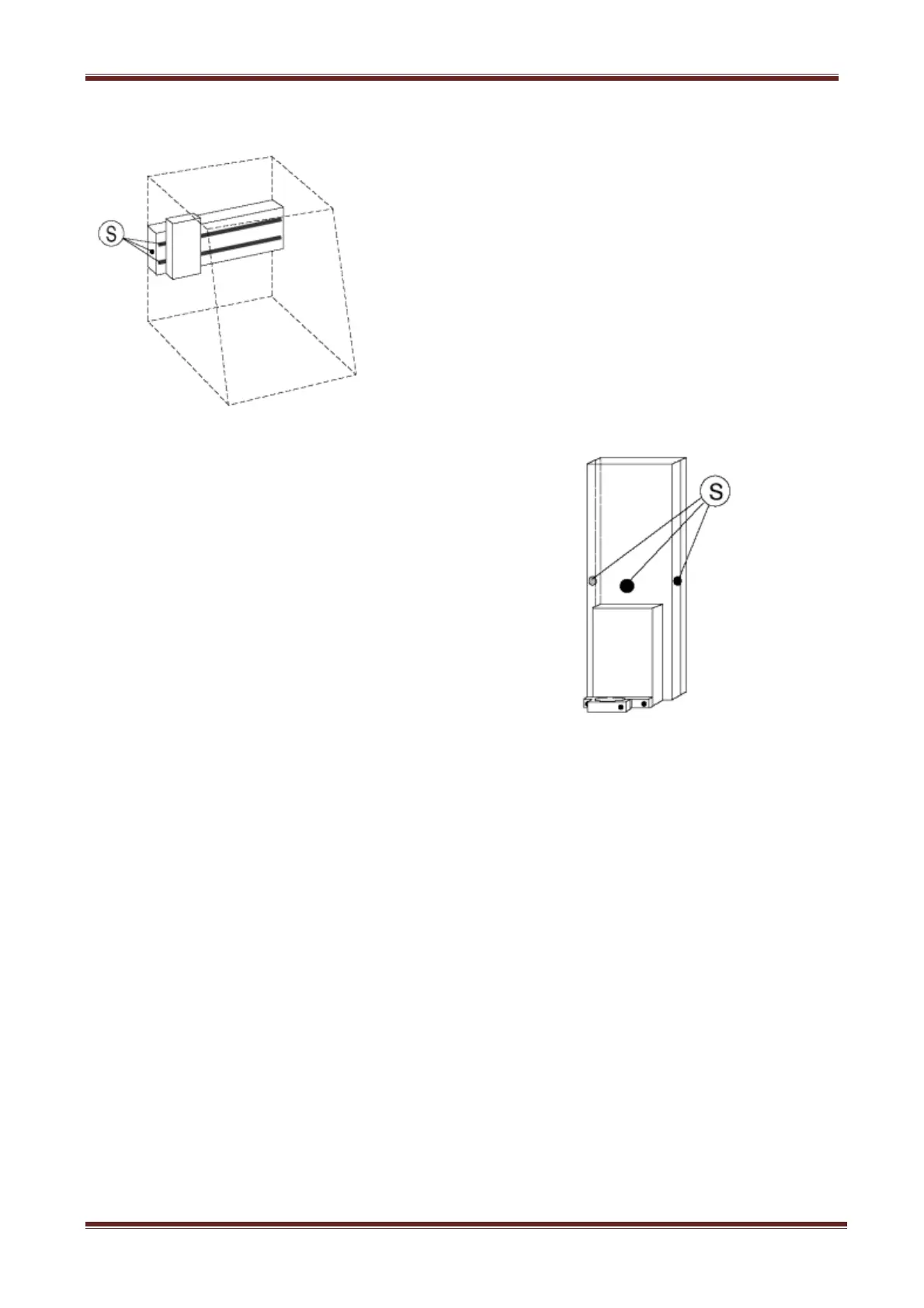

To lubricate the X-axis, move the sledge to the left*.
Remove the plastic plug on the left side of the
machine and lubricate through the now visible
lubricating nipple.
You access the shaft guides again through the
sealing lips.
At the Z-axis, you must first take the tooling
machine from its support. Remove the three plugs
and push the sledge completely down*. You can
apply some oil onto the shaft guides through the two
side holes.
The lubricating nipple for the drive is now behind the
front opening.
