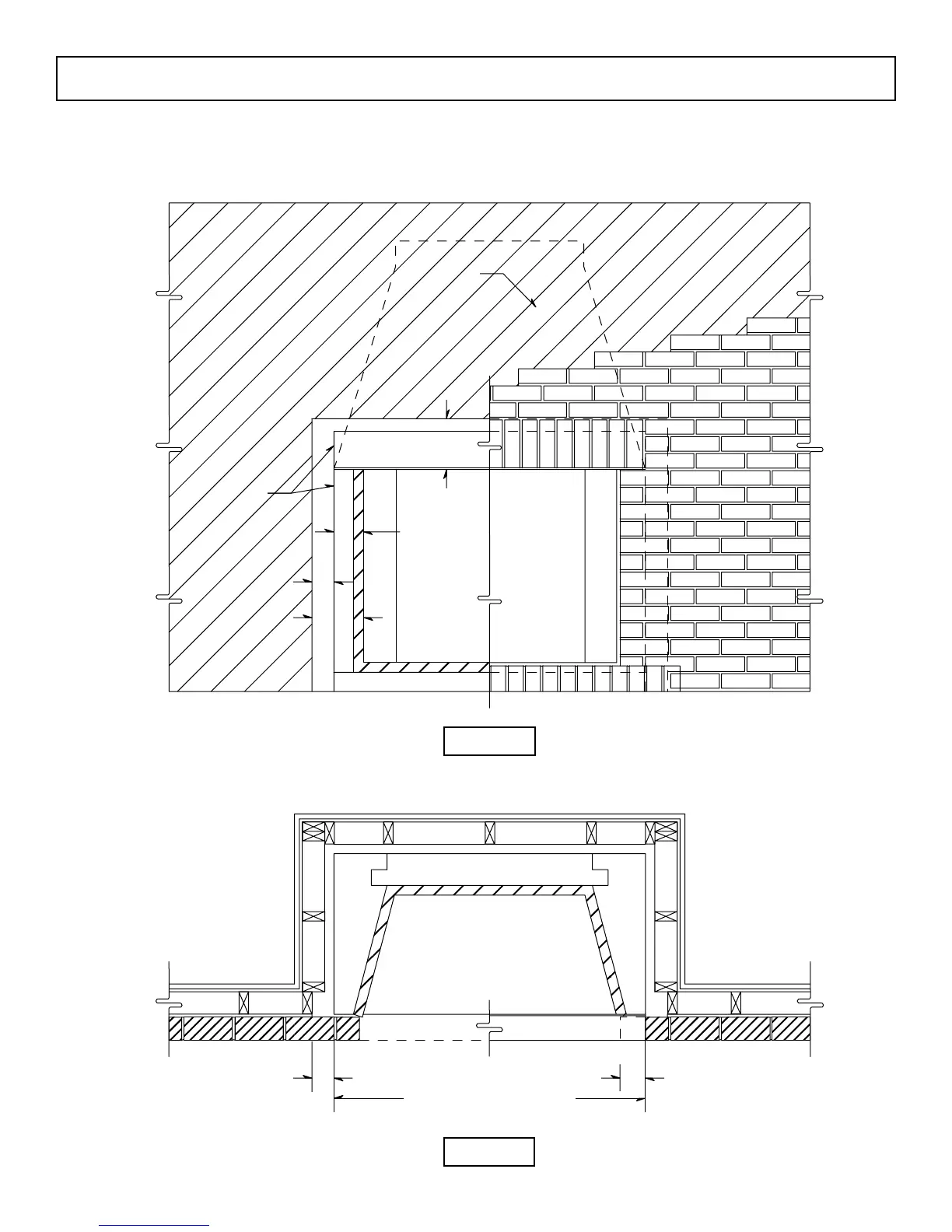

Interior Full Masonry Veneer Finished Fireplace Fronts
Isokern unit width dimension
Extent of Steel L
4” Bearing
3 ½” minimum
clearance
Steel L
Wood (Flammable)
Sheathing
8” min
Steel L
Masonry Veneer
Masonry Veneer
End of Isokern
firebox unit and
steel L align
3½” min
4½”
8” min
Figure 30
Figure 31
