ISO-FLAMES Gas Log Burner Installation
The gas control valve is installed on the right side of the ISOFLAMES gas log burner. If the gas supply line comes into the left side
of the replace, the gas supply line must continue to the right side of the replace (as close to the rear re box wall as possible) and
terminate behind the gas valve inlet using rigid 1/2” black iron pipe. At this point only the 3/8” aluminum manifold can be used to
complete the connection to the gas control valve. It may be necessary to cut and reare the aluminum manifold to the desired length
for proper positioning of the burner pan.
Step 1. Remove all ashes and debris from replace.
Step 2. Be sure gas control valve to replace is in the OFF position.

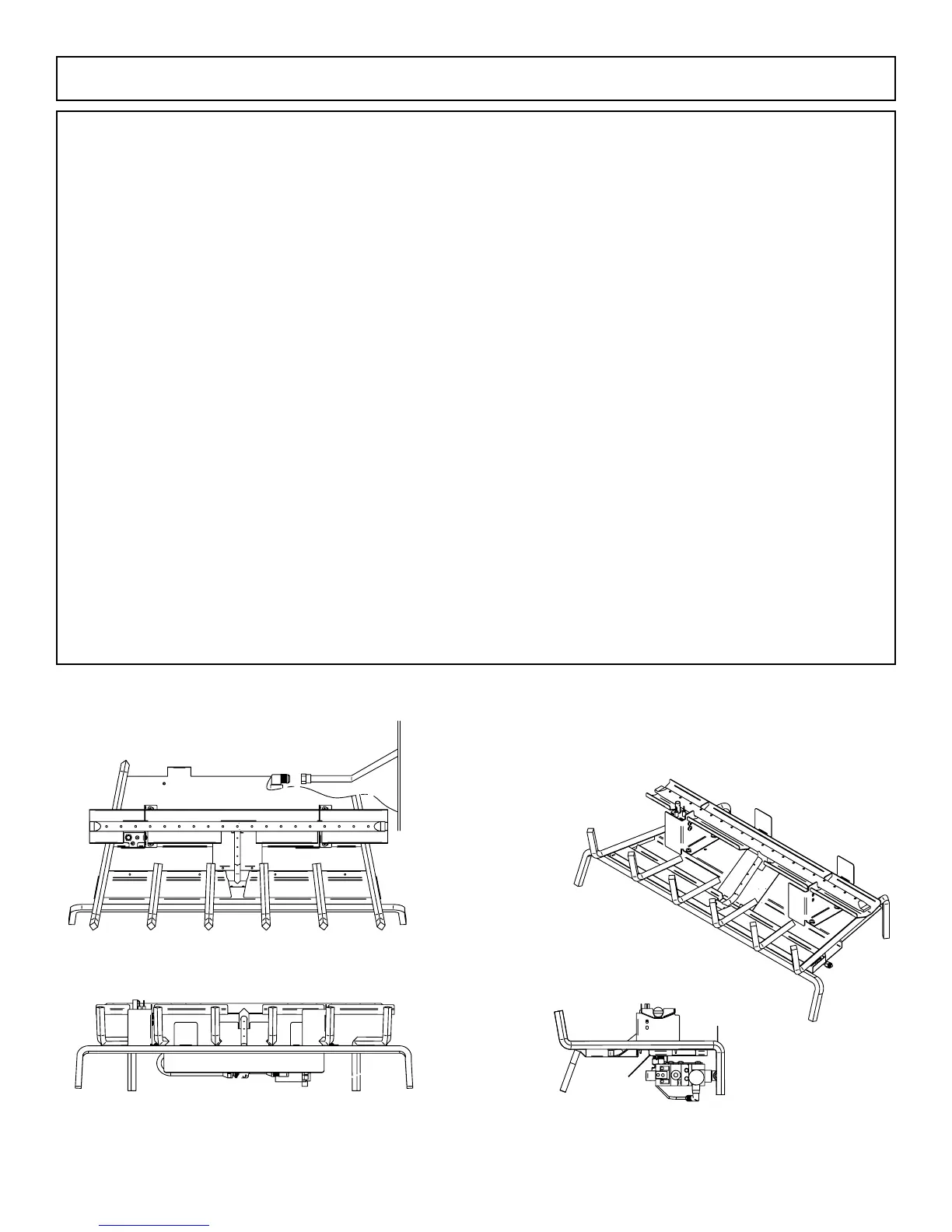

Step 3. Place the ISOFLAMES gas log burner in replace with grate spokes toward front of replace and vertical bafe should be in
line with chimney.
NATURAL GAS OR LIQUID PROPANE
A. Apply pipe thread sealer to gas supply line coming into replace and install 3/8” x 1/2” brass supply tting; tighten.
B. Install longer end of ared aluminum manifold with 3/8” brass air nut to 3/8” x 1/2” brass supply tting connected to
gas supply line coming into replace, and shorter end to rear of gas control valve; tighten.
C. When connections are complete, NEVER TEST FOR GAS LEAKS WITH A LIT MATCH OR FLAME. Slowly turn gas
control valve to the ON position and use 50/50 soap and water solution with a toothbrush or small paint brush over all gas connections.
A leak will be evident by observation of bubbles on gas connections. If bubbles are observed, retighten leaking gas connectors.
Gas Log Installation:
See pages 36 & 37. Logs are reversible for either a classic bark look, or a rugged split look.
WARNING: Failure to position items in accordance with these diagrams or failure to use only parts specically approved with the
ISOFLAMES gas log system may result in property damage or personal injury.
