REV 1 - 0909221329
OPTIONAL ISOFLAME WALL SWITCH INSTRUCTIONS

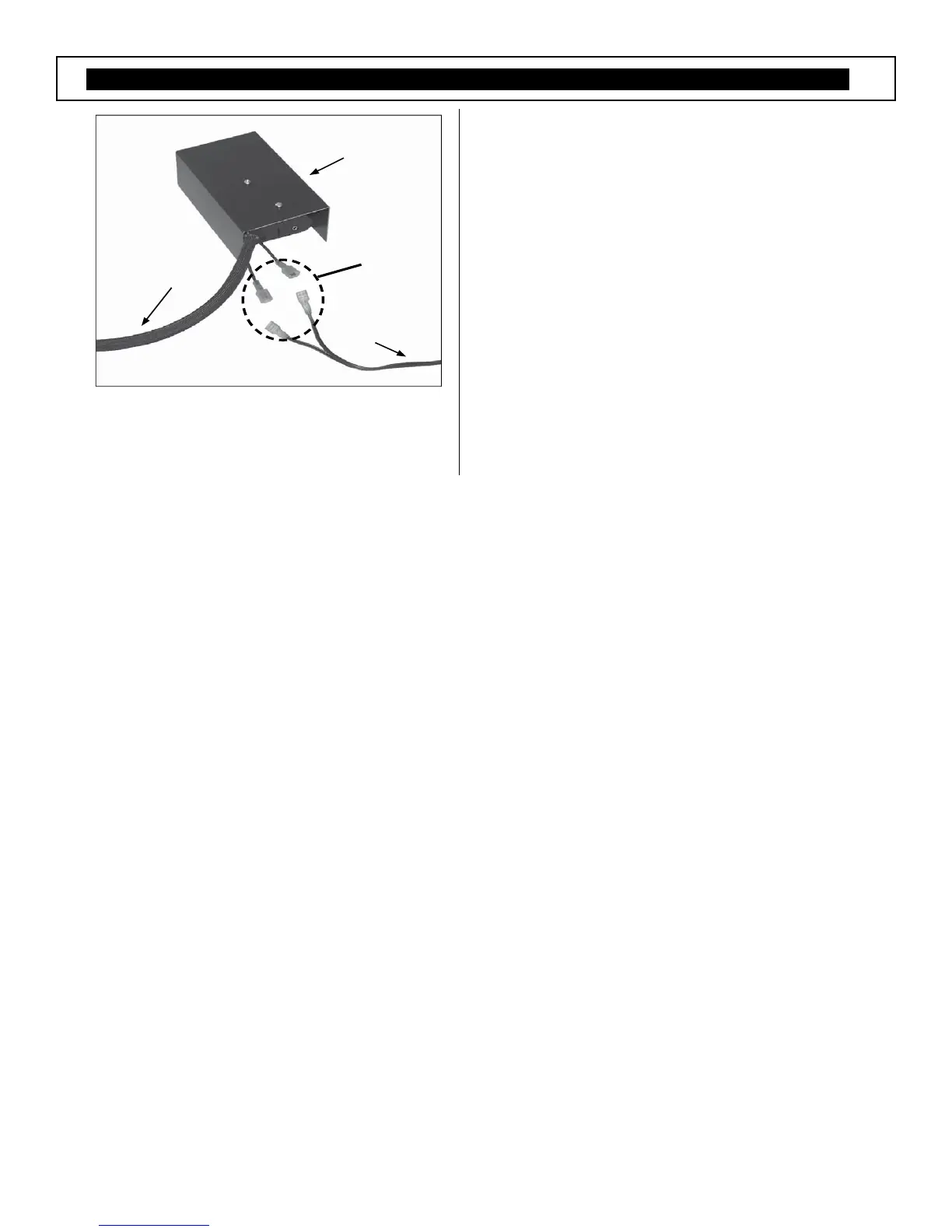

Fig. 1 - Connect wall switch to remote receiver box
Installation
1. Install the wall switch in the desired location within
15 feet from the burner system in the fi replace.
2. Run the supplied wire from the wall switch to the
burner system.
3. Locate the two wires coming out of the rear of the
remote receiver box, and connect them to the two
wires routed in from the wall switch (see Fig. 1).
CAUTION: Do not supply 110V AC to the wall switch
or burner system. This is a self contained circuit.
Operation
When using the wall switch to operate the burner
system; the control located on the remote receiver
box must be in the OFF position.
Alternately; when using the remote system, the wall
switch must be in the OFF position.
Connect here
Remote
receiver box
Wire harness to
burner system
Wires from
wall switch
