IST 18.BF200D - Page 33

18-33
18. BF200D • BF225D • BF
250D iST
®

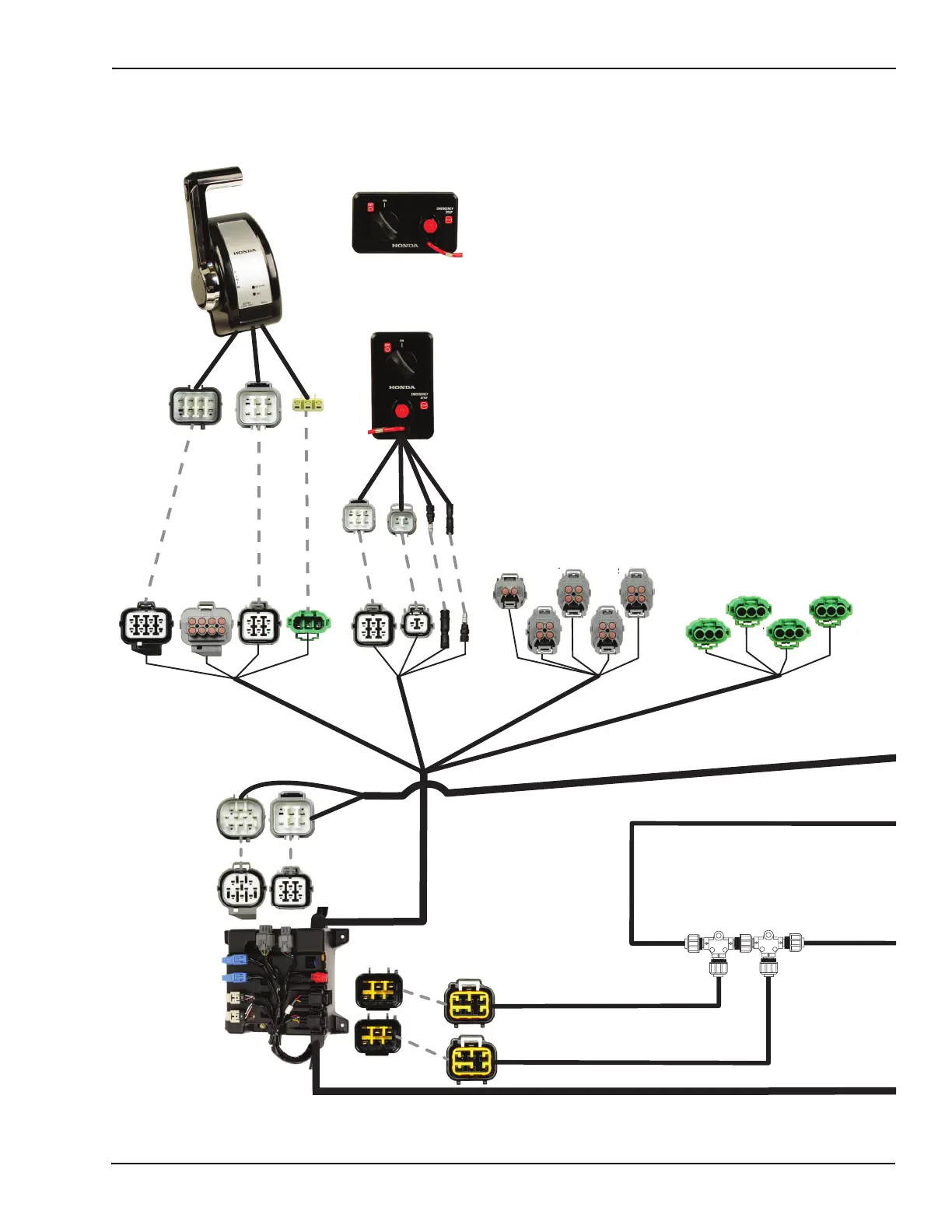

SINGLE ENGINE, TOP-MOUNT CONTROL, TWO CONTROL STATIONS (BF200D•BF225D•BF250D)
Key Switch Panel Kit
06323-ZVL-710
Key Switch Panel Kit
06323-ZVL-700
OR
1
2
3
4
1
2
3
4
Main
Control Case
(part of kit)
See chapter 16 NMEA Instrumentation
for adding devices.
Interface Cable Kit (2)
06653-ZZ3-730HE 10-ft
4
4
Trunk Cable
32580-ZVL-600 18-ft
32580-ZVL-700 24-ft
32580 ZVL-800 30-ft
3
3
3
3
2
2
3
3
3
3
3
3
3
3
3
3
3
N2K Network Cable
06328-ZZ3-760AH10-ft
Remote Control Kit- Top-Mount Single
06240-ZVL-601
NOTE: Remove the terminator from the main control case and replace with
the dummy coupler provided in the second station kit (see page 18-50).
