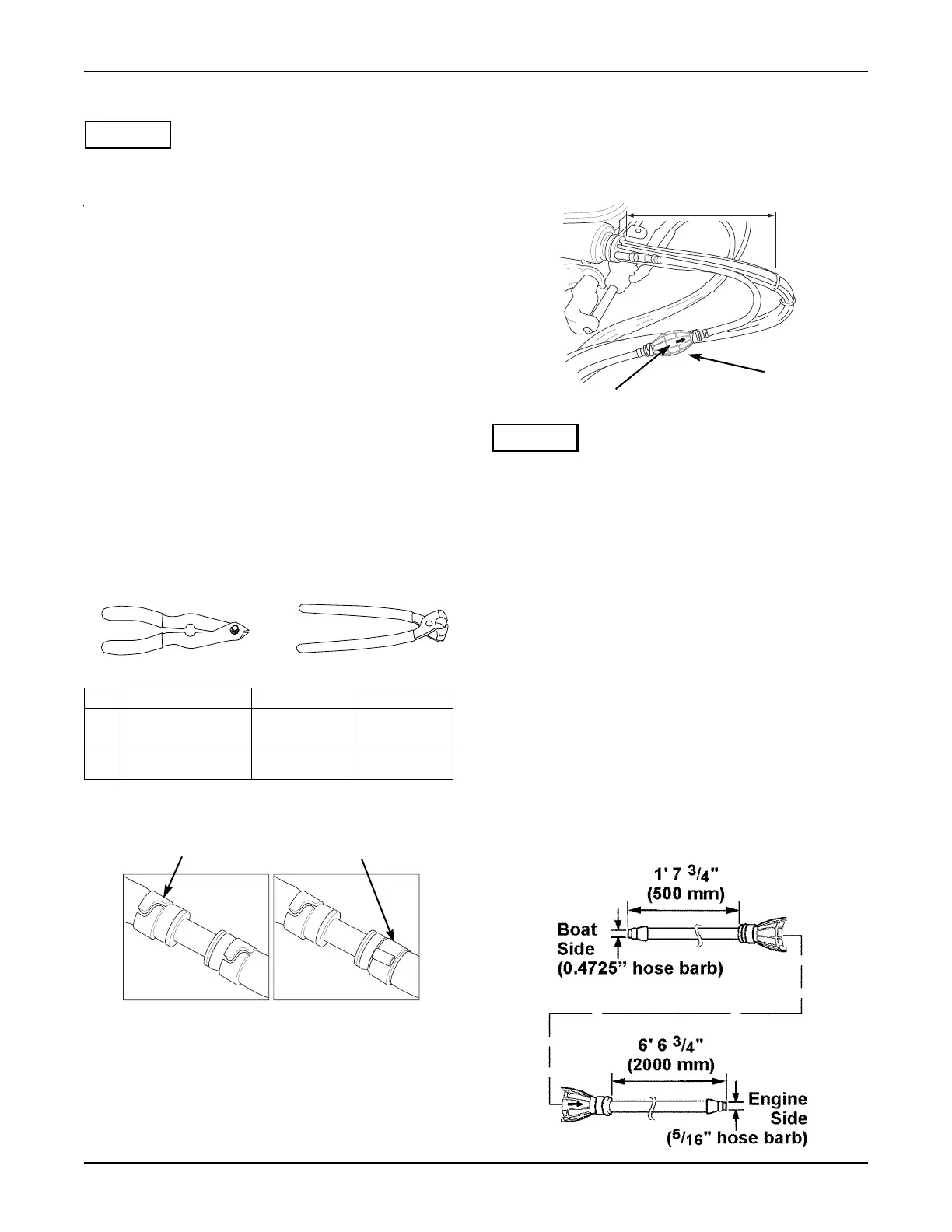

18-52
The primer bulb must be positioned so that the
outlet end is higher or can be positioned higher
than the inlet end. The arrow on the primer bulb
must point upward toward the engine.
ENGINE SIDE
Fuel line clamp pliers (A) allow you to effectively
remove and install the Honda fuel line clamps.
Available from the Parts Division through normal
ordering procedures.
The OETIKER clamp pincer pliers (B) are
available through the Marine Tool and Equipment
program by calling (888) 424-6857.
If you are unable to properly crimp the band type
clamp provided, use a quality lined stainless steel
fuel hose clamp.
NOTICE
Do not tie the cables together within 300 mm
(11.8 in) of the under-case grommet A. This will
prevent stress flexing near the grommet, which
could cause intermittent power.
BOAT SIDE
The fuel hose is 7.3 mm (5/16 in) and the male
hose barb is stepped to 12 mm (0.4725 in). The
priming bulb hose barbs are 7.3 mm (5/16 in).
Make sure the fuel hose is not pinched or crushed
as it routes to the boat fuel supply. This could
cause an engine malfunction.
FUEL HOSE CLAMP
If the outboard motor fuel hose is going to be
connected directly into the boat fuel tank supply
hose, secure this hose by using a fuel hose clamp
type as listed above. Secure the hose joint so that
it does not bounce and become damaged on a
hard surface.
Item Description Part Number Use
A Fuel line clamp pliers 07APF-ZV4A100
For use on band
clamp
B
OETIKER clamp
pincer pliers
MTP120024
For use on 3/8 in
hose clip
A
B
BAND CLAMP
P/N 17704-ZV4-010
3/8 in HOSE CLIP
P/N 17800-ZY3-010AH
PRIMER
BULB
ARROW
300 mm (11.8 in)
During operation, check for any
fuel or air leaks
and repair immediately. If these connections draw
air, the engine fuel pump will malfunction.
FUEL HOSE CONNECTION
NOTICE
Do not use unlined, worm-type fuel hose clamps.
They may cause leaks by damaging the outside of
the fuel hose.
