IST 18.BF200D - Remote Cable Installation

18-23
18. BF200D • BF225D • BF
250D iST
®
REMOTE CABLE INSTALLATION
LDA • XDA • XCDA • UDA • UCDA Types
NOTE: If you will be routing a NMEA cable,
puncture the rubber membrane, and then cut
the grommet to allow the cable to be inserted.

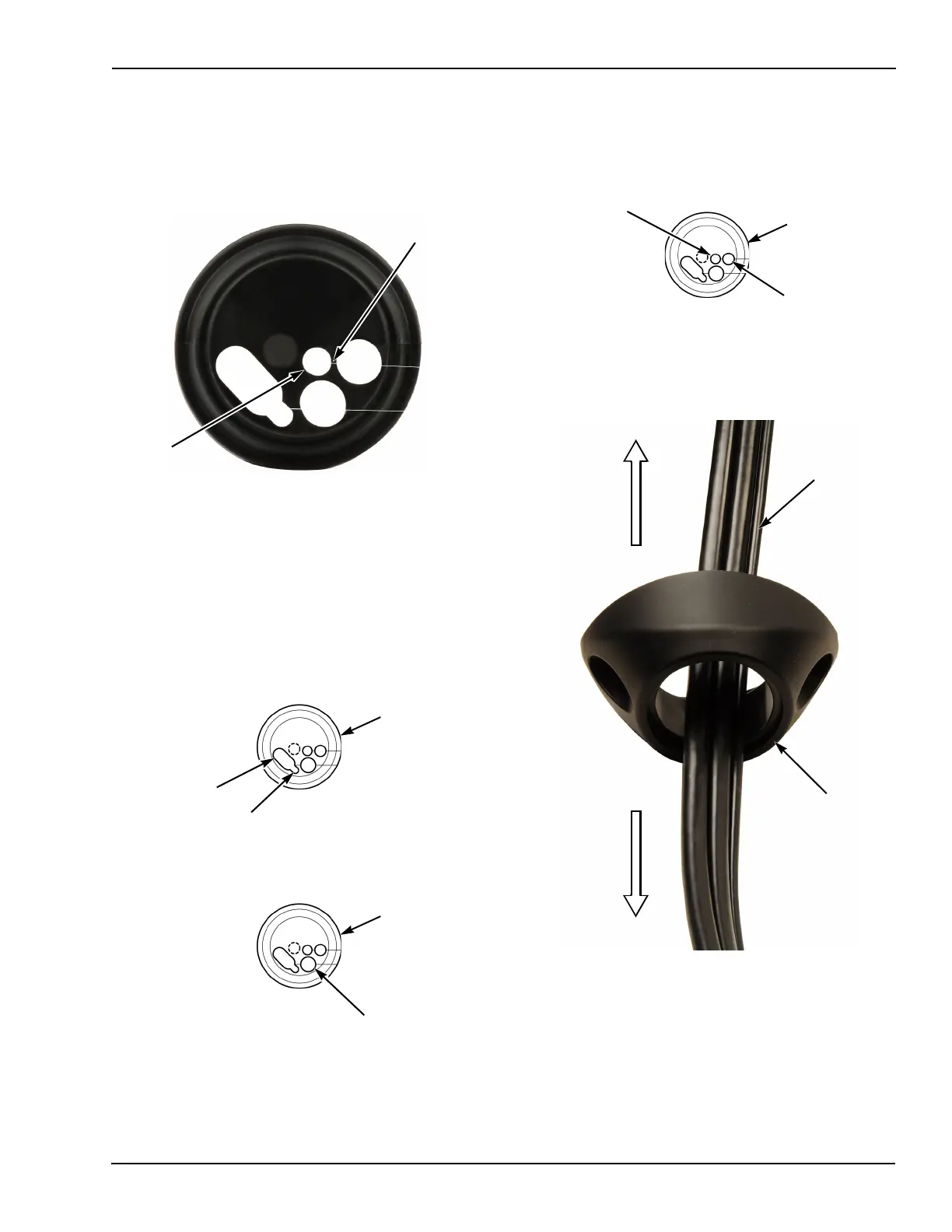

1. Spray the under case grommet with silicone
spray or soapy water.
2. Route the battery cables through the under
case grommet. Ensure the small battery cable
is correctly routed into the small part of the
opening.
Position the battery cable white tape mark so
it aligns with the front edge of the under case
grommet.
3. Route the fuel tube A through the under case
grommet.
4. Route the NMEA interface cable and indicator
cable through the under case grommet.
5. Route the battery cables through the separate
cover.
Do not install the separate cover on the
engine under case.
Cut here
NMEA
INTERFACE
CABLE
BATTERY
CABLE
SMALL BATTERY CABLE
UNDER
CASE
GROMMET
FUEL TUBE A
UNDER
CASE
GROMMET
PANEL
INDICATOR
CABLE
UNDER
CASE
GROMMET
NMEA
INT
ERFACE
CABLE
To engine
BATTERY
CABLES
To boat
SEPARATE
COVER
