IST 18.BF200D - Battery Connections

18-51
18. BF200D • BF225D • BF
250D iST
®

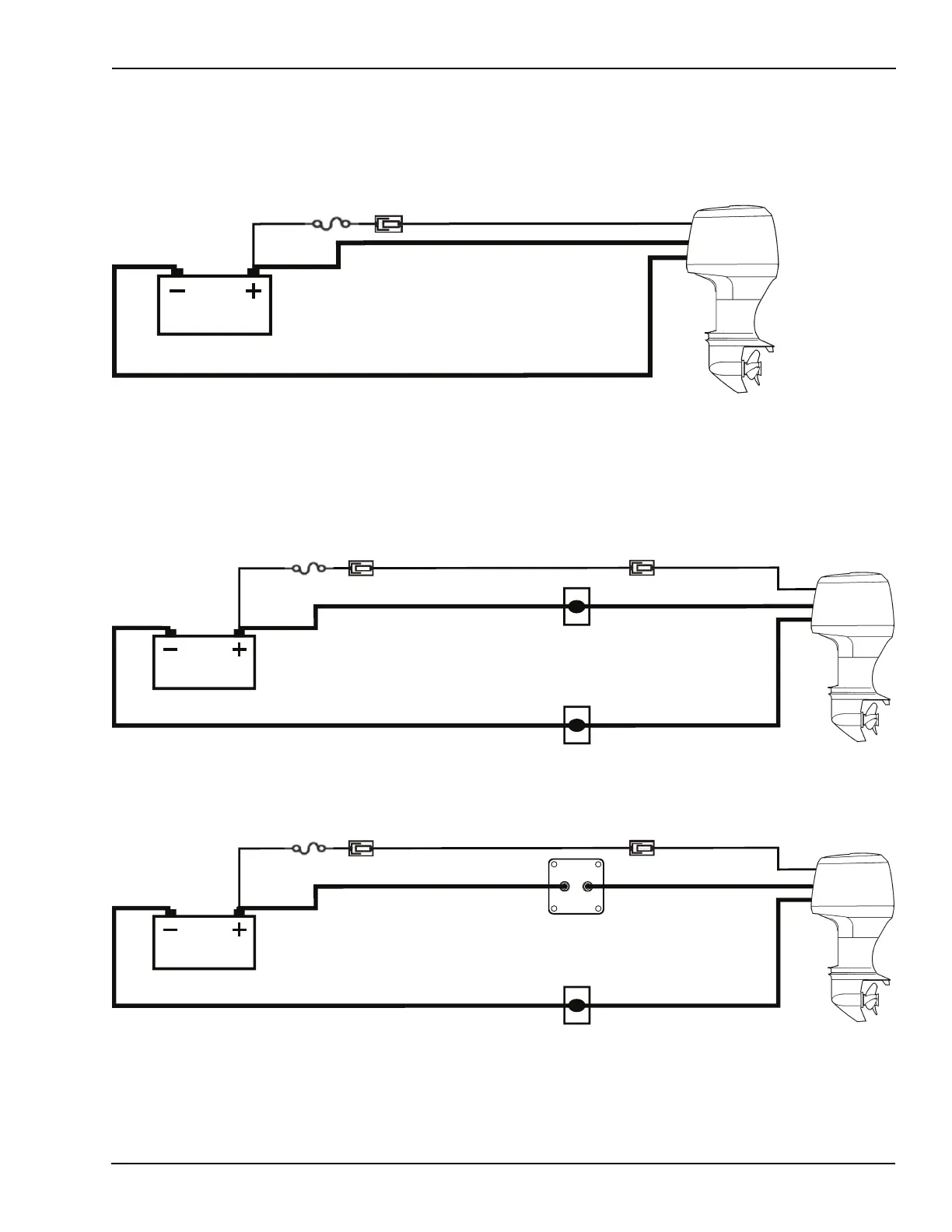

BATTERY CONNECTIONS
BF200D • BF225D • BF250D
Standard Installation
NOTE: If the standard battery cables will not reach the battery, install extensions cables. To determine
the length of cable extension needed to reach the battery (one way), see page 2-11.
Only use American Wire Gauge (AWG) copper stranded wire intended for marine electrical use.
With Battery Cable Extensions
With Battery Cable Extensions and Battery Switch
_
+
2 AWG
2 AWG
_
+
+
+
10 AWG
40-Amp
Fuse
2 AWG
2 AWG
_
+
+
10 AWG
40-Amp
Fuse
Power Extension Cable (P/N 31576-ZVL-000)
_
+
+
Extension Cable (commercially available)
Extension Cable (commercially available)
Battery Distribution
Stud
2 AWG
2 AWG
_
+
+
10 AWG
40-Amp
Fuse
Power Extension Cable (P/N 31576-ZVL-000)
_
+
+
Extension Cable (commercially available)
Extension Cable (commercially available)
Battery Switch
