IST 18.BF200D - Page 37

18-37
18. BF200D • BF225D • BF
250D iST
®

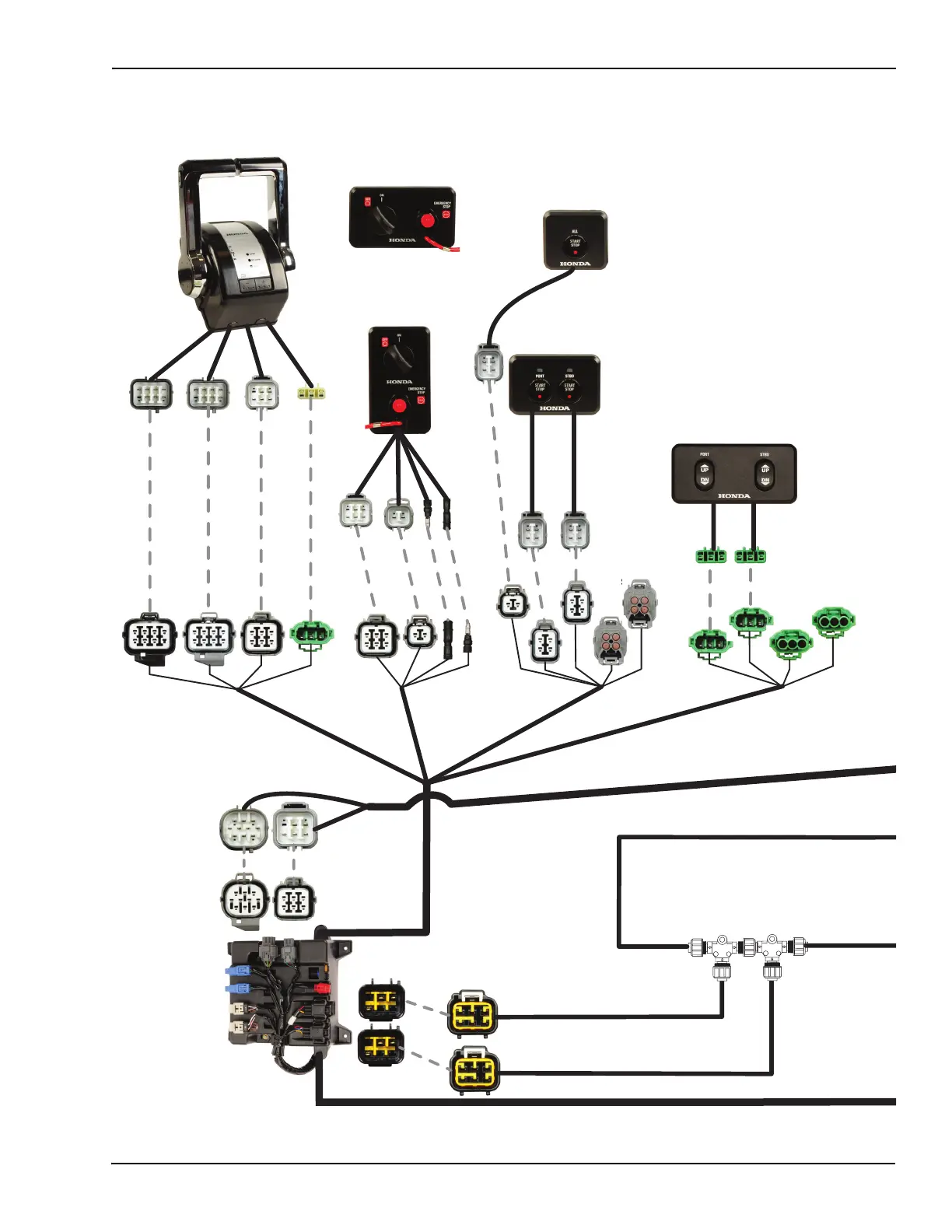

TWIN ENGINE, TOP-MOUNT CONTROL, TWO CONTROL STATIONS
Push-Button Start - Twin
06324-ZVL-700
Power Trim/Tilt - Twin
06325-ZVL-000
Remote Control Kit - Top-Mount Multi
06240-ZVL-701
Key Switch Panel Kit
06323-ZVL-710
Key Switch Panel Kit
06323-ZVL-700
OR
1
2
3
4
1
2
3
4
P
S
P
S
Push-Button Start - All
06324-ZVL-000
AND/OR
Main
Control Case
(part of kit)
See chapter 16 NMEA Instrumentation
for adding devices.
Interface Cable Kit (2)
06653-ZZ3-730HE 10-ft
4
4
Trunk Cable
32580-ZVL-600 18-ft
32580-ZVL-700 24-ft
32580 ZVL-800 30-ft
3
NOTE: Remove the terminator from the main control case and replace with
the dummy coupler provided in the second station kit (see page 18-50).
