SIEMENS KTP400 touch-screen screen
Test

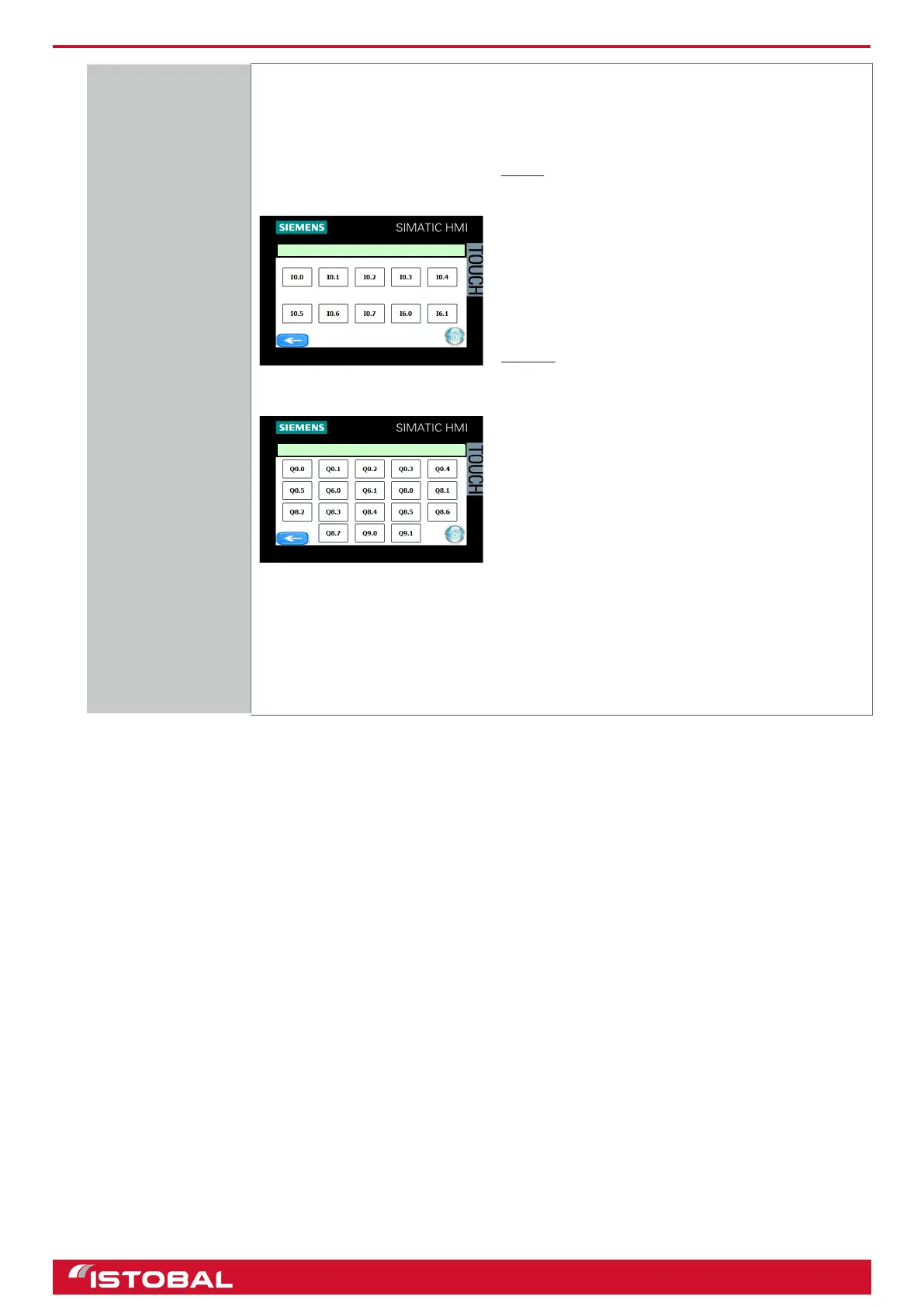

INPUTS
OUTPUTS
This allows you to run operating tests on the
following parts:
Inputs
I0.0=No water
I0.1=Pump overload bay 1
I0.2=Door open
I0.3=Maximum pressure
I0.4=Boiler thermostat
I0.5=Coin box open
I0.6=Thermostat 1
I0.7=Thermostat 2
I0.4=Send email
Outputs
Q0.0=Gun solenoid valve
Q0.1=Brush solenoid valve
Q0.2=Hot water solenoid valve
Q0.3=Water mains solenoid valve
Q0.4=By-pass
Q0.5=Frost prevention solenoid valve
Q8.0=Wax dosing pump
Q8.1=Shampoo dosing pump
Q8.2=Foam dispenser 1
Q8.3=Foam dispenser 2
Q8.4=Foam dispenser 3
Q8.5=Pump start
Q8.6=Boiler start
Q8.7=Compressor start
Q9.0=Heater start
Q9.1=External alarm signal
